VW6-HDG6 ACT HD/Race Sprung 6 Pad in the group Select car model / VW / Jetta 4 99-06 / Tuning / Clutch and Flywheel at DDESIGN Scandinavia AB (actVW6-HDG6)

Horsepower

Newton meter

VW6-HDG6 ACT HD/Race Sprung 6 Pad

Name: VW6-HDG6 ACT HD/Race Sprung 6 Pad
Brand: ACT Advanced Clutch Technology
SKU: actVW6-HDG6
Price: 2190 EUR
Availability: InStock

Article nr:

actVW6-HDG6

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

2190 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
VW6-HDG6 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:

Flywheel Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 240 MM
Clutch Disc Diameter: 9.4 IN
Disc Material: Ceramic
Input Spline Quantity: 23
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Flywheel Type: Streetlite
Part Fitment Requirement: Conversion Kit. Must use ACT Flywheel (included in kit).
Product Weight (lbs.): 30.2
Title: ACT HD/Race Sprung 6 Pad
Torque Capacity (ft/lbs.): 525
Torque Capacity Over OE: 73%

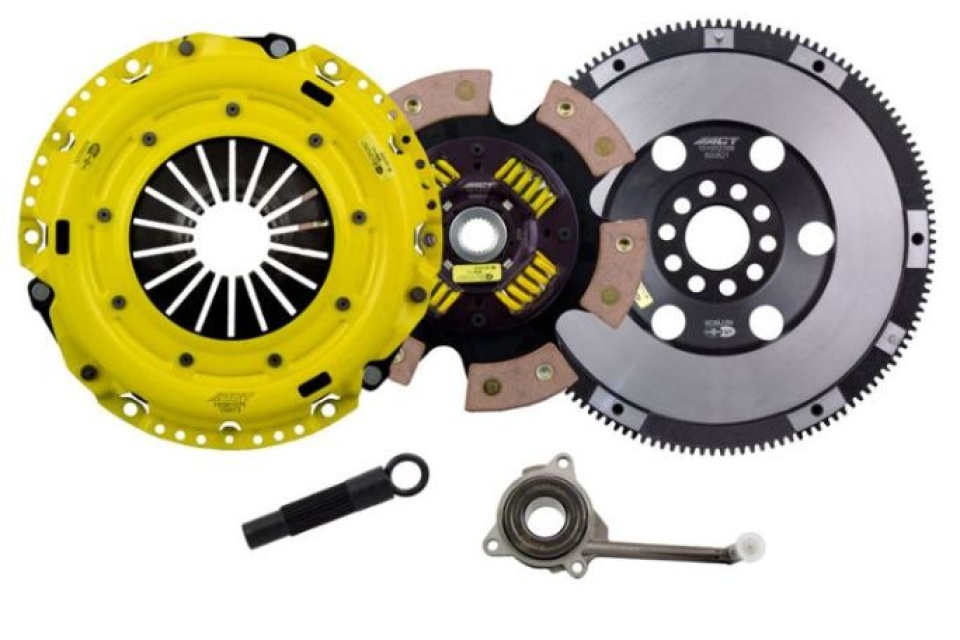

Kit includes:

600821 ACT XACT Flywheel Streetlite
6240527 ACT 6 Pad Sprung Race Disc
AT126 ACT Alignment Tool
RB3743A ACT Release Bearing
VW013 ACT Heavy Duty Pressure Plate

Kitet passar:

Seat Leon 1M1 2001 2.8L V6 150kw. 204hp
Seat Leon 1M1 2002 2.8L V6 150kw. 204hp
Seat Leon 1M1 2003 2.8L V6 150kw. 204hp
Seat Leon 1M1 2004 2.8L V6 150kw. 204hp
Seat Leon 1M1 2005 2.8L V6 150kw. 204hp
Seat Leon 1M1 2006 2.8L V6 150kw. 204hp
Seat Leon Cupra 4 1M1 2002 2.8L V6 150kw. 204hp
Seat Leon Cupra 4 1M1 2003 2.8L V6 150kw. 204hp
Seat Leon Cupra 4 1M1 2004 2.8L V6 150kw. 204hp
Volkswagen Golf IV 1J1 Including 4Motion 2.3L V5 125kw. 170hp
Volkswagen Golf IV GTI - 6 Speed 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2.3L V5 110kw. 150hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2.3L V5 110kw. 150hp
Volkswagen Bora IV 1J2 1998-2005 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2.8L V6 150kw. 204hp
Product video

Technical specification

Article nr:
actVW6-HDG6

Manufacture Partnumber: VW6-HDG6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
