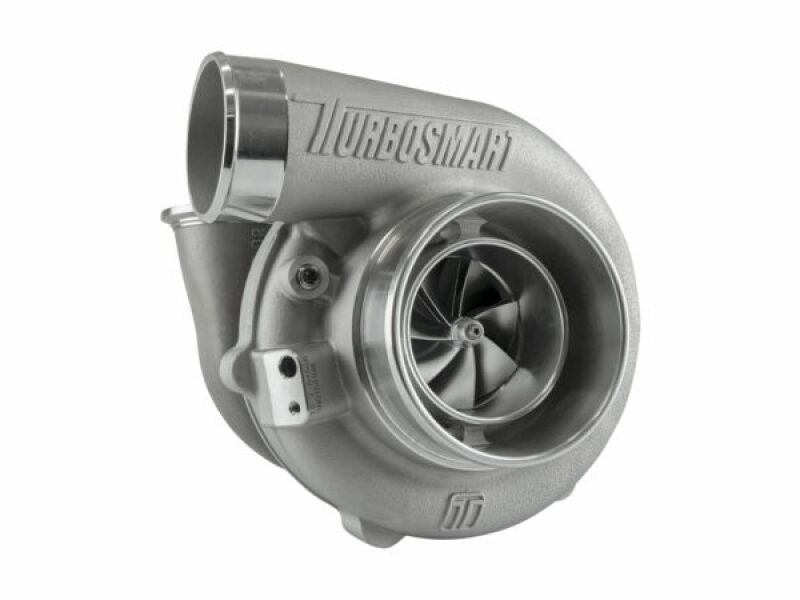

Turbosmart TS-2 Turbo 6466 V-Band - Water-Cooled, Reverse Rotation, 0.82 A/R

Name: TS-2 Turbocharger (Water Cooled) 6466 V-Band Reverse Rotation 0.82AR Externally Wastegated
Brand: Turbosmart
SKU: TS-2-6466B-VR082E
Price: 3167 EUR
Availability: InStock

The Turbosmart TS-2 6466 is a high-performance turbocharger developed for motorsport and power-focused engine builds. Featuring advanced compressor aerodynamics, low rotating mass and a dual ceramic ball-bearing system, it delivers quick response and efficient boost build-up.

The turbocharger is both oil- and water-cooled, with a lightweight stainless steel turbine housing and an aluminium compressor housing. The reverse rotation provides additional installation options, while the V-band connections simplify installation. With a turbine A/R of 0.82 and support for an external wastegate, it is designed for applications where high airflow and high power output are priorities.

Features and Benefits

Fast response: Low rotating mass and an optimised bearing and shaft assembly.
Dual ceramic ball-bearing system: Designed for quick response and high performance.
Oil and water cooling: Helps provide effective temperature management.
Aluminium compressor wheel: Advanced 7+7-blade splitter design made from 2618 aluminium.
Inconel 713C turbine wheel: Engineered to withstand high exhaust gas temperatures.
Lightweight construction: 310S stainless steel turbine housing and aluminium compressor housing.
Reverse rotation: Designed for installations requiring the opposite rotation direction.
External wastegate: Allows independent boost pressure control.
VSR balanced: High-speed balanced for reliable operation.

Technical Specifications

Manufacturer: Turbosmart
Model: TS-2 6466
Part number: TS-2-6466B-VR082E
Cooling: Oil- and water-cooled
Compressor inducer diameter: 64 mm
Turbine exducer diameter: 66 mm
Turbine housing A/R: 0.82
Turbine inlet: 2.25-inch V-band
Turbine outlet: 3.00-inch V-band
Compressor inlet: 4 inches (101.6 mm)
Wastegate: External
Rotation: Reverse
Weight: Approximately 6.06 kg
Specified power capacity: 825–955 hp

Included Items

1 × Turbosmart TS-2 turbocharger
2 × turbine inlet and outlet weld flanges
2 × turbine inlet and outlet V-band clamps
1 × oil drain gasket
1 × water line fitting kit

Product video

Technical specification

Article nr:

TS-2-6466B-VR082E

Manufacture Partnumber:

TS-2-6466B-VR082E

Turbosmart was founded in Sydney, Australia, in 1997. At the time they only had 2 products but quickly became known in the car industry for their incredible quality and durability.

Today Turbosmart's products are sold in more than 50 countries around the world and is found in several record-breaking cars. The successes and tests of these cars on and off the track, Turbosmart has taken part in their development of products. This means that Turbosmart's products never stop developing, they make constant updates to get the absolute best results. The assortment offers wastegates, blow-off valves, boost controllers and gauges etc.
