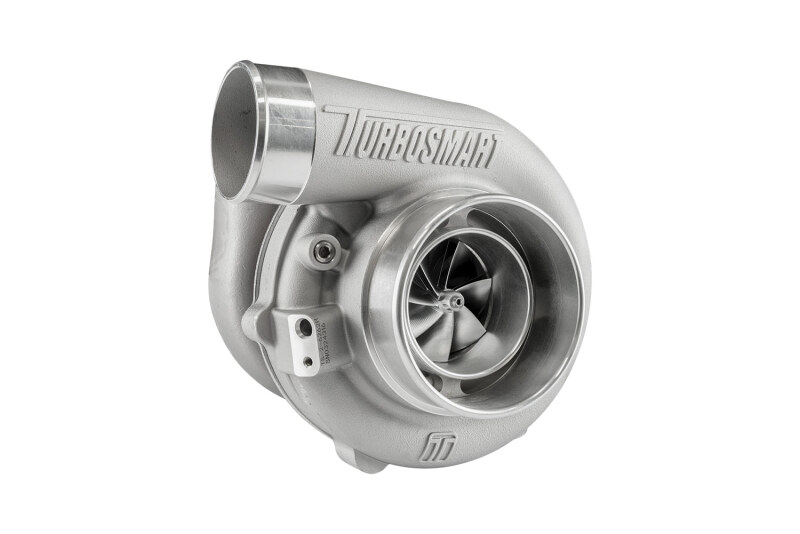

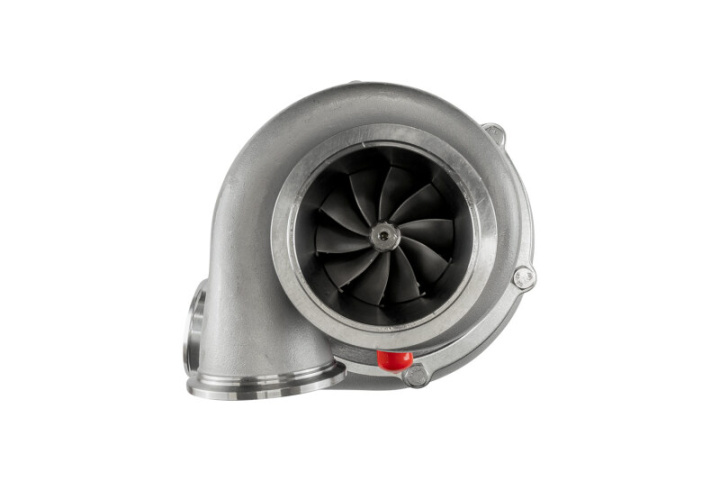

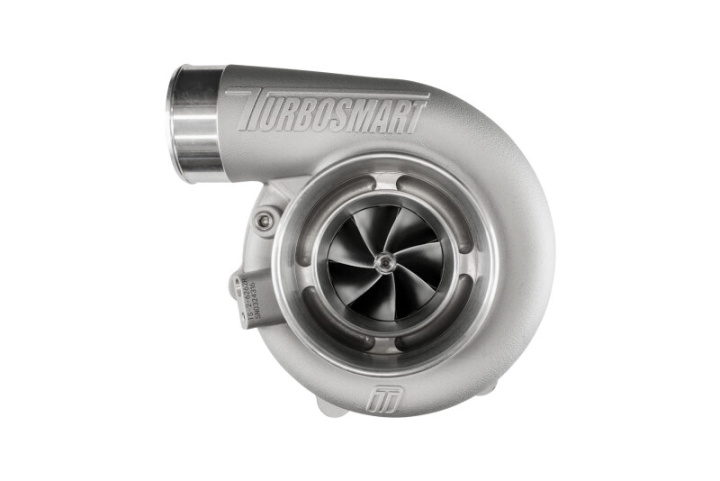

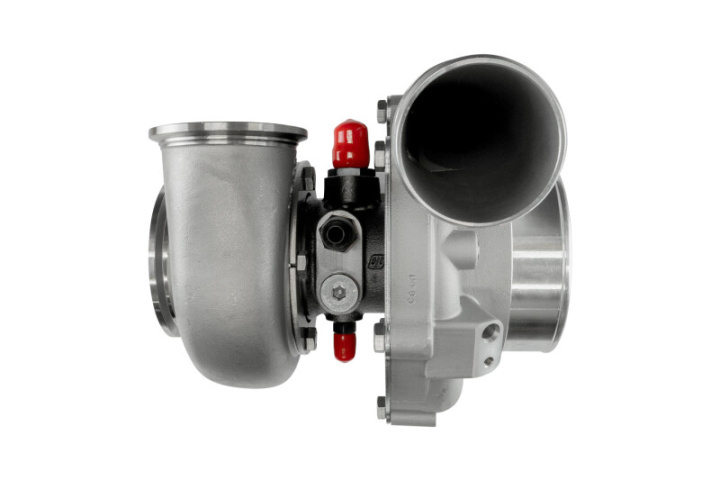

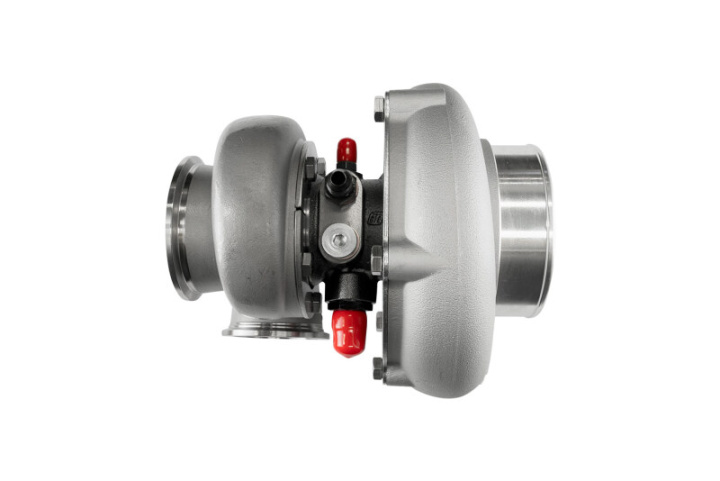

Turbosmart TS-2 Turbo 6262 V-Band - Water-Cooled, Reverse Rotation, 0.82 A/R
The Turbosmart TS-2 6262 is a high-performance turbocharger designed for motorsport and performance-focused engine builds. It combines low rotating mass, advanced compressor aerodynamics and a dual ceramic ball-bearing system for quick response and efficient boost build-up.
The turbocharger is both oil- and water-cooled and features a lightweight turbine housing made from cast stainless steel. The reverse rotation provides additional installation options, while the V-band connections allow for straightforward and secure installation. With a turbine A/R of 0.82 and support for an external wastegate, it is suitable for power-focused applications where flow and performance are essential.
Features and Benefits
Fast response: Low rotating mass and an advanced bearing and shaft system.
Dual ceramic ball-bearing system: Designed for high performance and quick response.
Oil and water cooling: Helps manage operating temperatures.
Aluminium compressor wheel: 7+7-blade design made from 2618 aluminium.
Inconel 713C turbine wheel: Designed to withstand high exhaust gas temperatures.
Lightweight construction: 310S stainless steel turbine housing and aluminium compressor housing.
Reverse rotation: Suitable for installations where rotation direction is a key consideration.
External wastegate: Allows separate boost pressure control.
Technical Specifications
Model: Turbosmart TS-2 6262
Part number: TS-2-6262B-VR082E
Cooling: Oil- and water-cooled
Compressor inducer diameter: 62 mm
Turbine exducer diameter: 62 mm
Turbine housing A/R: 0.82
Turbine inlet: 2.25-inch V-band
Turbine outlet: 3.00-inch V-band
Compressor inlet: 4 inches (101.6 mm)
Wastegate: External
Rotation: Reverse
Weight: Approximately 6.06 kg
Specified power capacity: 760–880 hp
Included Items
1 × Turbosmart TS-2 turbocharger
2 × turbine inlet and outlet weld flanges
2 × turbine inlet and outlet V-band clamps
1 × oil drain gasket
1 × water line fitting kit
