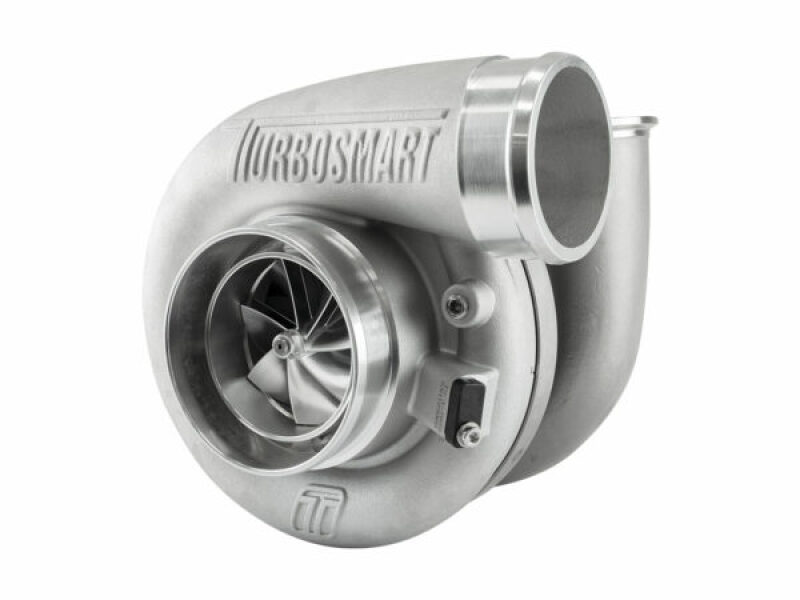

Turbosmart TS-1 Turbo 7675 V-Band 1.24 A/R - Externally Wastegated

The Turbosmart TS-1 7675 is a high-performance turbocharger designed for motorsport applications and advanced performance builds where high power output, fast response and reliability are essential. The TS-1 series combines modern aerodynamics, advanced materials and precision-engineered construction to deliver exceptional performance, reduced rotating mass and efficient gas flow.

The turbocharger features a compressor wheel with a 76 mm inducer and a turbine wheel with a 75 mm exducer. The advanced compressor design, featuring 7+7 splitter blades manufactured from 2618 aluminium, provides efficient compression and high airflow. The optimised turbine section helps maintain high flow capacity and excellent performance under demanding conditions.

The turbine housing is manufactured from lightweight cast 310S stainless steel, while the heat-resistant Inconel 713C turbine wheel is engineered to withstand extremely high exhaust gas temperatures. The oil-cooled bearing housing, equipped with Turbosmart's proprietary dual ceramic ball bearing system, contributes to reduced rotating mass, fast transient response and reliable operation.

This version features a 1.24 A/R turbine housing and V-band connections for both the turbine inlet and outlet. The configuration is designed for external wastegate operation and is ideal for high-performance engine builds where high exhaust flow and precise boost control are priorities.

Features:

• High-performance turbocharger from the Turbosmart TS-1 series

• 76 mm compressor inducer and 75 mm turbine exducer

• Compressor wheel with 7+7 splitter blades manufactured from 2618 aluminium

• Turbine housing made from lightweight cast 310S stainless steel

• Heat-resistant Inconel 713C turbine wheel

• Oil-cooled bearing housing with dual ceramic ball bearings

• 1.24 A/R turbine housing

• V-band connections for turbine inlet and outlet

• Designed for external wastegate operation

• VSR speed-balanced

• Engineered for fast response and high power output

Technical Specifications:

• Compressor inlet: 101.6 mm (4")

• Compressor inducer: 76 mm

• Turbine inlet: 3" V-band

• Turbine exducer: 75 mm

• Turbine A/R: 1.24

• Turbine outlet: 3.5" V-band

• Weight: Approximately 9.63 kg

• Manufacturer-rated power range: 1,100–1,290 hp

Included:

• Turbosmart TS-1 turbocharger

• 2 turbine inlet and outlet weld flanges

• 2 V-band clamps for turbine inlet and outlet

• Oil drain gasket
