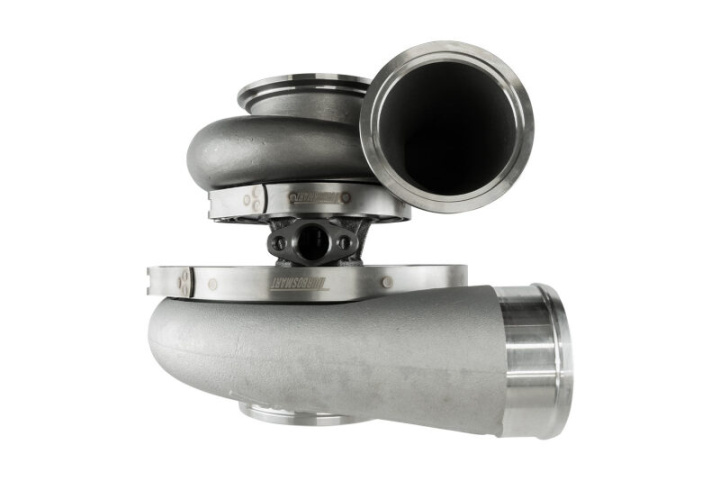

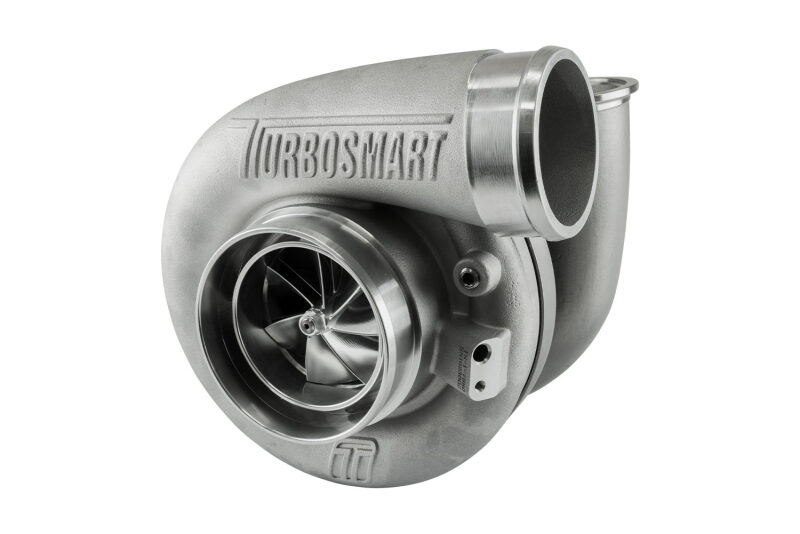

Turbosmart TS-1 Turbo 7675 V-Band 0.96 A/R - Externally Wastegated
The Turbosmart TS-1 7675 is a high-performance turbocharger designed for motorsport applications and advanced performance builds where high power output, fast response and reliability are essential. The TS-1 series combines modern aerodynamics, advanced materials and precision-engineered construction to deliver exceptional performance, reduced rotating mass and efficient gas flow.

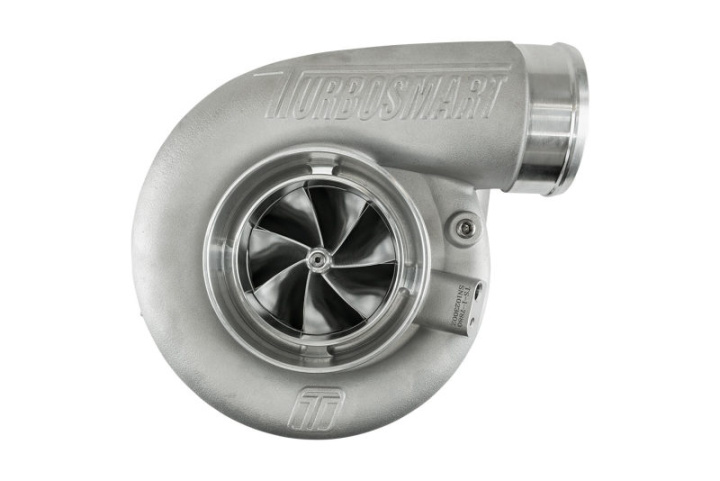

The turbocharger features a compressor wheel with a 76 mm inducer and a turbine wheel with a 75 mm exducer. The advanced compressor design, featuring 7+7 splitter blades manufactured from 2618 aluminium, provides efficient compression and high airflow, while the optimised turbine section contributes to excellent performance under demanding conditions.

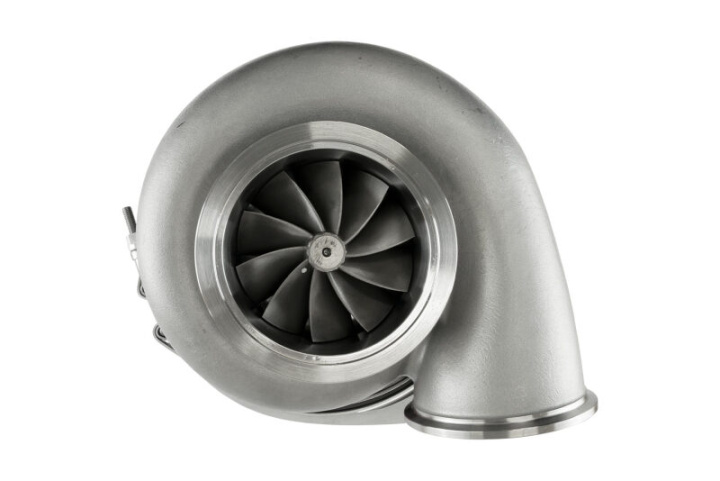

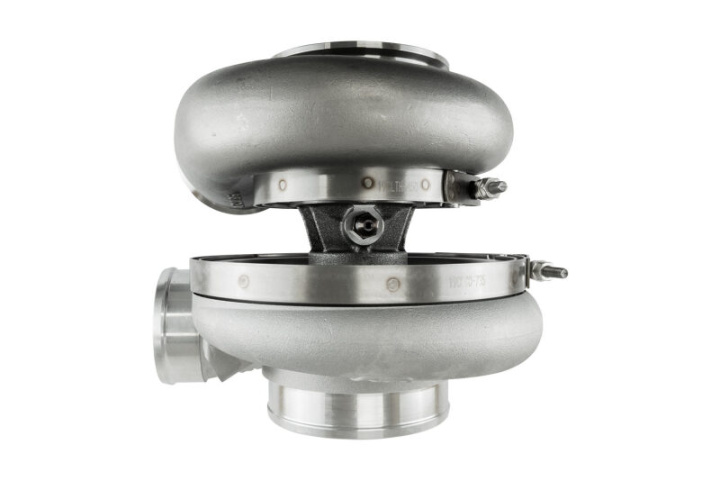

The turbine housing is manufactured from lightweight cast 310S stainless steel, while the heat-resistant Inconel 713C turbine wheel is designed to withstand extremely high exhaust gas temperatures. The oil-cooled bearing housing, equipped with Turbosmart's proprietary dual ceramic ball bearing system, contributes to reduced rotating mass, fast transient response and reliable operation.
With a 0.96 A/R turbine housing and V-band connections for both the inlet and outlet, this model is designed for external wastegate operation. It is ideal for high-performance engine builds where high flow capacity, precise boost control and substantial power potential are priorities.
Features:
High-performance turbocharger from the Turbosmart TS-1 series
76 mm compressor inducer and 75 mm turbine exducer
Compressor wheel with 7+7 splitter blades manufactured from 2618 aluminium
Turbine housing made from lightweight cast 310S stainless steel
Heat-resistant Inconel 713C turbine wheel
Oil-cooled bearing housing with dual ceramic ball bearings
0.96 A/R turbine housing
V-band connections for turbine inlet and outlet
Designed for external wastegate operation
VSR speed-balanced
Engineered for fast response and high power output
Technical Specifications:
Compressor inlet: 101.6 mm (4")
Compressor inducer: 76 mm
Turbine inlet: 3" V-band
Turbine exducer: 75 mm
Turbine A/R: 0.96
Turbine outlet: 3.5" V-band
Weight: Approximately 9.63 kg
Manufacturer-rated power range: 1,100–1,290 hp

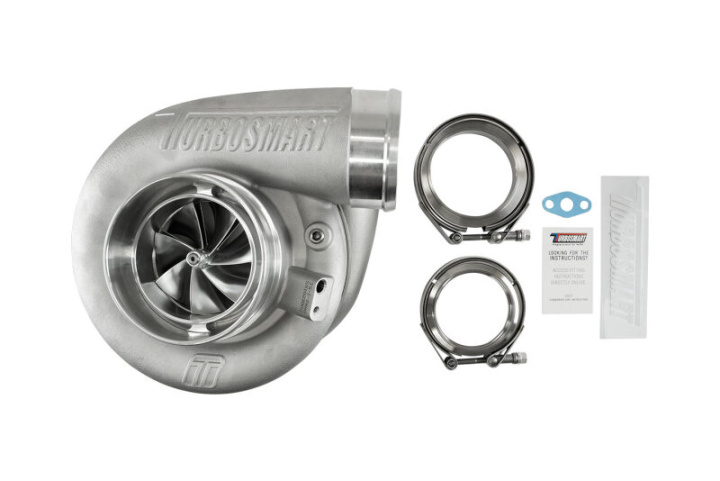

Included:
Turbosmart TS-1 turbocharger
2 turbine inlet and outlet weld flanges
2 V-band clamps for turbine inlet and outlet
Oil drain gasket
