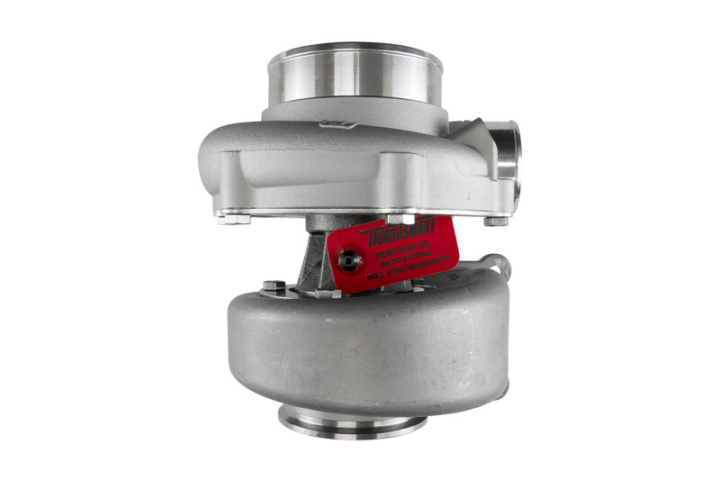

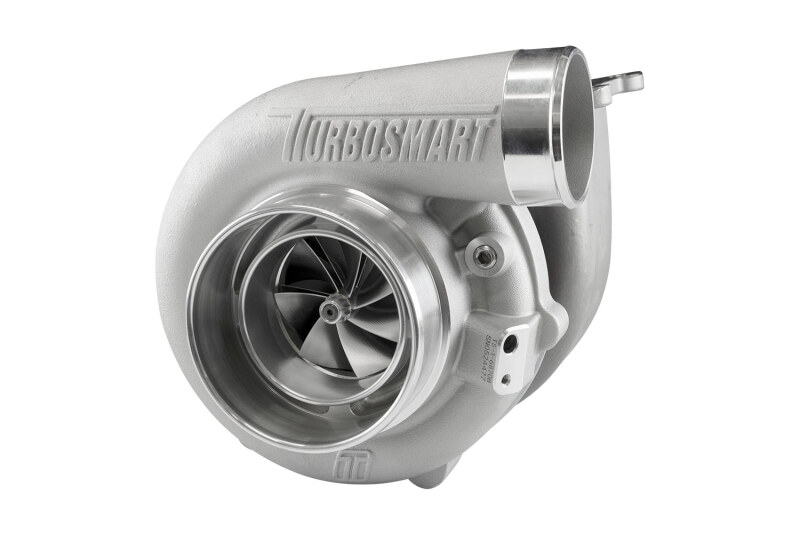

Turbosmart TS-1 Turbo 6870 (Kompact) T4 Divided - 1.00 A/R for External Wastegate

The Turbosmart TS-1 6870 Kompact is a high-performance turbocharger developed for motorsport and advanced performance builds. It combines modern engineering, advanced materials and lightweight construction to deliver quick response, efficient airflow and high power potential.

The TS-1 series is oil-cooled and features a dual ceramic ball-bearing system and a specially developed bearing and shaft assembly with low rotating mass. Combined with the advanced compressor design, this helps deliver rapid boost build-up and strong performance, even at lower turbo speeds.

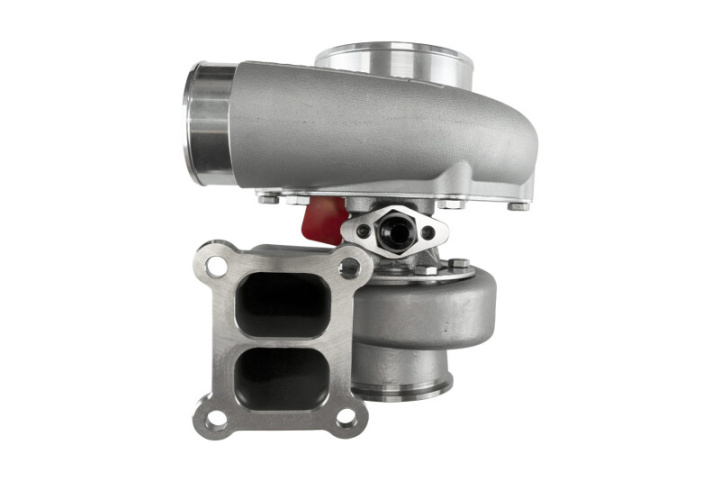

This Kompact version features a divided T4 turbine inlet, which separates exhaust pulses from different cylinder groups up to the turbine wheel. It is designed for exhaust manifolds with divided exhaust flow and can contribute to more efficient turbine operation when the system is properly designed. The turbocharger features a 1.00 A/R turbine housing and is designed for use with an external wastegate.

Features and Benefits

• Fast response: Low rotating mass for quicker boost build-up.

• Dual ceramic ball-bearing system: Designed for high performance and responsiveness.

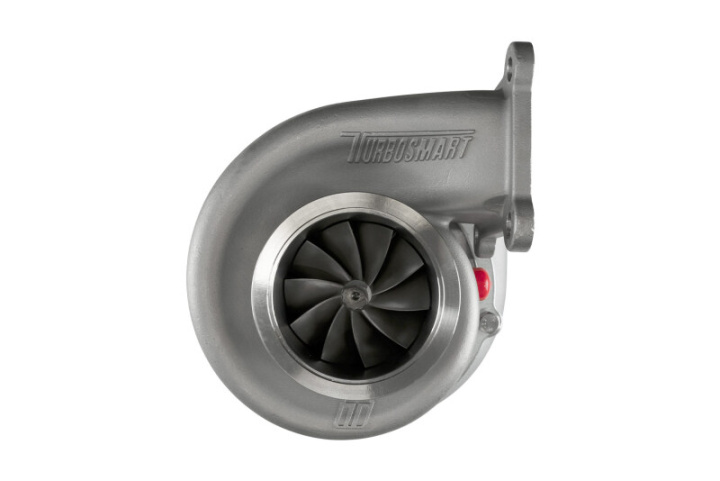

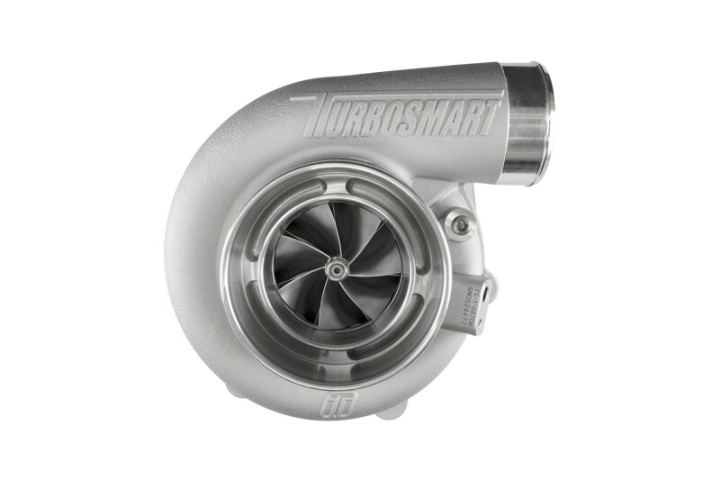

• Advanced compressor wheel: 7+7-blade splitter design made from 2618 aluminium.

• Inconel 713C turbine wheel: Engineered to withstand high exhaust gas temperatures.

• Lightweight turbine housing: Precision-cast housing made from 310S stainless steel.

• Aluminium compressor housing: Helps reduce overall weight.

• CFD-optimised design: Engineered for efficient flow and optimised A/R geometry.

• Divided T4 inlet: Designed for exhaust manifolds with separated exhaust pulses.

• External wastegate: Allows independent boost pressure control.

• VSR balanced: High-speed balanced for reliable operation.

Technical Specifications

• Manufacturer: Turbosmart

• Model: TS-1 6870 Kompact

• Part number: TS-1-6870B-D4100E

• Cooling: Oil-cooled

• Compressor inducer diameter: 68 mm

• Turbine exducer diameter: 70 mm

• Turbine housing A/R: 1.00

• Turbine inlet: T4 Divided

• Turbine outlet: 3-inch V-band

• Compressor inlet: 4 inches (101.6 mm)

• Wastegate: External

• Weight: Approximately 6.86 kg

• Specified power capacity: 850–990 hp

Included Items

• 1 × Turbosmart TS-1 6870 turbocharger

• 1 × turbine outlet weld flange

• 1 × turbine outlet V-band clamp

• 1 × oil drain gasket
