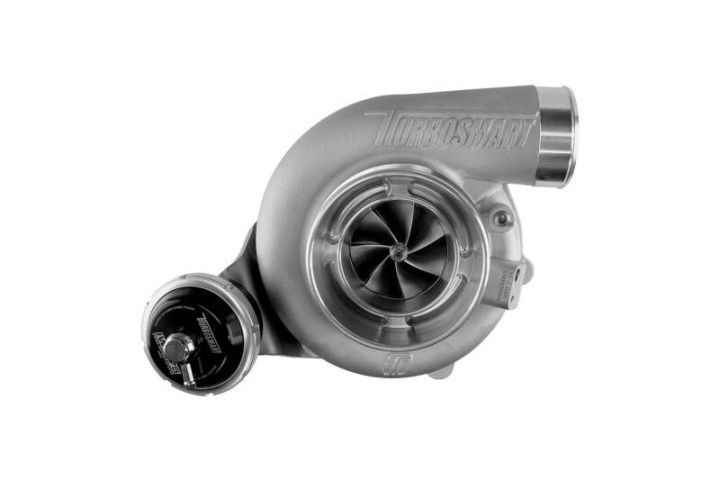

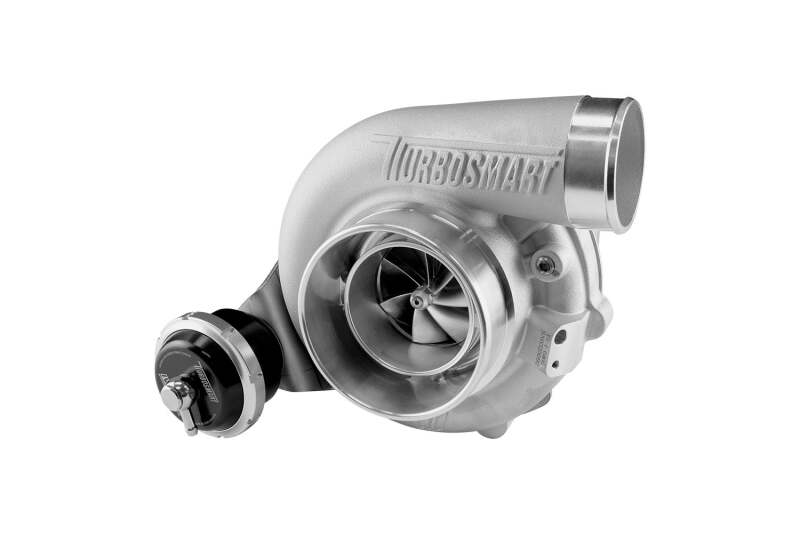

Turbosmart TS-1 Turbo 6466 V-Band - 0.82 A/R with Internal Wastegate (14 PSI)
The Turbosmart TS-1 6466 is a high-performance turbocharger developed for motorsport and power-focused engine builds. It combines advanced compressor aerodynamics, low rotating mass and a dual ceramic ball-bearing system to deliver quick response and efficient boost build-up.
The TS-1 series is oil-cooled and features a lightweight cast stainless steel turbine housing and an aluminium compressor housing. The advanced bearing and shaft assembly is designed to provide quick response, while the Inconel 713C turbine wheel is engineered to withstand high exhaust gas temperatures.

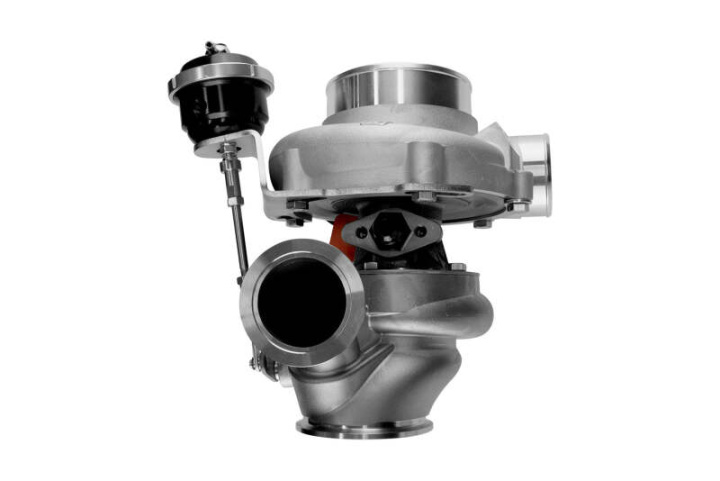

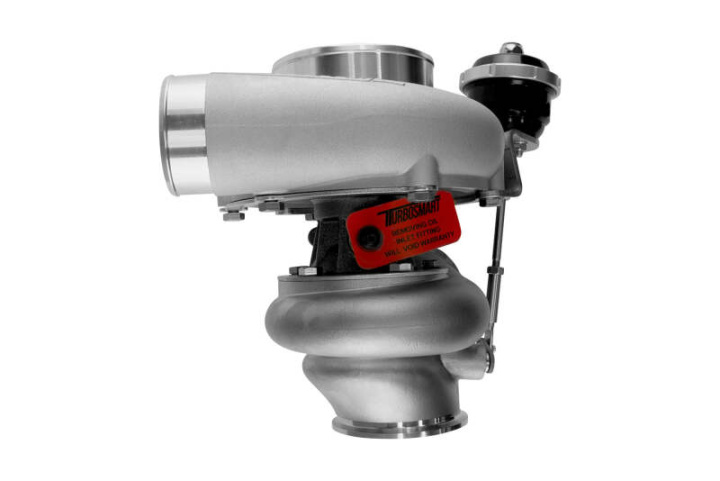

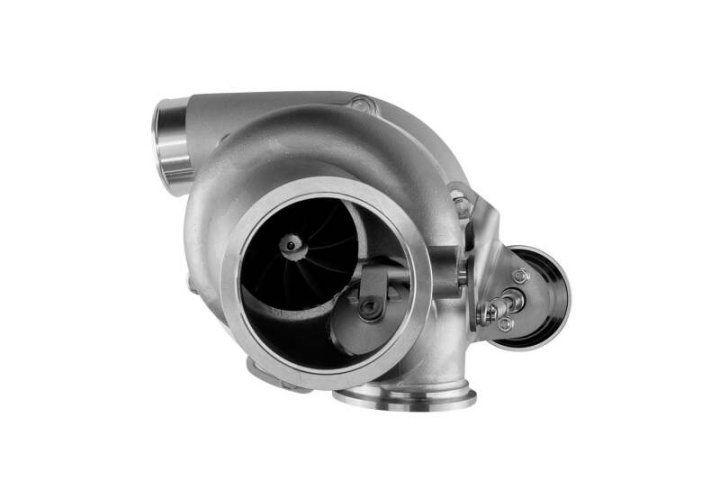

This version features V-band connections, a 0.82 A/R turbine housing and an integrated internal wastegate. The included Turbosmart GenV IWG actuator has a base pressure of 14 PSI, approximately 0.97 bar, providing a convenient boost control solution without the need for a separate external wastegate.
Features and Benefits
Fast response: Low rotating mass for quicker boost build-up.
Dual ceramic ball-bearing system: Designed for high performance and quick response.
Oil cooling: Engineered for effective oil circulation and cooling.
Aluminium compressor wheel: 7+7-blade splitter design made from 2618 aluminium.
Inconel 713C turbine wheel: Designed to withstand high exhaust gas temperatures.
Lightweight construction: 310S stainless steel turbine housing and aluminium compressor housing.
CFD-optimised turbine housing: Designed for efficient gas flow.
Internal wastegate: Integrated solution for boost pressure control.
14 PSI wastegate actuator: Turbosmart GenV IWG actuator included.
VSR balanced: High-speed balanced for reliable operation.
Technical Specifications
Manufacturer: Turbosmart
Model: TS-1 6466
Part number: TS-1-6466B-VB082I
Cooling: Oil-cooled
Compressor inducer diameter: 64 mm
Turbine exducer diameter: 66 mm
Turbine housing A/R: 0.82
Turbine inlet: 2.25-inch V-band
Turbine outlet: 3-inch V-band
Compressor inlet: 4 inches (101.6 mm)
Wastegate: Internal
Wastegate actuator base pressure: 14 PSI (approximately 0.97 bar)
Weight: Approximately 6.06 kg
Specified power capacity: 825–955 hp

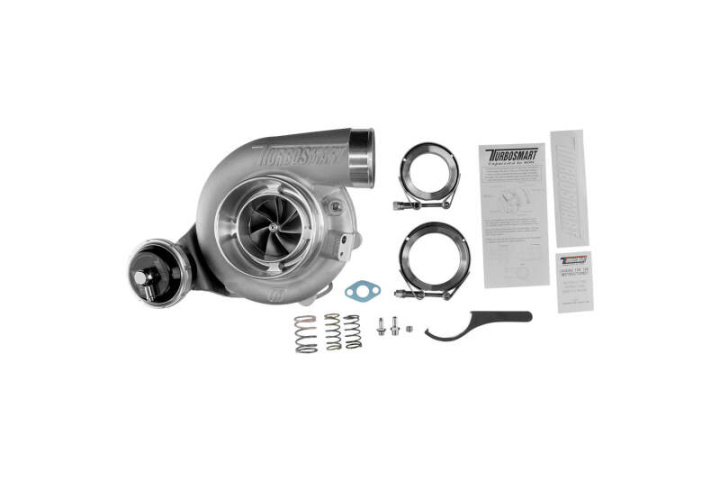

Included Items
1 × Turbosmart TS-1 6466 turbocharger
1 × internal wastegate mounting bracket
1 × Turbosmart GenV IWG actuator (14 PSI)
2 × turbine inlet and outlet weld flanges
2 × turbine inlet and outlet V-band clamps
1 × oil drain gasket
