TC3-HDG4 ACT HD/Race Sprung 4 Pad Kit in the group Select car model / Toyota / Older models & Engines at DDESIGN Scandinavia AB (actTC3-HDG4)

Horsepower

Newton meter

TC3-HDG4 ACT HD/Race Sprung 4 Pad Kit

Name: TC3-HDG4 ACT HD/Race Sprung 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actTC3-HDG4
Price: 665 EUR
Availability: InStock

Article nr:

actTC3-HDG4

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

665 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TC3-HDG4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 8.8 IN
Clutch Disc Diameter: 224 MM
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 1.125 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 14.3
Title: ACT HD/Race Sprung 4 Pad Kit
Torque Capacity (ft/lbs.): 355
Torque Capacity Over OE: 89%

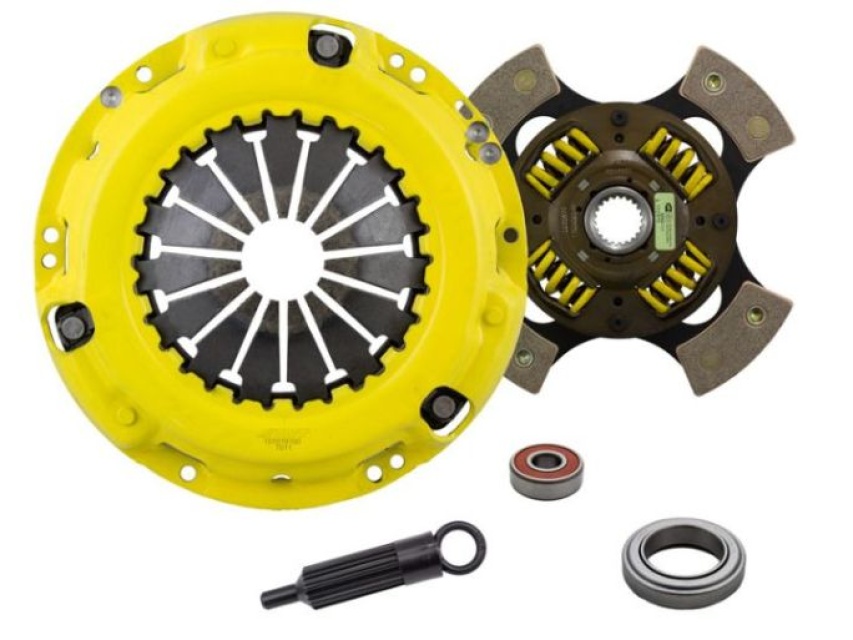

Kit includes:
4224207 ACT 4 Pad Sprung Race Disc
AT11 ACT Alignment Tool
PB1004 ACT Pilot Bearing
RB005 ACT Release Bearing
T011 ACT Heavy Duty Pressure Plate
Kitet passar:
Toyota Crown 21970 to 11971 2.3L L6 2253cc 138 CID
Toyota Crown 21971 to 81972 2.6L L6 2563cc 156 CID
Toyota Celica 91971 to 81977 2.0L L4 1968cc 120 CID
Product video

Technical specification

Article nr:
actTC3-HDG4

Manufacture Partnumber: TC3-HDG4
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
