HP4-HDG4 ACT HD/Race Sprung 4 Pad Kit

Name: HP4-HDG4 ACT HD/Race Sprung 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actHP4-HDG4
Price: 843 EUR
Availability: InStock

Article nr:

actHP4-HDG4

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

843 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
HP4-HDG4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Specifications:
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 8.7 IN
Clutch Disc Diameter: 220 MM
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1.03125 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 12.9
Title: ACT HD/Race Sprung 4 Pad Kit
Torque Capacity (ft/lbs.): 310
Torque Capacity Over OE: 83%

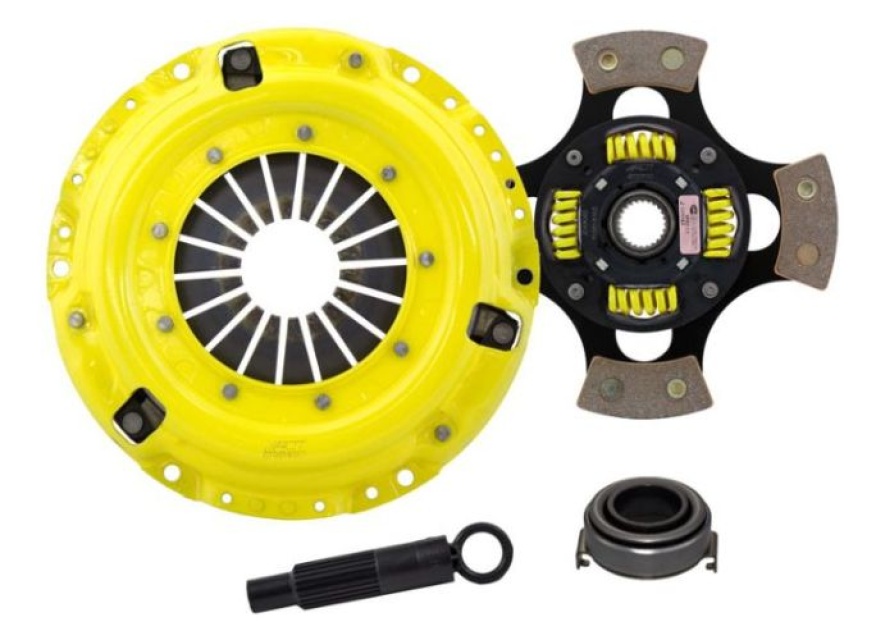

Kit includes:
4220110 ACT 4 Pad Sprung Race Disc
AT58 ACT Alignment Tool
H020 ACT Heavy Duty Pressure Plate
RB817 ACT Release Bearing
Kitet passar:
Honda Prelude 1990-1991 2.0L L4 1958cc
Product video

Technical specification

Article nr:
actHP4-HDG4

Manufacture Partnumber: HP4-HDG4
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
