TC2-XTG6 ACT XT/Race Sprung 6 Pad Kit

Name: TC2-XTG6 ACT XT/Race Sprung 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actTC2-XTG6
Price: 844 EUR
Availability: InStock

Article nr:

actTC2-XTG6

Recommended for high horsepower street or race use. Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

844 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TC2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 212 MM
Clutch Disc Diameter: 8.3 IN
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 13.5
Title: ACT XT/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 400
Torque Capacity Over OE: 122%

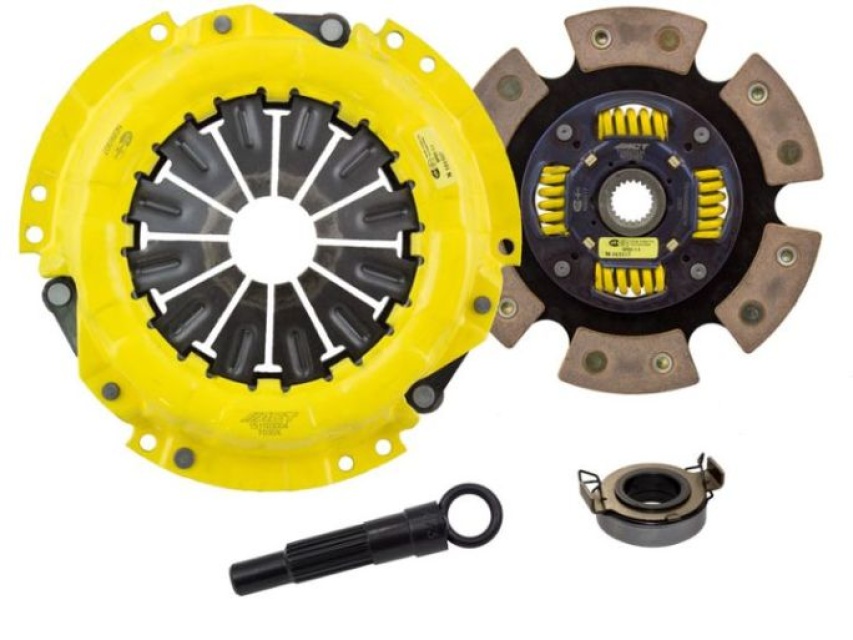

Kit includes:
6212103 ACT 6 Pad Sprung Race Disc
ATK73 ACT Alignment Tool
RB840 ACT Release Bearing
T030X ACT Xtreme Pressure Plate
Kitet passar:
Geo Prizm Base 1992 1.6L L4 1587cc
Geo Prizm Base 1993 1.6L L4 1588cc 98 CID
Geo Prizm Base 1994 1.6L L4 1588cc 98 CID
Geo Prizm Base 1995 1.6L L4 1588cc 98 CID
Geo Prizm Base 1996 1.6L L4 1588cc 98 CID
Geo Prizm Base 1997 1.6L L4 1588cc 98 CID
Geo Prizm GSi 1992 1.6L L4 1587cc
Geo Prizm LSi 1993 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1993 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1994 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1994 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1995 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1995 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1996 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1996 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1997 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1997 1.6L L4 1588cc 98 CID
Pontiac Vibe Base 2003 1.8L L4 1794cc
Pontiac Vibe GT 2003 1.8L L4 1795cc
Toyota Celica 61991 to 81993 ST 1.6L L4 1587cc
Toyota Celica 91993 to 1997 1.8L L4 1762cc
Toyota Celica 2000-2005 GT och GTS 1.8L L4 1794cc
Toyota Corolla 61992 to 2013 1.6L L4 1587cc
Toyota MR-S 2000-2005 1.8L L4 1794cc
Toyota Corolla 61992 to 2013 1.8L L4 1762cc
Pontiac Vibe Base 2004 1.8L L4 1794cc
Pontiac Vibe GT 2004 1.8L L4 1795cc
Pontiac Vibe Base 2005 1.8L L4 1794cc
Pontiac Vibe GT 2005 1.8L L4 1795cc
Pontiac Vibe Base 2006 1.8L L4 1794cc
Pontiac Vibe GT 2006 1.8L L4 1795cc
Pontiac Vibe Base 2007 1.8L L4 1794cc
Pontiac Vibe Base 2008 1.8L L4 1794cc
Geo Prizm LSi 1992 1.6L L4 1587cc
Geo Prizm Base 1991 1.6L L4 1587cc
Geo Prizm GSi 1991 1.6L L4 1587cc
Geo Prizm LSi 1991 1.6L L4 1587cc
Product video

Technical specification

Article nr:
actTC2-XTG6

Manufacture Partnumber: TC2-XTG6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
