TC1-XTR6 ACT XT/Race Rigid 6 Pad Kit in the group Select car model / Toyota / Corolla / Tuning at DDESIGN Scandinavia AB (actTC1-XTR6)

Horsepower

Newton meter

TC1-XTR6 ACT XT/Race Rigid 6 Pad Kit

Name: TC1-XTR6 ACT XT/Race Rigid 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actTC1-XTR6
Price: 800 EUR
Availability: InStock

Article nr:

actTC1-XTR6

Recommended for race use only. Moderate to heavy pedal effort, aggressive engagement, increased gear rattle.

800 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TC1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 8.3 IN
Clutch Disc Diameter: 212 MM
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 12.8
Title: ACT XT/Race Rigid 6 Pad Kit
Torque Capacity (ft/lbs.): 400
Torque Capacity Over OE: 122%

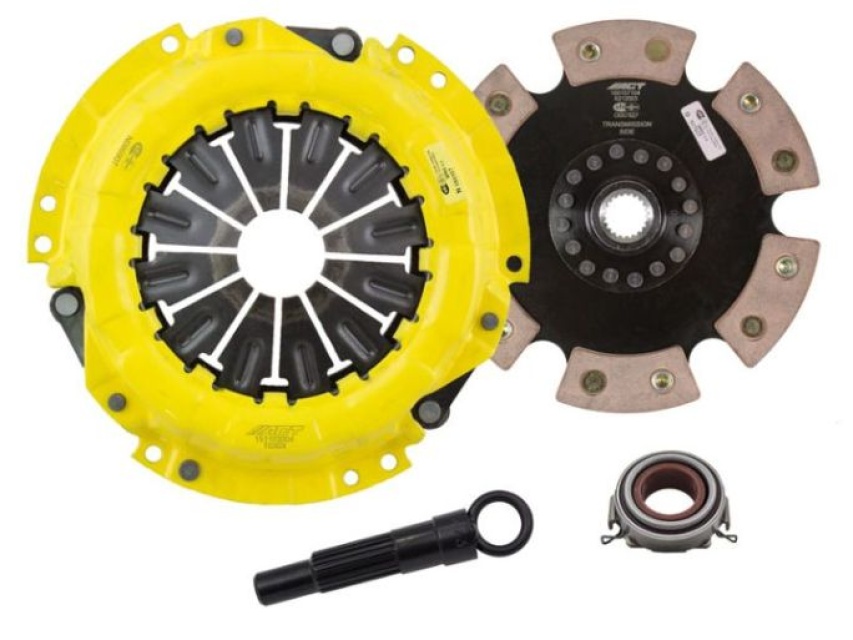

Kit includes:
6212003 ACT 6 Pad Rigid Race Disc
ATK73 ACT Alignment Tool
RB371 ACT Release Bearing
T030X ACT Xtreme Pressure Plate
Kitet passar:
Toyota Corolla 91989 to 61991 GTS 1.6L L4 1587cc
Toyota Celica 91989 to 1991 ST 1.6L L4 1587cc
Toyota Starlet GT-Turbo och Glanza V 1990-1999 1.3L I4 1331cc Turbo
Toyota MR2 061985 to 1989 1.6L L4 1587cc
Geo Prizm GSi 1990 1.6L L4 1587cc
Geo Prizm Base 1990 1.6L L4 1587cc
Geo Prizm Base 1991 1.6L L4 1587cc
Geo Prizm GSi 1991 1.6L L4 1587cc
Geo Prizm LSi 1991 1.6L L4 1587cc
Product video

Technical specification

Article nr:
actTC1-XTR6

Manufacture Partnumber: TC1-XTR6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
