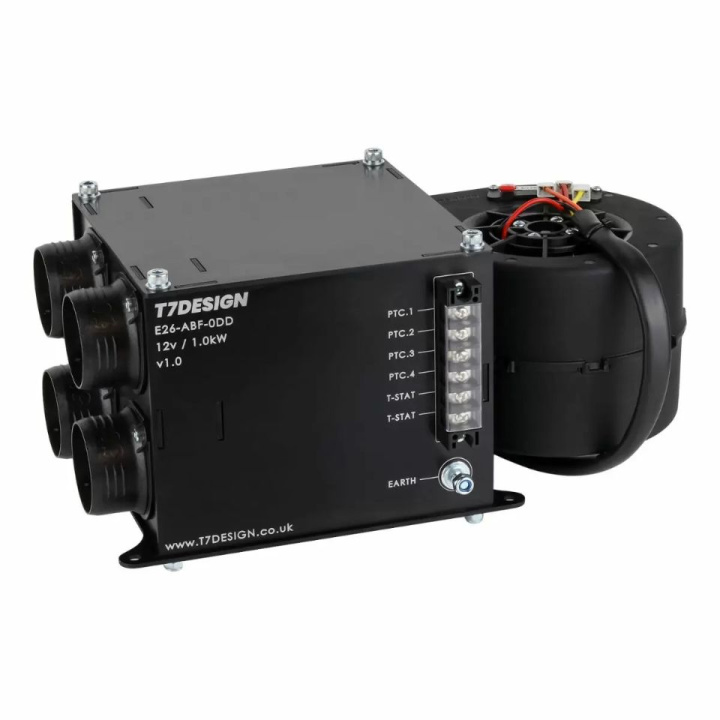

T7Design 12v DC 1000w Ducted Electric Cab Heater with 3 Speed Centrifugal Blower
The T7Design 12v DC 1000w ducted electric heater with 3 speed centrifugal blower is perfect for many applications that require a fully electric and reliable heating system. Our heaters are designed with an emphasis on safety, reliability, and quality, we have chosen components manufactured by the leaders in their respective fields for use within our heating systems.
This heater is available in a number of different variations tailored for specific applications and requirements. This version is designed to allow the unit to be hidden away and the hot air ducted out to where it is needed, it is also coupled with a 3 speed centrifugal blower perfect for blowing air down long lengths of ducting. The blower can also be turned down to reduce noise level. Depending on how they are wired in, all of our heaters can be run at a reduced heat output.
NOTE: No switches or wiring is included with the heater; the unit is supplied as shown in the product images. Switches, relays and wiring components are available for purchase separately.
| Specification | Metric | Imperial & Other |
| Heat Output | 250, 500, 750, 1000 W | 853, 1706, 2559, 3412 BTU |
| Air Nozzle Size | 4x Ø 50 mm | 4x Ø 2" |
| Airflow | 300 m3/hr | 176 cfm |
| Min Temperature | -10 °C | 14 °F |
| Max Temperature | 60 °C | 140 °F |
| Dimensions (LWH) | 334 x 158 x 171 mm | 13.15 x 6.22 x 6.73" |
| Weight | 2.4 kg | 5.3 lbs |
| Fan Speed | 3 Speed |
| Fan Life | 7,000 Hrs @ 40°c |
| Noise | 55 dB(A) |
| Voltage | 12v |
| Current | 83.33a Continuous, ~95a Inrush |
| Mounting | 4x 6mm Holes Through Base |
| Enclosure Construction | Anodised Black Aluminium Panels |
| Part Number | E26-ABF-0DD |
