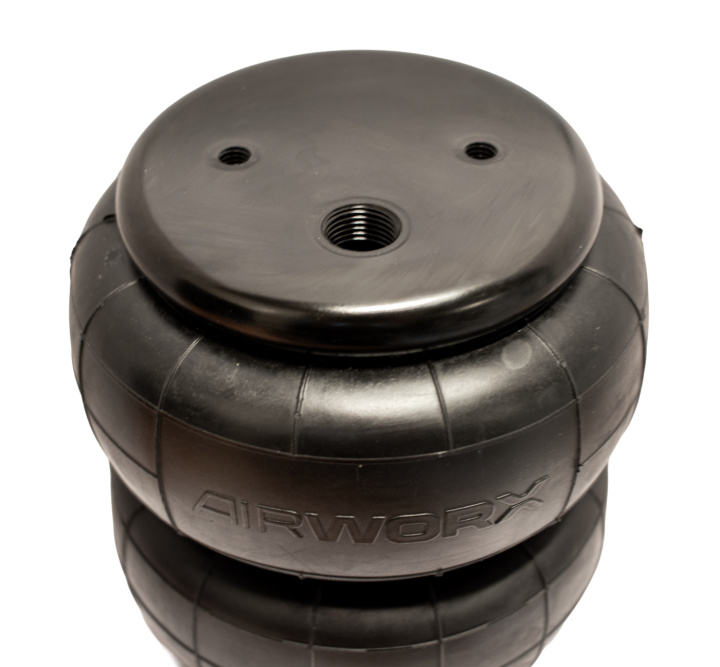

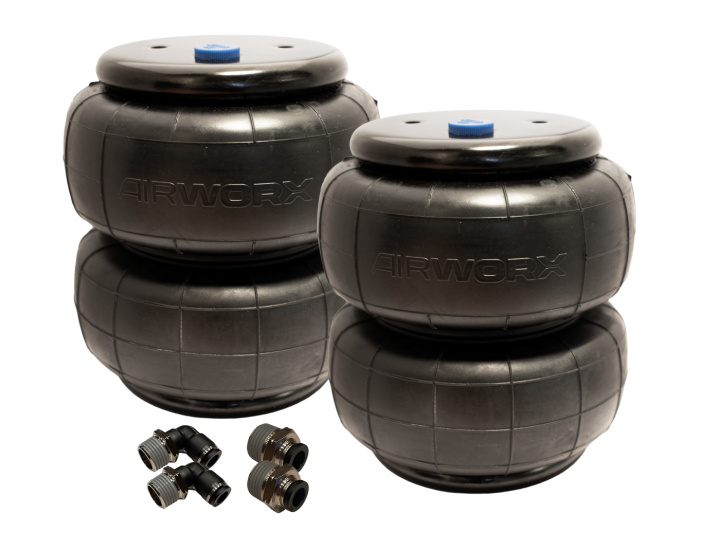

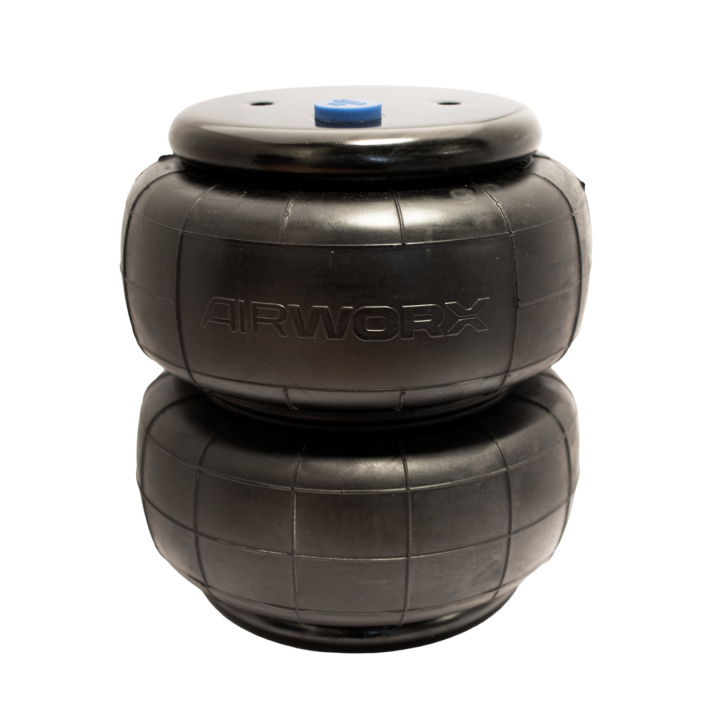

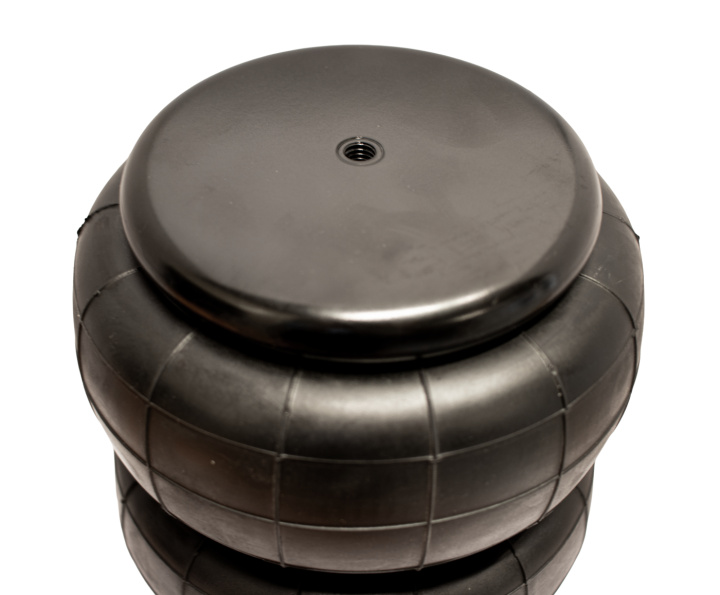

Set of 2x Airworx 2600 Air Spring incl fittings
The Airworx 2600 is a heavy-duty universal air spring that delivers reliable performance at a very competitive price. Designed as an alternative to the Air Lift Performance Dominator 2600, it matches the dimensions, making it easy to integrate into a wide range of custom air suspension projects.
This bag is ideal for rear or front suspensions where the spring is mounted separately from the shock absorber, such as multilink or rear axle setups. Since the Airworx 2600 is not a through-type bag, it is not suitable for strut-type applications (where the spring sits directly over the shock).
Specifications:
- Min. height: 71mm
- Max height: 318mm
- Design height: 152-228mm
- Width (w/o load): 178 mm
- Max width (with load): 203mm
- Port: 1/2" NPT
- Max pressure: 600 PSI
- Top/bottom plate diameter: 140 mm
- Bolt thread: 3/8"-16 UNC
- Max load: 1385kg at 100PS
The Airworx 2600 combines strength, versatility, and great value. A smart choice for your next adjustable air suspension build.
