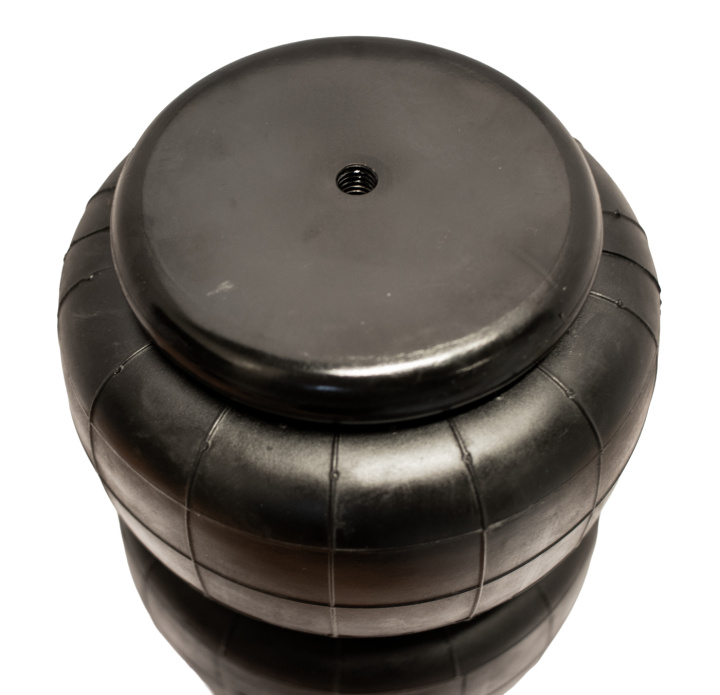

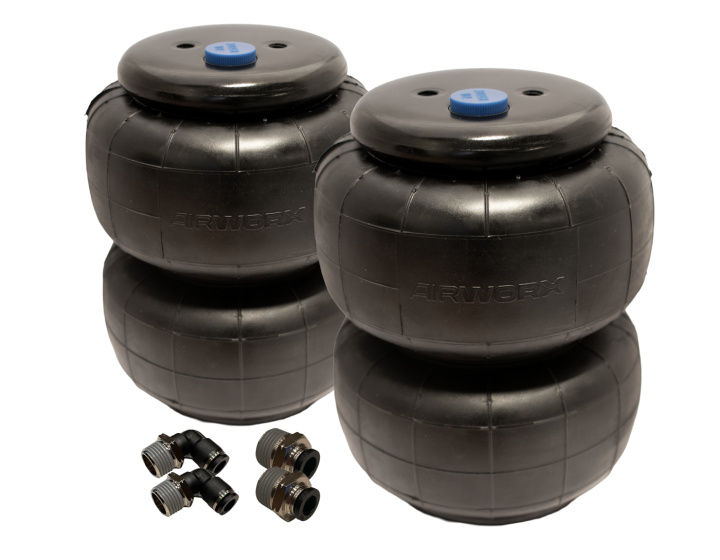

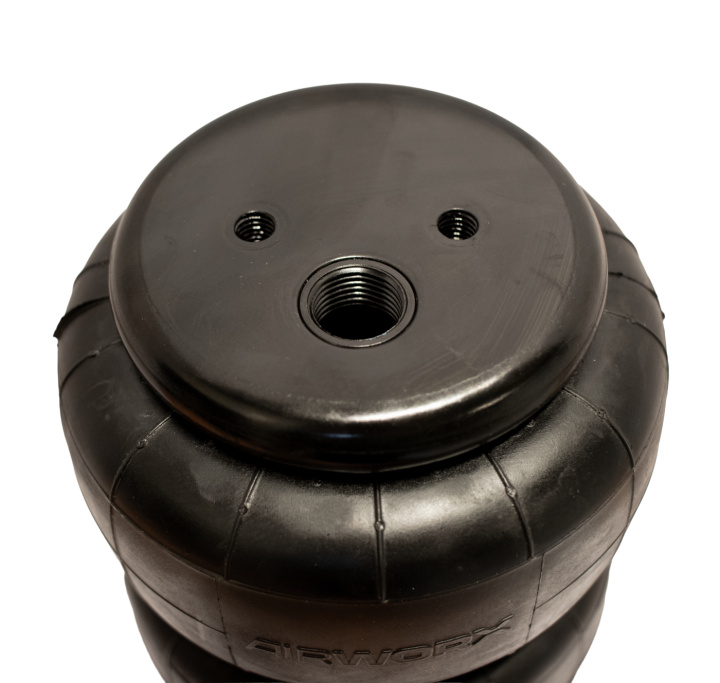

Set of 2x Airworx 2500 Air Spring
The Airworx 2500 is a universal air spring that delivers reliable performance at a very competitive price. Designed as an alternative to the Air Lift Performance Dominator 2500, it matches the dimensions and functionality, making it easy to integrate into a wide range of custom air suspension setups.
This bag is perfect for rear or front suspensions where the spring sits separate from the shock absorber, such as many multilink or rear axle designs. Since the Airworx 2500 is not a bag with open ends, it is not suitable for strut-type applications (where the spring is mounted directly over the shock).
Specifications:
- Min. height: 71mm
- Max height: 267mm
- Design height: 139-190mm
- Width (w/o load): 152 mm
- Max width (with load): 178mm
- Port: 1/2" NPT
- Max pressure: 200 PSI
- Top/bottom plate diameter: 113 mm
- Bolt thread: 3/8"-16 UNC
- Max Load: 2096lbs at 100PSI
