ACT Advanced Clutch Technology

SB10-HDSS ACT HD-M/Perf Street Sprung Kit

Article nr:
actSB10-HDSS
|
(0 reviews)
Recommended for street and race use. Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle, confidence during hard shifts.
1140 EUR

Add to cart
Delivery:  2-4 weeks
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • SB10-HDSS kit features ACTs most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monolocs hardened chrome-moly steel construction will provide years of service.

    Specifications:

  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter: 9.4 IN
  • Clutch Disc Diameter: 240 MM
  • Disc Material: Organic
  • Input Spline Quantity: 24
  • Input Shaft Diameter: 1 IN
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Includes Monoloc.
  • Product Weight (lbs.): 18.2
  • Title: ACT HD-M/Perf Street Sprung Kit
  • Torque Capacity (ft/lbs.): 522
  • Torque Capacity Over OE: 45%

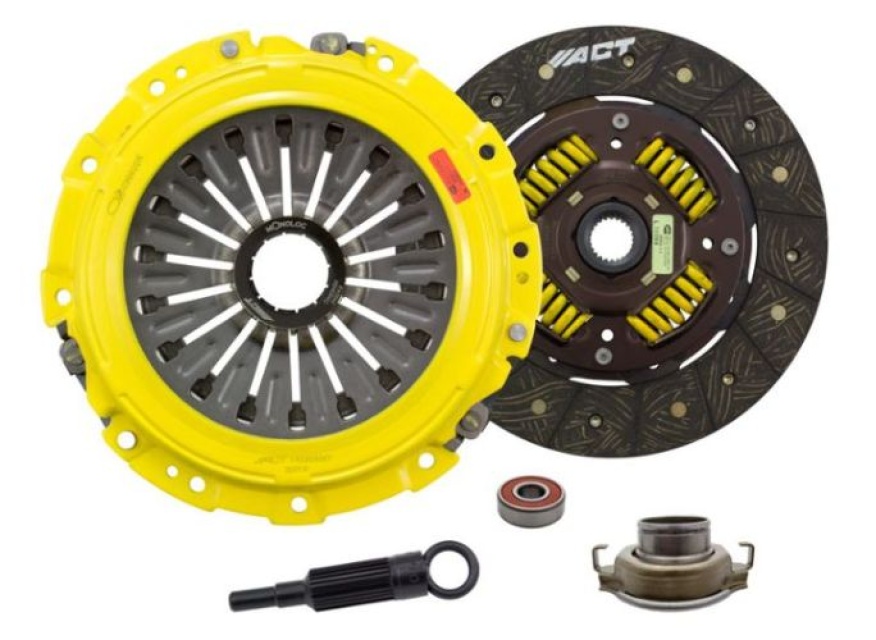

    Kit includes:

    • 3000503 ACT Perf Street Sprung Disc
    • AT90 ACT Alignment Tool
    • PB1004 ACT Pilot Bearing
    • RB601 ACT Release Bearing
    • SB019 ACT Heavy Duty Pressure Plate

    Kitet passar:

    Subaru Impreza - WRX STi 2004-2017 6-Speed 2.5L H4 2458cc
    Subaru Impreza - WRX STi 2002-2005 2L F4 EJ20
  • Product video

    Technical specification

    Article nr:
    actSB10-HDSS
    Manufacture Partnumber: SB10-HDSS
  • Suitable for
  • Brand
  • ACT Advanced Clutch Technology Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
