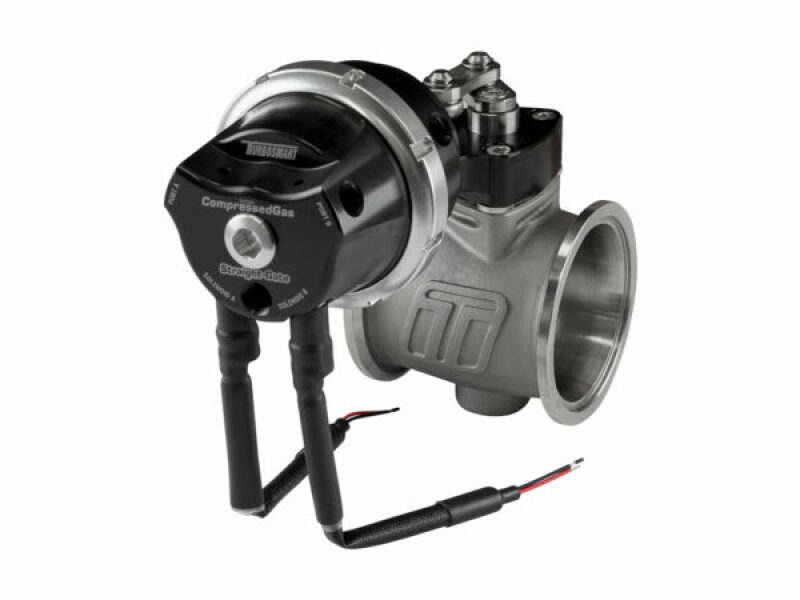

Turbosmart StraightGate50 PSG50CG - Pneumatic Compressed Gas Wastegate, 7 PSI, Black

Name: PSG50CG Pneumatic StraightGate50 Compressed Gas (Solenoid) 7psi Black
Brand: Turbosmart
SKU: TS-0565-1252
Price: 1103 EUR
Availability: InStock

The Turbosmart StraightGate50 is a high-performance external wastegate designed for advanced boost control systems using compressed gas, such as CO₂ or compressed air. It combines high flow capacity with integrated solenoid valves for precise boost pressure control and a compact design suited to demanding motorsport applications.

The integrated system houses the fill and vent solenoid valves, along with a pressure sensor for the wastegate's upper pressure chamber, within the wastegate cap. This reduces the need for external components and additional hose routing, simplifying installation and potentially reducing the number of possible failure points.

The StraightGate50 features a 50 mm zero-offset butterfly valve designed to provide high gas flow. Its robust construction, including stainless steel components and a high-pressure Nomex diaphragm, is engineered to handle the high pressure differentials found in compressed-gas boost control systems.

Features and Benefits

Integrated solenoid valves: Built-in valves for filling and venting the pressure chamber.
Integrated pressure sensor: Measures pressure in the wastegate's upper chamber.
50 mm butterfly valve: Zero-offset design for high gas flow.
High flow capacity: Specified flow rate of 383.9 CFM, equivalent to approximately 10.87 m³/min.
Nomex high-pressure diaphragm: Designed for compressed-gas boost control applications.
Robust construction: Wastegate housing, valve and shaft made from stainless steel.
Compact installation: Integrated control components reduce the need for external hose routing.
Adjustable base pressure: Available with different spring options to suit system requirements.

Technical Specifications

Manufacturer: Turbosmart
Model: StraightGate50 PSG50CG
Product type: External pneumatic wastegate for compressed gas
Valve diameter: 50 mm
Base pressure: 7 PSI (approximately 0.48 bar)
Control: Integrated solenoid valves and pressure sensor
Valve type: Zero-offset butterfly valve
Specified flow capacity: 383.9 CFM

Product video

Technical specification

Article nr:

TS-0565-1252

Manufacture Partnumber:

TS-0565-1252

Turbosmart was founded in Sydney, Australia, in 1997. At the time they only had 2 products but quickly became known in the car industry for their incredible quality and durability.

Today Turbosmart's products are sold in more than 50 countries around the world and is found in several record-breaking cars. The successes and tests of these cars on and off the track, Turbosmart has taken part in their development of products. This means that Turbosmart's products never stop developing, they make constant updates to get the absolute best results. The assortment offers wastegates, blow-off valves, boost controllers and gauges etc.
