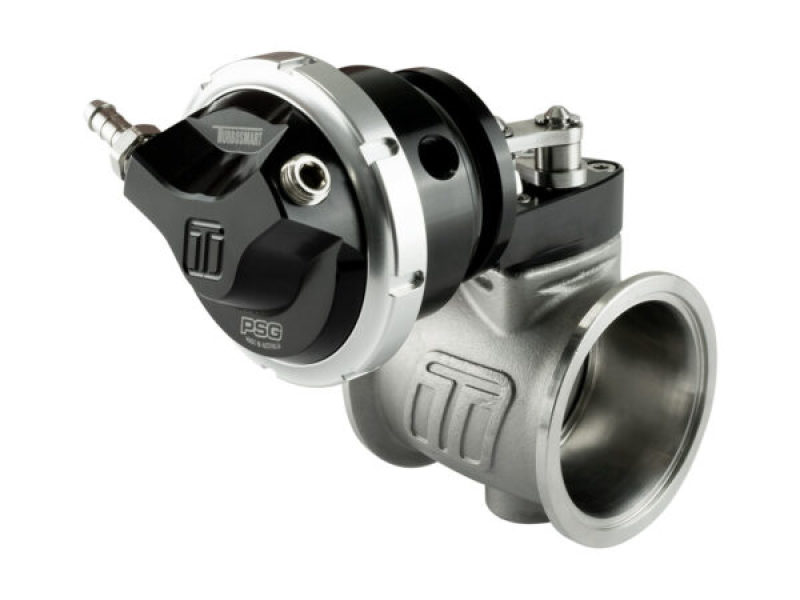

Name: Pneumatic Straight Gate 6psi External Wastegate (Black)
Brand: Turbosmart
SKU: TS-0565-1762
Price: 912 EUR
Availability: InStock

The StraightGate50 from Turbosmart is the world's highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.

The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!

The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.n

Available in
nElectronic eSG50 StraightGate50 TS-0565-1002
nPneumatic (Boost-Based) pSG50 StriaghtGate50 TS-0565-1762
nPneumatic (Vacuum-Based) pSG50v StraightGate50 TS-0565-1212nn

Features
50mm (1.97in) Butterfly Style Zero-Offset Valve
383.9 CFM / 10.87m3 per minute flow
Stainless Steel (630) Butterfly and shaft
Stainless Steel (347) Main Body
Stainless Steel (Heat Treated 431) V-Band Clamps
Aluminium (6262 T6 Anodised) Bracket & Actuator
Turbosmart unique Locking Collar Ring
Base Spring Options from 6psi to 42psi
Suitable for Single or Twin Port Boost-Based Control
Stainless Steel (N60) Linkages & Control Armnn

Supplied With
nnBoost-Based Pneumatic StraightGate50
nStraihgtGate50 Inlet & Outlet Flanges
nStraightGate50 Inlet & Outlet Weld Flanges
n6psi Springs Pre-Installed
nAll Other Springs including in box
n2 x 1/8 NPT Hose Tail Fittings
n2 x 1/8 NPT Blanking Plugs
nTurbosmart Decal
n

Product video

Technical specification

Article nr:

TS-0565-1762

Manufacture Partnumber:

TS-0565-1762
