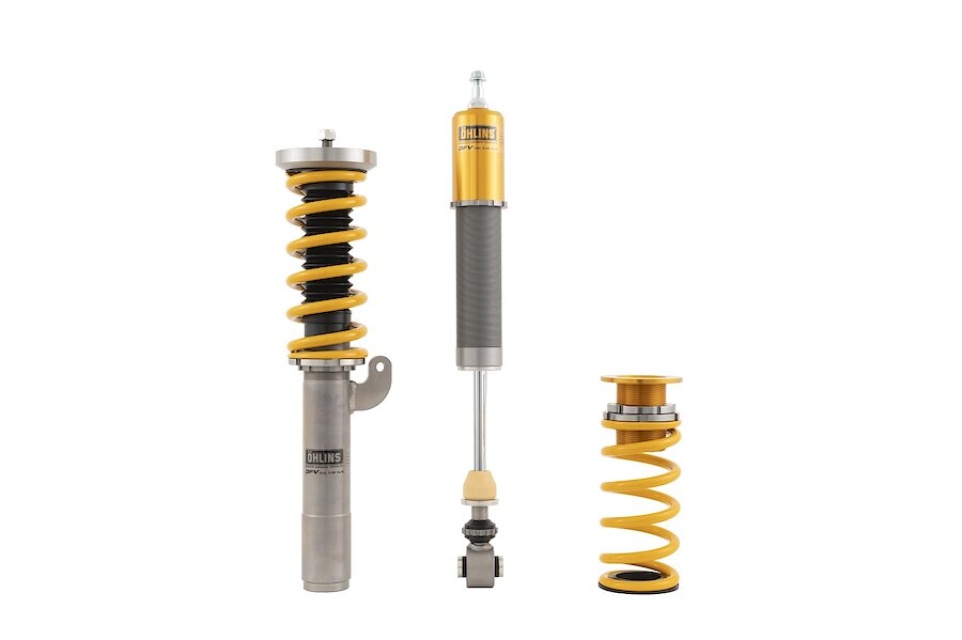

Mini Cooper F55 / F56 / F57 2014- Road & Track Coilover Kit Öhlins
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:
- DFV technology (Dual Flow Valve)
- Height adjustable
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty

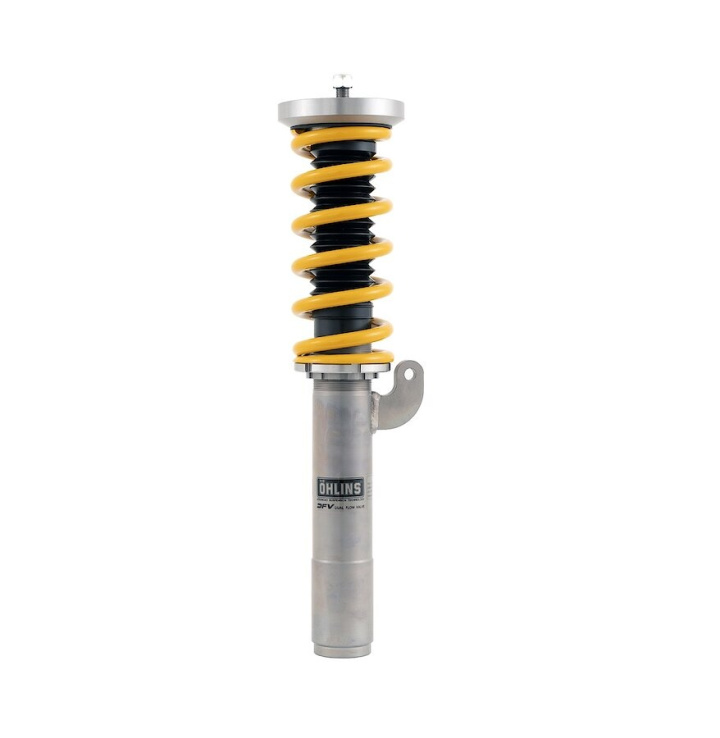

Features Front:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Spring rate 60 N/mm
- Approx. 10-15 mm lower than standard with recommended setup (GP 2-5 mm)
- Use with original top mounts

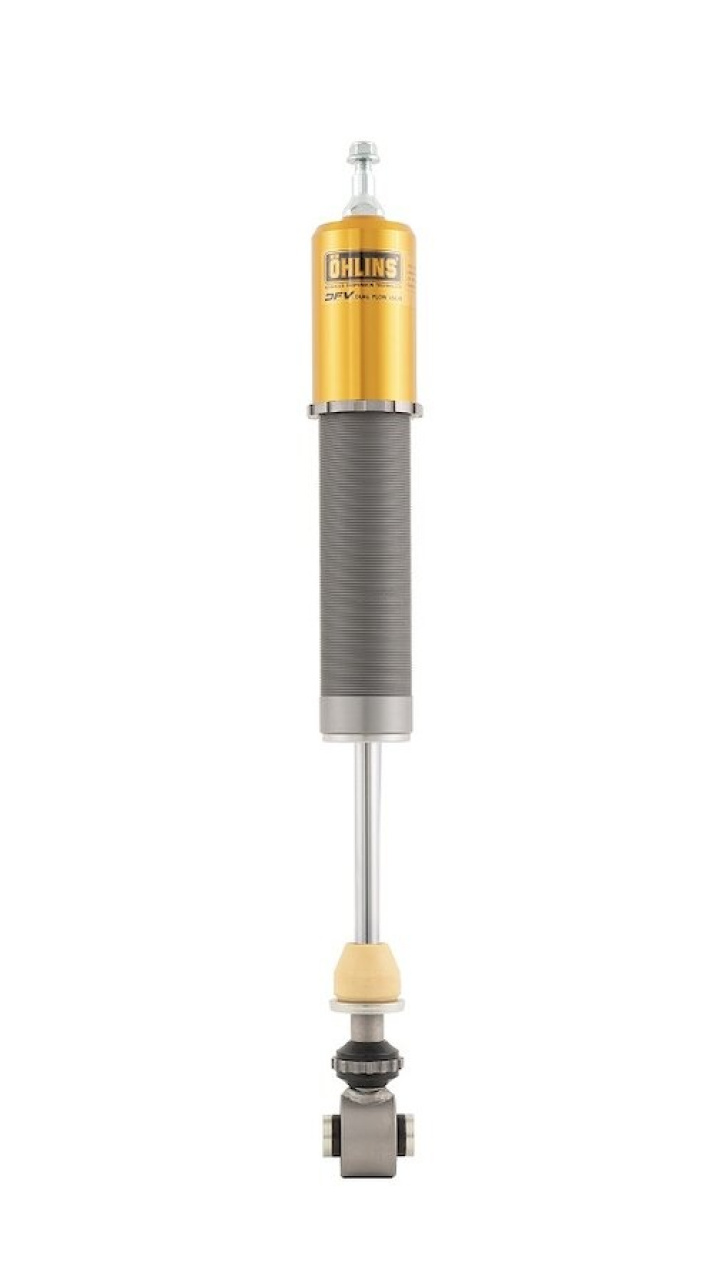

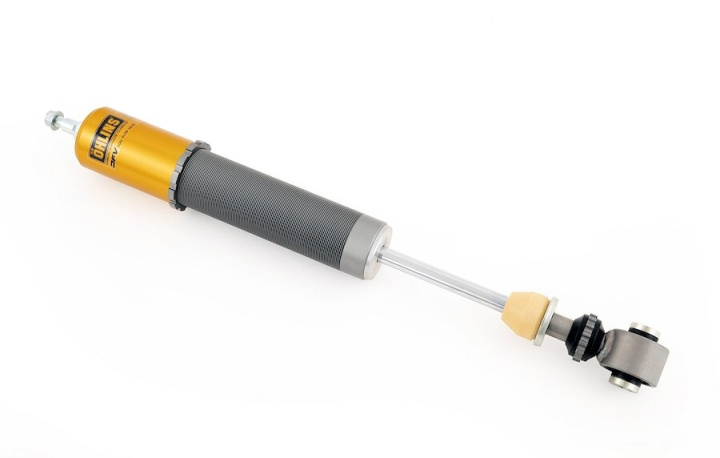

Features Rear:
- Conventional shock absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster

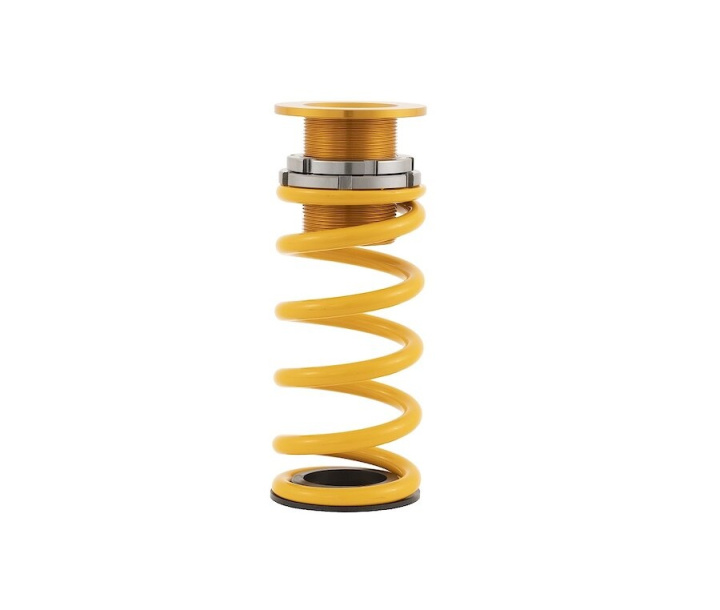

- Separate ride height adjustment
- Spring rate 80 N/mm
- Approx. 10-15 mm lower than standard with recommended setup (GP 2-5 mm)
- Use with original top mounts
Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-spanner (for spring preload adjustment)
- Owners manual and mounting instruction
Fits the following vehicles
MINI Cooper (F55, F56, F57), 2014 –
MINI JCW GP3 (F56), 2020 –
