ME2-XTR4 ACT XT-M/Race Rigid 4 Pad Kit

Name: ME2-XTR4 ACT XT-M/Race Rigid 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actME2-XTR4
Price: 1176 EUR
Availability: InStock

Article nr:

actME2-XTR4

Recommended for race use only. Moderate to heavy pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts.

1176 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
ME2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monolocs hardened chrome-moly steel construction will provide years of service.
Specifications:
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 240 MM
Clutch Disc Diameter: 9.4 IN
Disc Material: Ceramic
Input Spline Quantity: 23
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Part Fitment Requirement: Includes Monoloc.
Product Weight (lbs.): 15.2
Title: ACT XT-M/Race Rigid 4 Pad Kit
Torque Capacity (ft/lbs.): 787
Torque Capacity Over OE: 115%

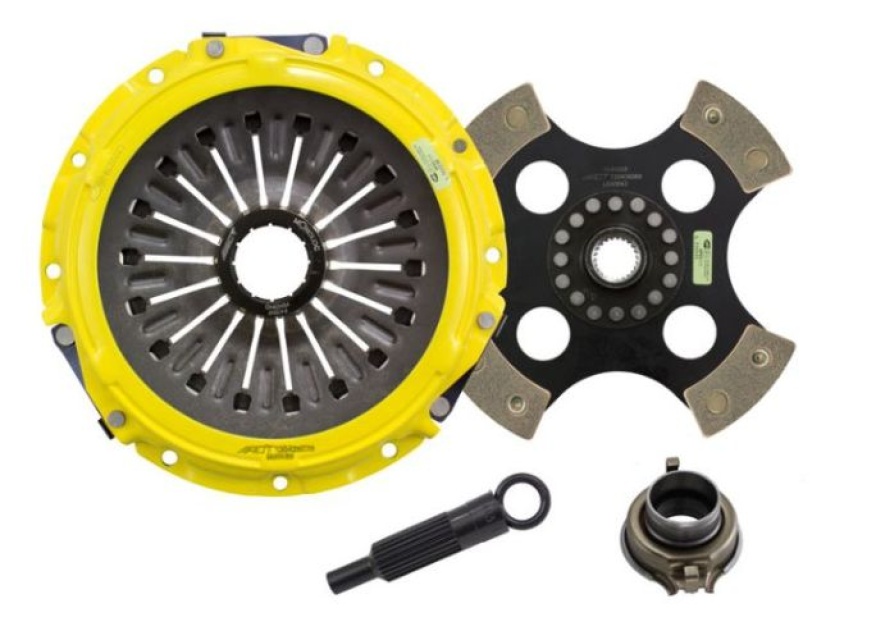

Kit includes:
4240008 ACT 4 Pad Rigid Race Disc
AT03 ACT Alignment Tool
MB018X ACT Xtreme Pressure Plate
RB601 ACT Release Bearing
Kitet passar:
Mitsubishi Lancer Evolution IV / EVO 4 1997 2.0L L4 1997cc
Mitsubishi Lancer Evolution IX / EVO 9 2005-2009 2.0L L4 2000cc
Mitsubishi Lancer Evolution V / EVO 5 1998 2.0L L4 1997cc 122 CID
Mitsubishi Lancer Evolution VI / EVO 6 1999-2001 2.0L L4 1997cc 122 CID
Mitsubishi Lancer Evolution VII / EVO 7 2001-2003 2.0L L4 1997cc 122 CID
Mitsubishi Lancer Evolution VIII / EVO 8 2003-2005 2.0L L4 1997cc 122 CID
Product video

Technical specification

Article nr:
actME2-XTR4

Manufacture Partnumber: ME2-XTR4
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
