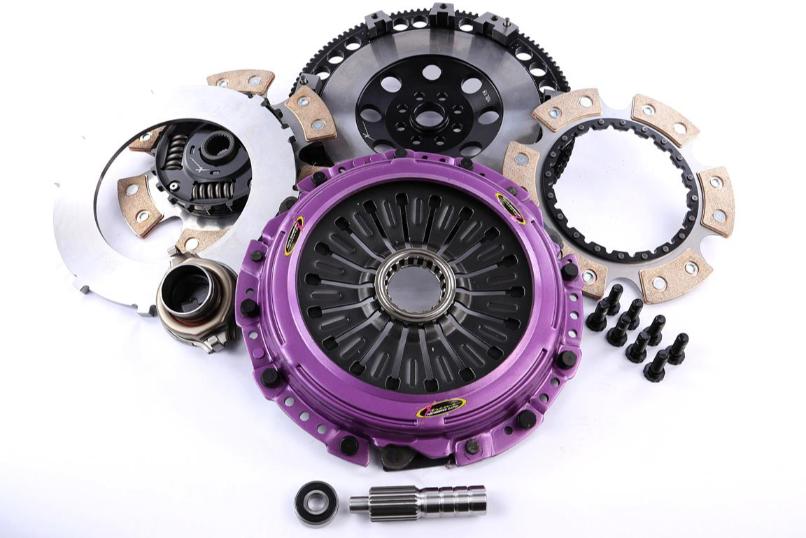

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Pull type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GDA) 6 speed 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 AWD (GC8) 1998.09-2000.09 EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD (GGB) 2000.10-2002.10 EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 AWD (GDB) 2005.10-2007.03 EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) Suits 6 Speed Gearboxn - Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STI AWD (GVF) 2010-2014 EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 i WRX STI AWD 2005.09-2007.12 EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STi AWD (GDF) 2005.09-2007.12 EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 AWD 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 AWD (GDF) 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) Suits 6 Speed Gearboxn - Subaru WRX STi 2.5 AWD 2014.06-2021 EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - 2021) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 WRX STI 330S AWD 2009.05-2010.12 EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) Suits 6 Speed Gearboxn - Subaru Impreza 2.5 STI CS400 AWD (GRF) 2010.04-2013.08 EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) Suits 6 Speed Gearbox
