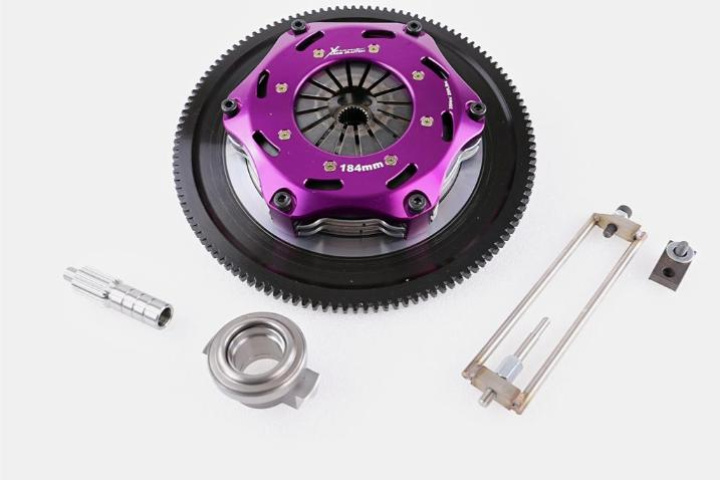

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Subaru Impreza 2.0 i Turbo AWD (GF8) 1994.03-2000.12 EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) Suits 5 speed gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GC8) 1994.03-2000.12 EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) Suits 5 speed gearboxn - Subaru Forester 2.0 S Turbo AWD (SF5) 1998.06-2001.04 EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) Suits 5 speed gearboxn - Subaru Forester 2.0 S Turbo AWD (SF5) 2001.04-2002.09 EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) Suits 5 speed gearboxn - Subaru Forester 2.0 S Turbo AWD (SG5) 2002.02-2005.05 EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) Suits 5 speed gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 5 speed gearboxn - Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 5 speed gearboxn - Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 5 speed gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GDA) 5 speed 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 5 speed gearboxn - Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) Suits 5 speed gearboxn - Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) Suits 5 speed gearboxn - Subaru Impreza 2.0 AWD (GC8) 1998.09-2000.09 EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) Suits 5 speed gearboxn - Subaru Legacy 2.0 AWD (BE5) 2002.02-2003.06 EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) Suits 5 speed gearboxn - Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 5 speed gearboxn - Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) Suits 5 speed gearboxn - Subaru Legacy 2.0 AWD (BE5) 2002.06-2003.08 EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) Suits 5 speed gearboxn - Subaru Impreza 2.0 Turbo AWD (GC8) 1996.12-2000.12 EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) Suits 5 speed gearboxn - Subaru Legacy 2000 Turbo 4WD (BC5) 1992.05-1994.07 EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) Suits 5 speed gearboxn - Subaru Legacy 2000 Turbo Super 4WD (BF5) 1992.05-1994.07 EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) Suits 5 speed gearboxn - Subaru Forester 2.5 AWD (SG9) 2003.12-2005.05 EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) Suits 5 speed gearboxn - Subaru Forester 2.5 Prodrive Performance Pack AWD 2005.05-2005.09 EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) Suits 5 speed gearbox
