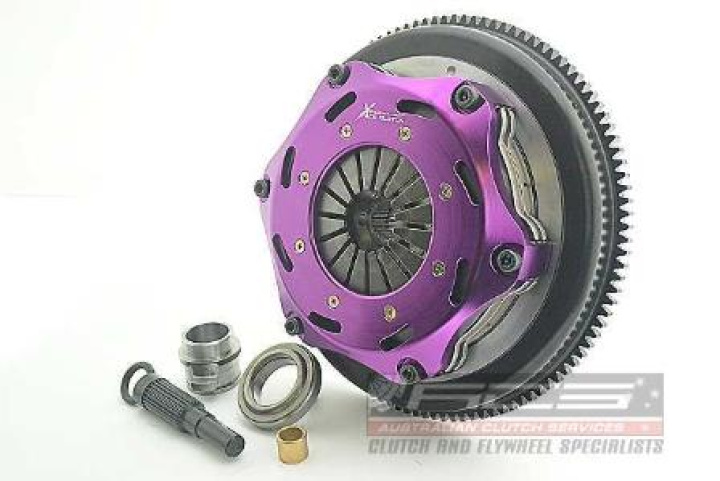

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- Nissan 180SX S13 | 1.8 1988.09-1992.06 CA18DET 1809 Petrol 130 kW 177 BHP (1988.09 - 1992.06)Nissan 180SX S13 | 1.8 Turbo II 1989.04-1992.06 CA18DET 1809 Petrol 148 kW 201 BHP (1989.04 - 1992.06)
Nissan Silvia S13 | 1.8 Turbo 1988.08-1994.03 CA18DT 1809 Petrol 124 kW 169 BHP (1988.08 - 1994.03)
Nissan 180SX S13 | 1.8 Turbo 1988.09-1992.06 CA18DT 1809 Petrol 124 kW 169 BHP (1988.09 - 1992.06)
Nissan Silvia S13 | 1.8 1988.08-1990.12 CA18DT 1809 Petrol 131 kW 178 BHP (1988.08 - 1990.12)
