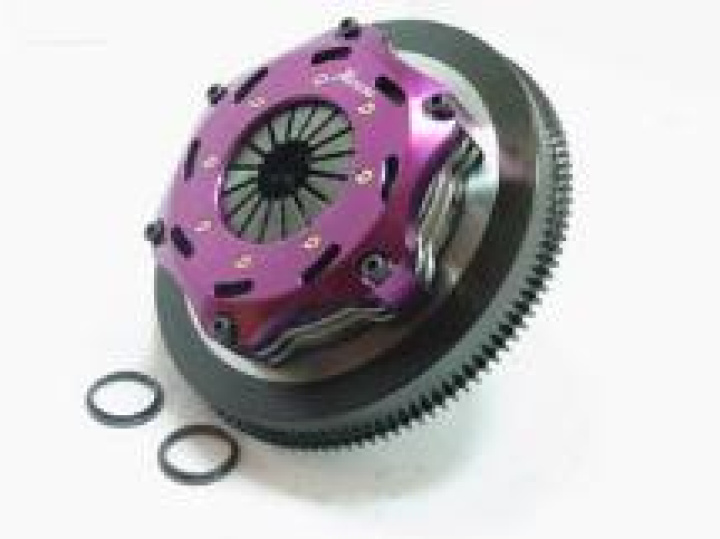

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Light Diaphragm Alloy Hat Assembly (2.6mm)185-10B-PP-LHeavy Diaphragm Alloy Hat Assembly (2.8mm)185-10B-PPPressure Plate Casting185-10B-PPCIntermediate Plate185-10B-IPPressure Plate BoltBOLT-8X1.125X50Pressure Plate WasherWASHER-8MM-C
Replacement Parts |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Passar till:
- BMW 3-Series E46 | M3 2000-2006 3246cc | 252KW | 343HP | S54 B32 (326S4) (2000-2006)BMW 3-Series E46 | M3 2001-2006 3246cc | 252KW | 343HP | S54 B32 (326S4) (2001-2006)
BMW 3-Series E46 | M3 CSL 2003-2003 3246cc | 265KW | 360HP | S54 B32 (326S4) (2003-2003)
