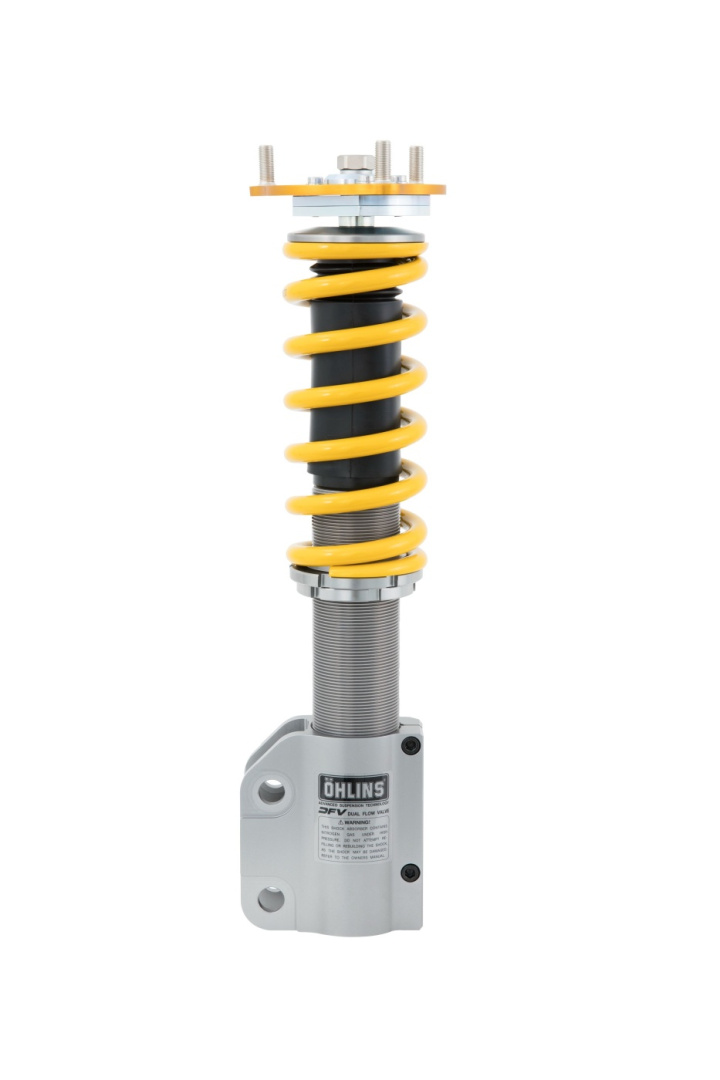

Honda Civic Type-R FD2 2007- Road & Track Coilover Kit Öhlins
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:
- DFV technology (Dual Flow Valve)
- Individual height adjustment
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty

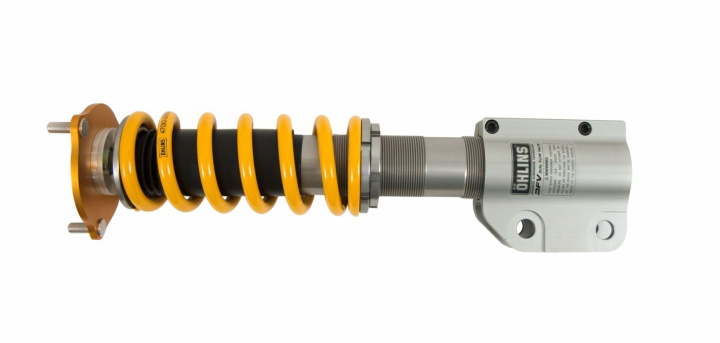

Features Front:
- McPherson strut, upside down
- Compression and rebound damping with one adjuster

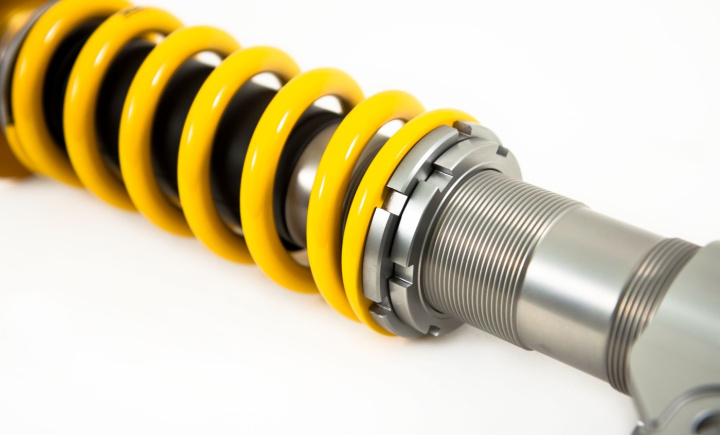

- Spring preload adjuster
- Separate ride height adjustment
- Approx. 0 - 30 mm lower than standard with recommended setup

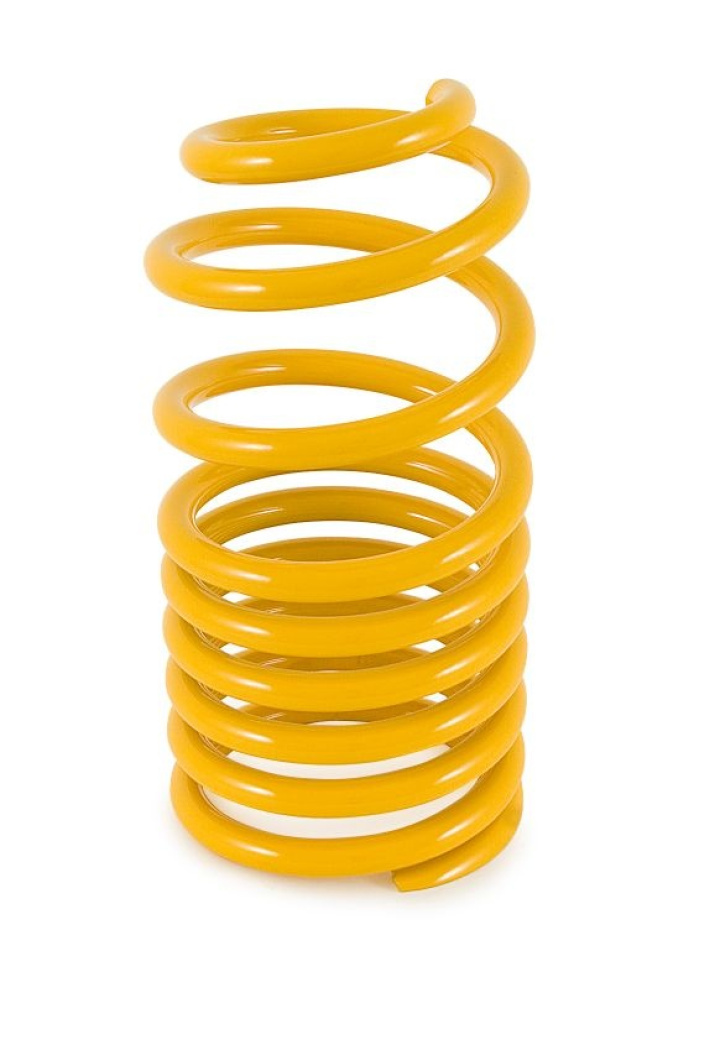

- Spring rate 80 N/mm

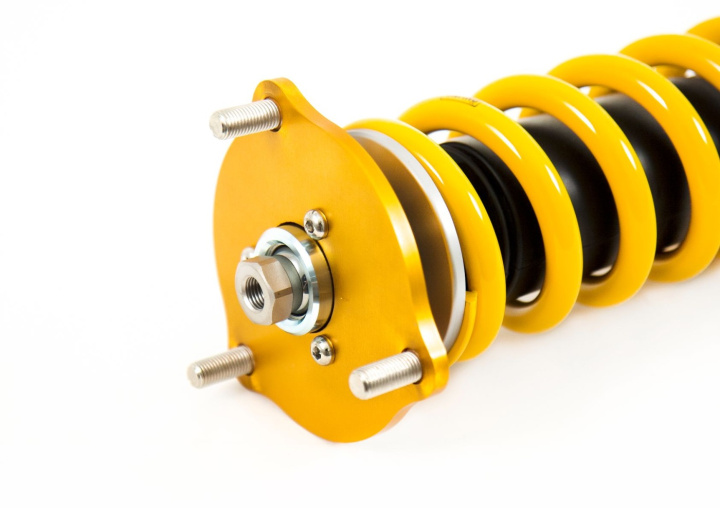

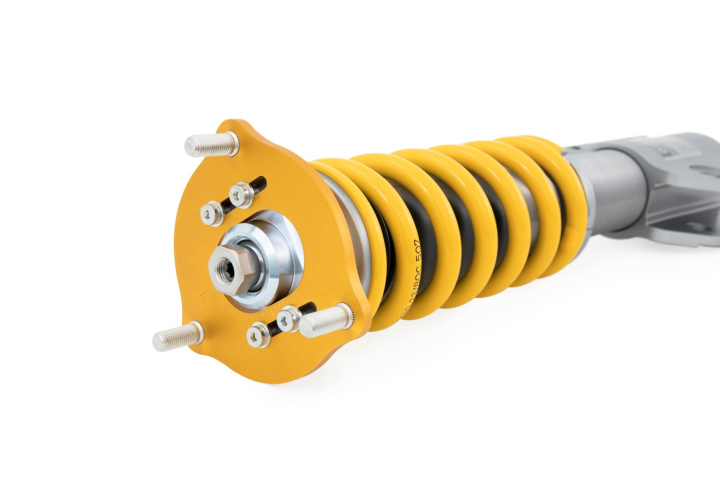

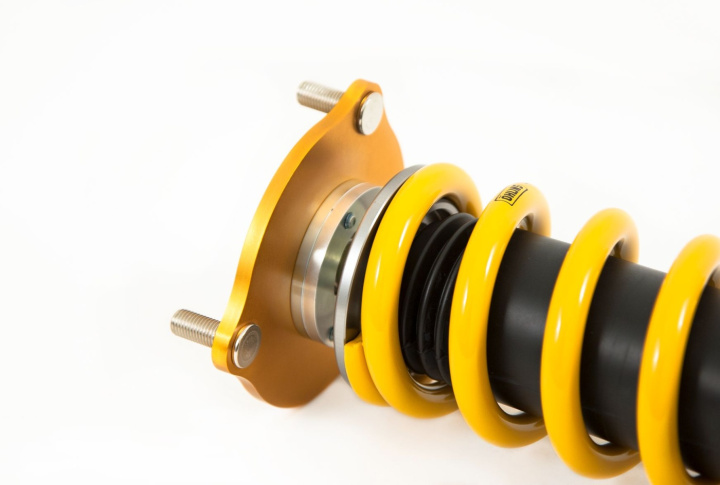

- Aluminum top mounts with adjustable camber

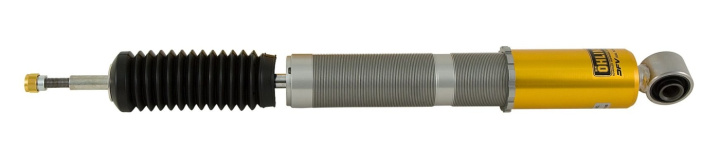

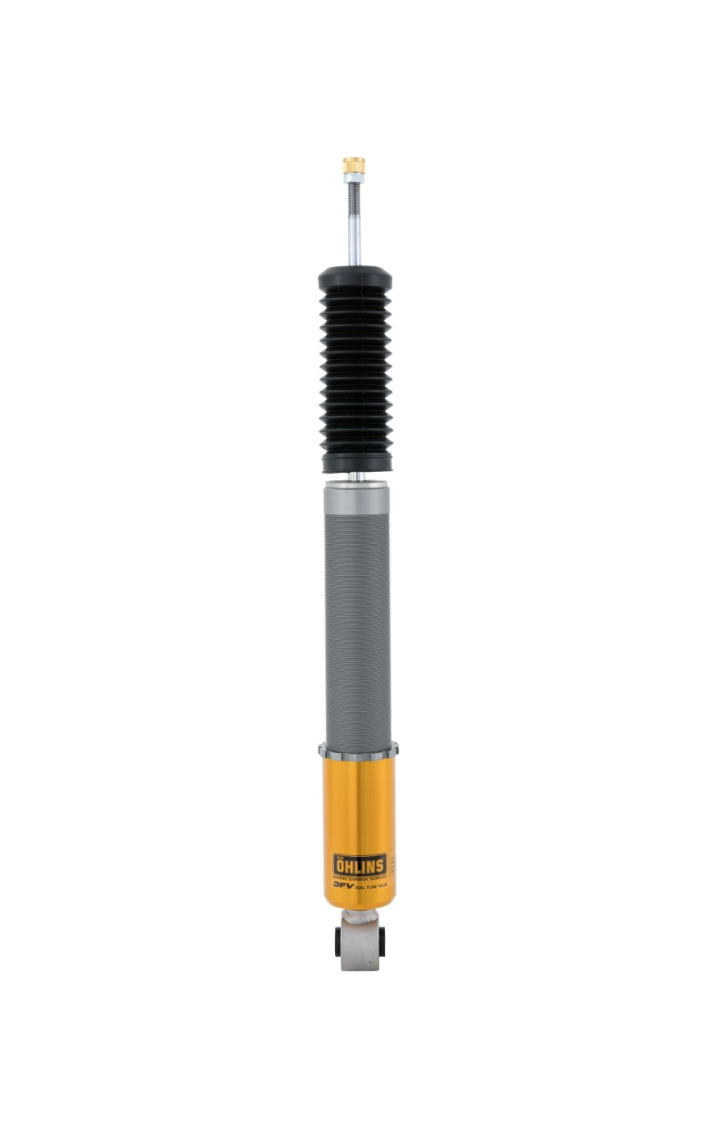

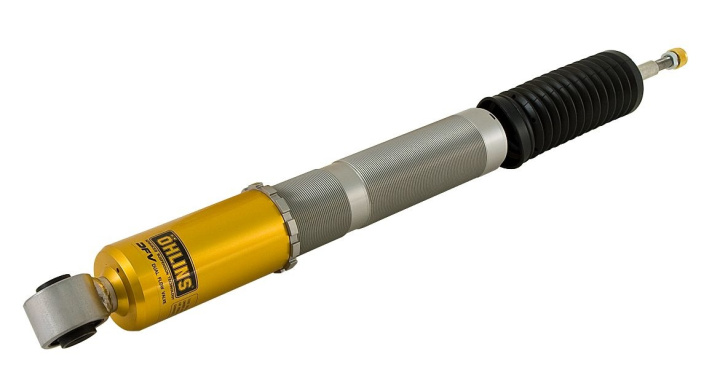

Features Rear:
- Conventional shock absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 15 - 40 mm lower than standard with recommended setup
- Spring rate 24 - 65 N/mm
- Use with original top mounts
Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
Fits the following vehicles
Honda Civic Type-R (FD2), year 2007 – 2010
