BMW M2 / M3 / M4 F8x Road & Track Coilover Kit Öhlins
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:

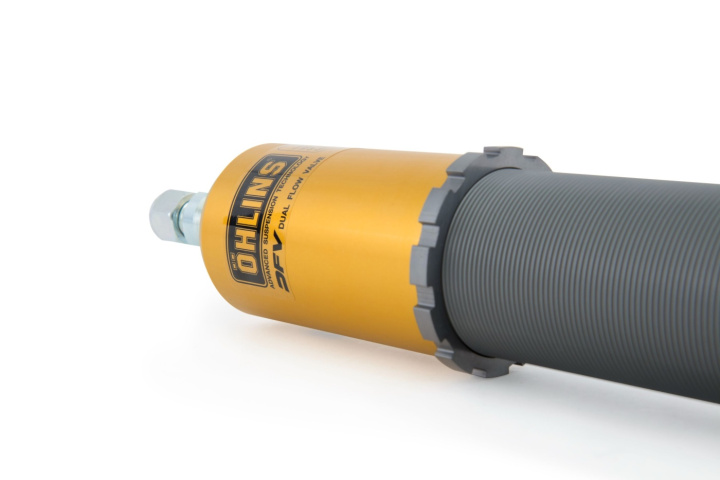

- DFV technology (Dual Flow Valve)
- Individual height adjustment
- Rebuildable
- Corrosion salt spray tested (ISO 9227)
- 2 year warranty
Features Front:

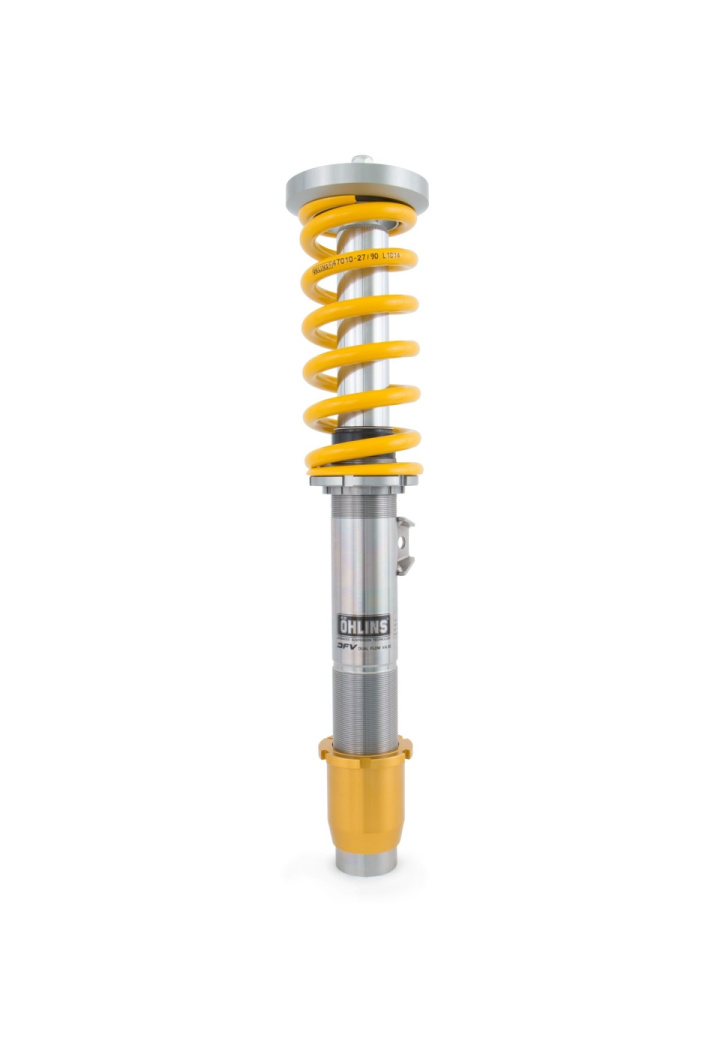

- McPherson strut, upside down
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 0 - 25 mm lower than standard with recommended setup
- Spring rate 90 N/mm
- Use with original top mounts
Features Rear:

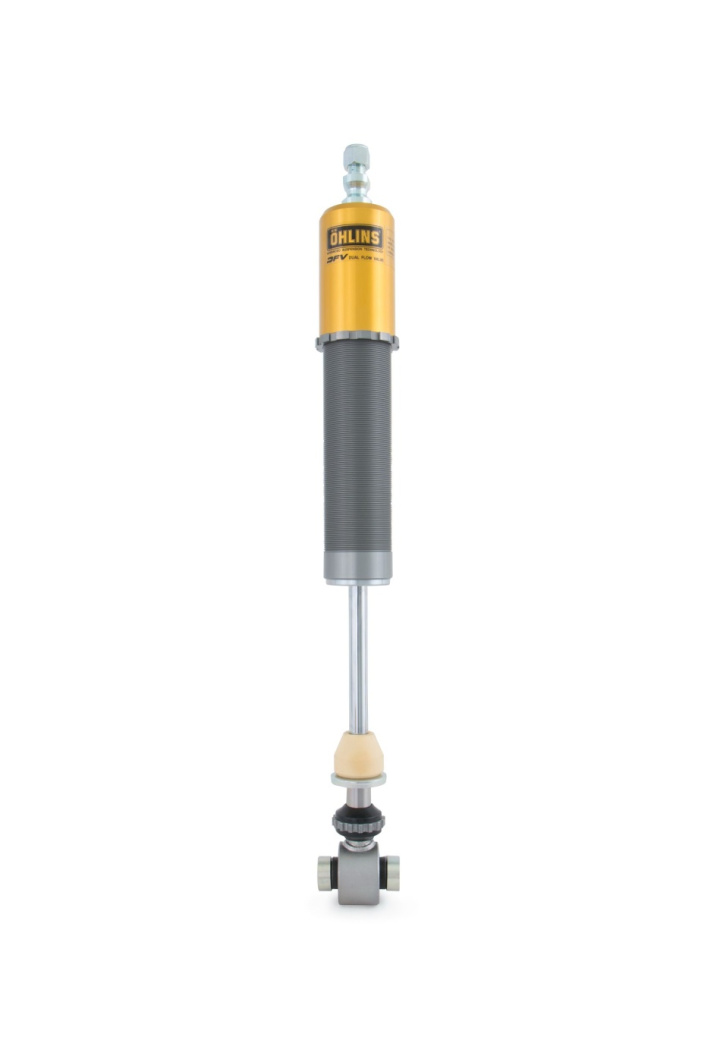

- Conventional shock absorber
- Compression and rebound damping with one adjuster
- Spring preload adjuster
- Separate ride height adjustment
- Approx. 0 - 25 mm lower than standard with recommended setup
- Spring rate 230 N/mm
- Use with original top mounts
Purchased Parts Package:
- Coil over kit incl. springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
Fits the following vehicles
BMW M3 F80 2013 – 2020
BMW M4 F82 2013-2020
- BMW M2 (F87), 2016 – 2020
- BMW M2 Competition (F87), 2018 – 2020
