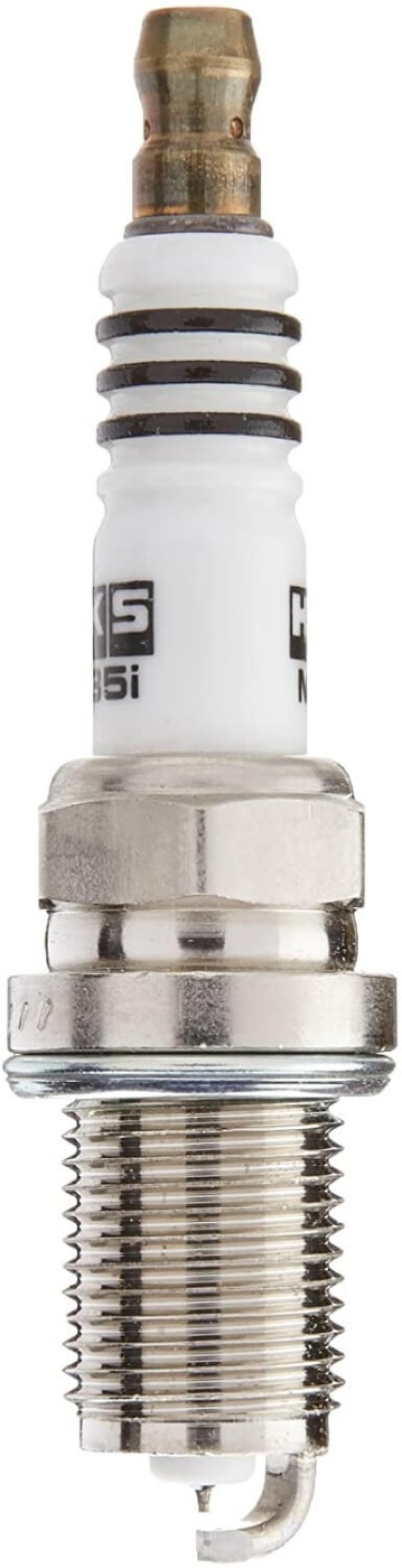

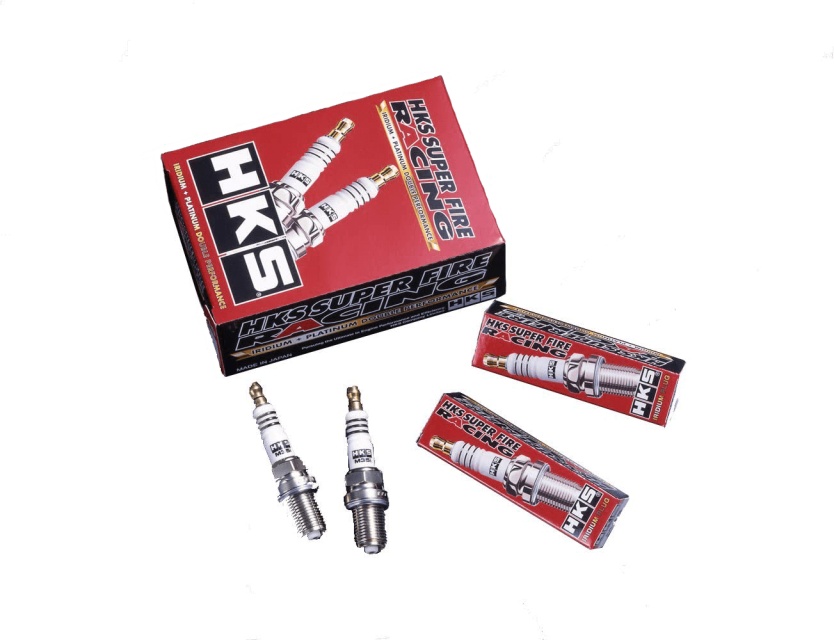

HKS M45XL Spark Plugs φ12×26.5mm Super Fire Racing

Ultimate spark plug "M".

Ignitionability, durability, anti-insulation are all reinforced. HKS has made the best plug for both tuning engines and stock engines.

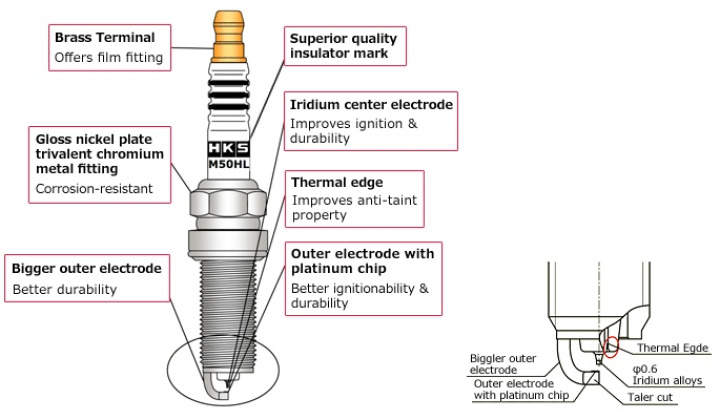

• 0.6mm Iridium Alloy Center Electrode Iridium alloy center electrode reduces voltage requirement and improves ignition performance and durability.
• Outer Electrode with Platinum Chip The outer electrode incorporates a square platinum chip which improves durability, and combining with the iridium center electrode boosts ignition performance. The outer electrode features a shortened tip design and tapered shape while maintaining the necessary space for proper ignition.

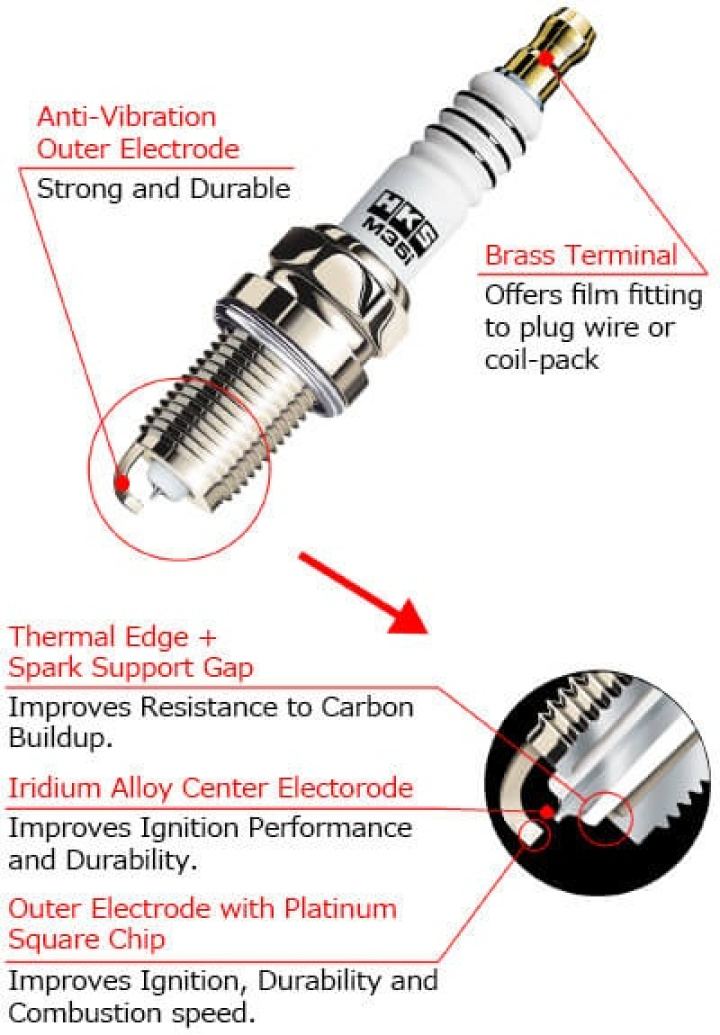

• Short Type Outer Electrode (Anti-Vibration) The outer electrode has been shortened and engineered with the ideal shape to decrease weight for resistance against vibration. This anti-vibration design improves longevity of the outer electrode.
• Thermal Edge After long idling or under various combustion conditions, carbon buildup can occur causing misfires. The thermal edge of the ceramic insulator discharges to help decrease carbon deposits.
• Spark Support Gap Discharge occurs in the spark support gap (space between the tip of insulator and the base of the outer electrode) to help prevent carbon buildup.

Performance and Efficiency

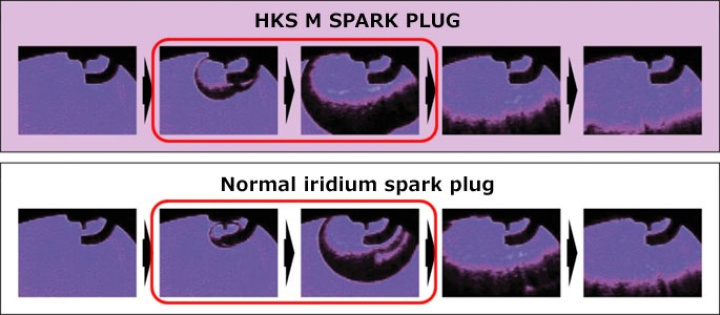

• Increased Ignition Performance Decreased voltage requirement strengthens ignition performance under harsh conditions like lean mixture or high boost pressure.
• Improved Durability New material and design improve durability which allows for use under hard combustion conditions like continuous high load during circuit driving or aggressive tuning. * Improper combustion condition and wrong heat range selection may cause damage to the spark plug.
• Decreased Carbon Deposits Thermal edge and spark support gap help prevent carbon buildup for better ignition under various combustion conditions.

Special Design RE-type for Rotary Engines

Rotary engines reciprocating design have a different mechanism and combustion condition. RE-type spark plugs are specially designed to meet the different requirement for rotary engines. The straight shape platinum outer electrode enables reliable ignition performance.

Heat Range Conversion Chart

* Above information is the reference for heat resistance. ¤
