HC5-HDG4 ACT HD/Race Sprung 4 Pad Kit

Name: HC5-HDG4 ACT HD/Race Sprung 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actHC5-HDG4
Price: 694 EUR
Availability: InStock

Article nr:

actHC5-HDG4

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

694 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
HC5-HDG4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 8.3 IN
Clutch Disc Diameter: 212 MM
Disc Material: Ceramic
Input Spline Quantity: 20
Input Shaft Diameter: 0.875 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 10.5
Title: ACT HD/Race Sprung 4 Pad Kit
Torque Capacity (ft/lbs.): 300
Torque Capacity Over OE: 84%

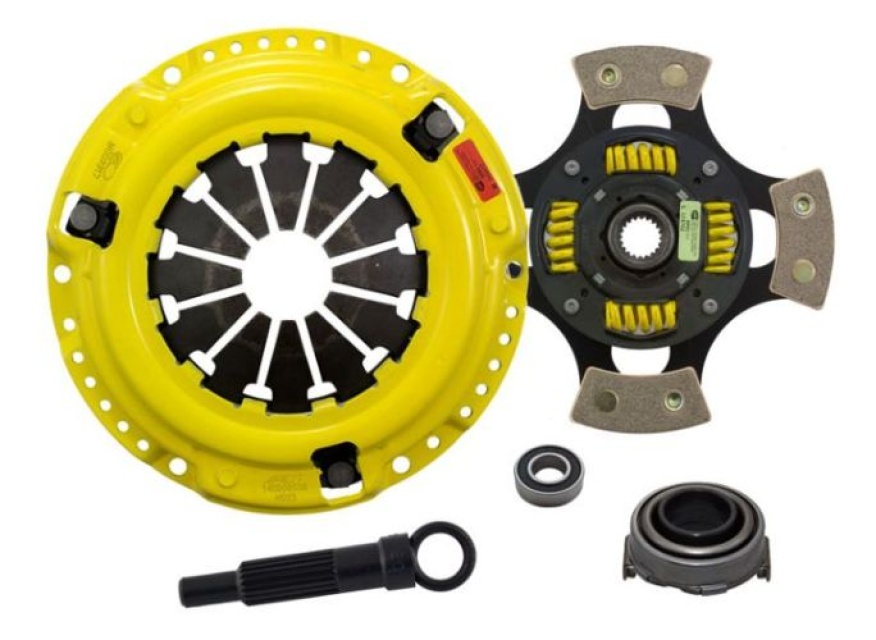

Kit includes:
4212104 ACT 4 Pad Sprung Race Disc
AT20 ACT Alignment Tool
H023 ACT Heavy Duty Pressure Plate
PB1002 ACT Pilot Bearing
RB820 ACT Release Bearing
Kitet passar:
Honda Accord 1998-2003 1.6L L4 1590cc (D16B6)
Honda Civic 1996-1998 1.6L L4 1590cc iLSiSR (D16Y7D16Y8)
Honda CRX Del Sol 1992-1998 1.5L L4 1493cc
Honda Civic 2001-2005 1.7L L4 1668cc i ESi LS (D17A8D17A9)
Honda Civic 1992-1996 1.5L L4 1493cc DXiLSiVEi (D15B2D15B7D15Z1)
Honda Civic 1992-1996 1.6L L4 1590cc ESi (D16Z6D16Z9)
Honda Civic 1998-2000 1.6L L4 1590cc iLSiSR (D16Y7D16Y8)
Honda Civic 2001-2005 1.4L L4 1.396cc (D14Z6)
Honda Civic 1998-2000 1.5L L4 1493cc VTEC-E (D15Z6)
Honda CRX Del Sol 1992-1998 1.6L L4 1590cc ESi (D16Z6D16Y8)
Honda Civic 1998-2000 1.4L L4 1396cc (D14A3D14A4D14Z2)
Honda Civic 1996-1998 1.5L L4 1493cc VTEC-E (D15Z6)
Product video

Technical specification

Article nr:
actHC5-HDG4

Manufacture Partnumber: HC5-HDG4
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
