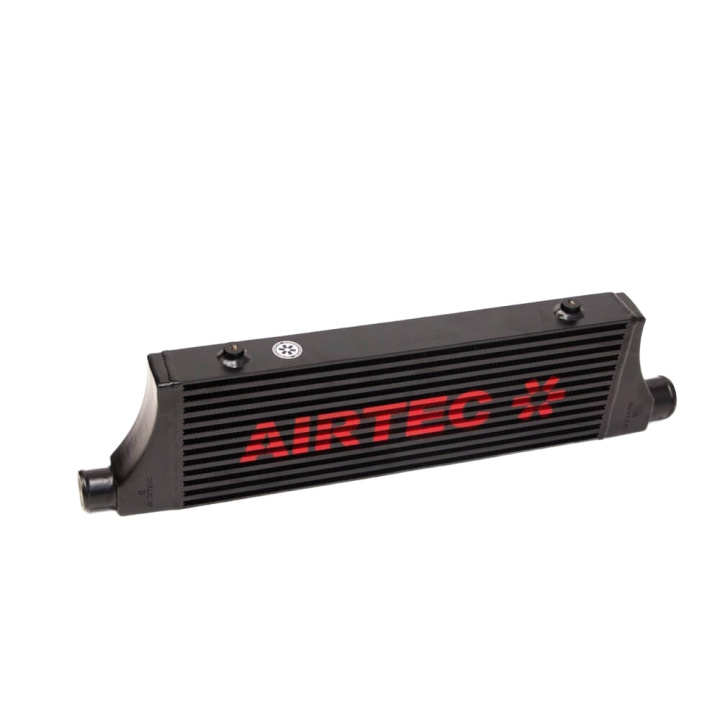

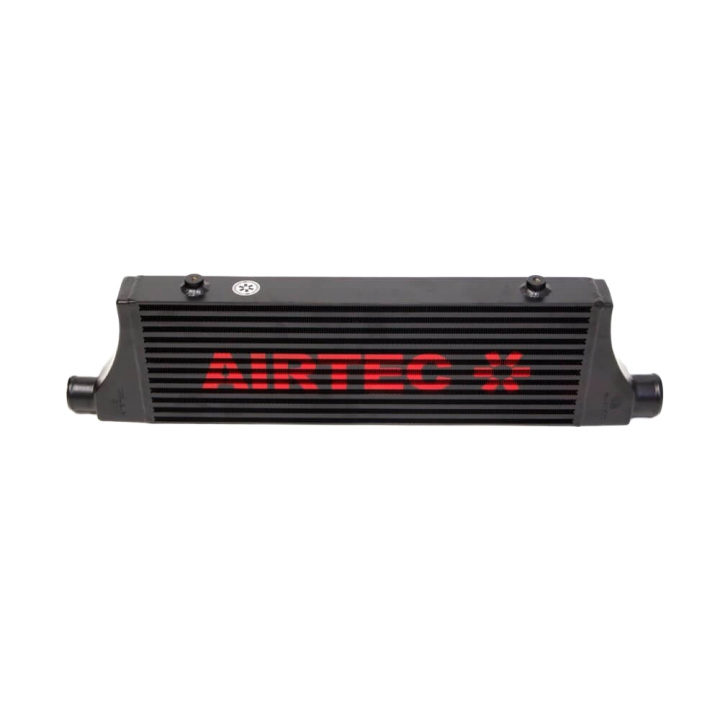

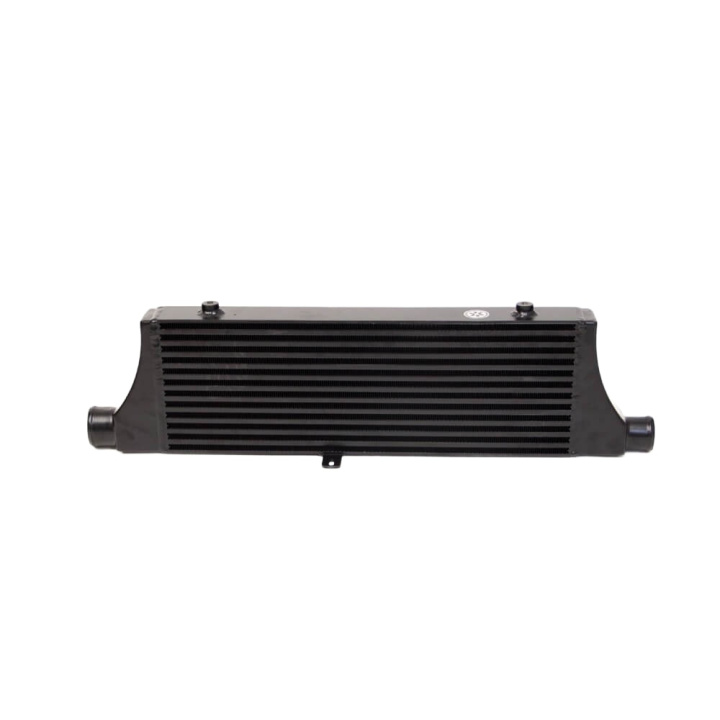

Fiat 500 Abarth 2008+ Intercooler Kit AirTec
Comes in black with black hoses without logo if not specified!
For manual car.

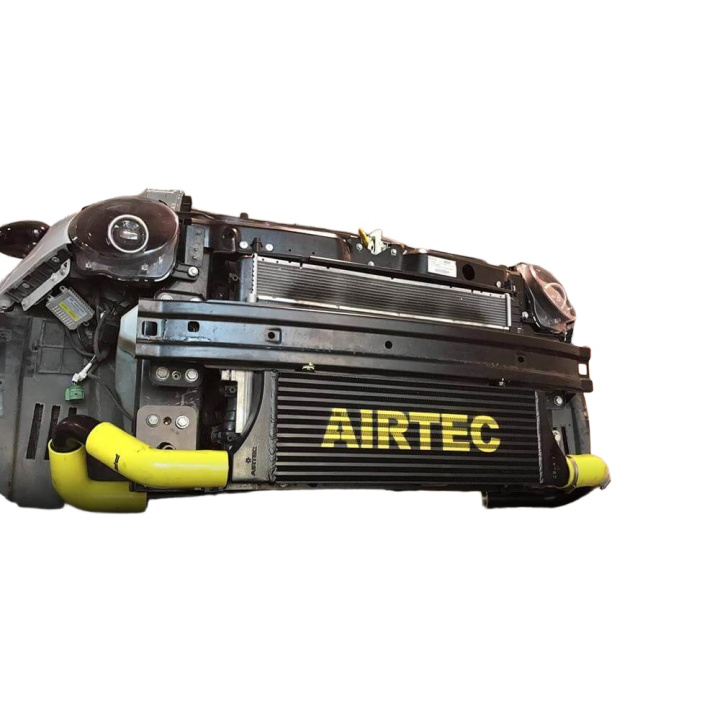

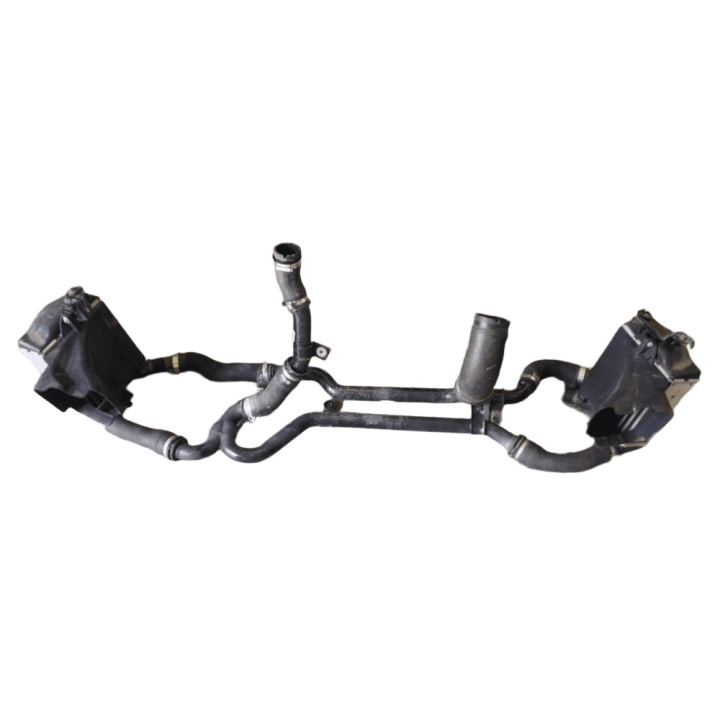

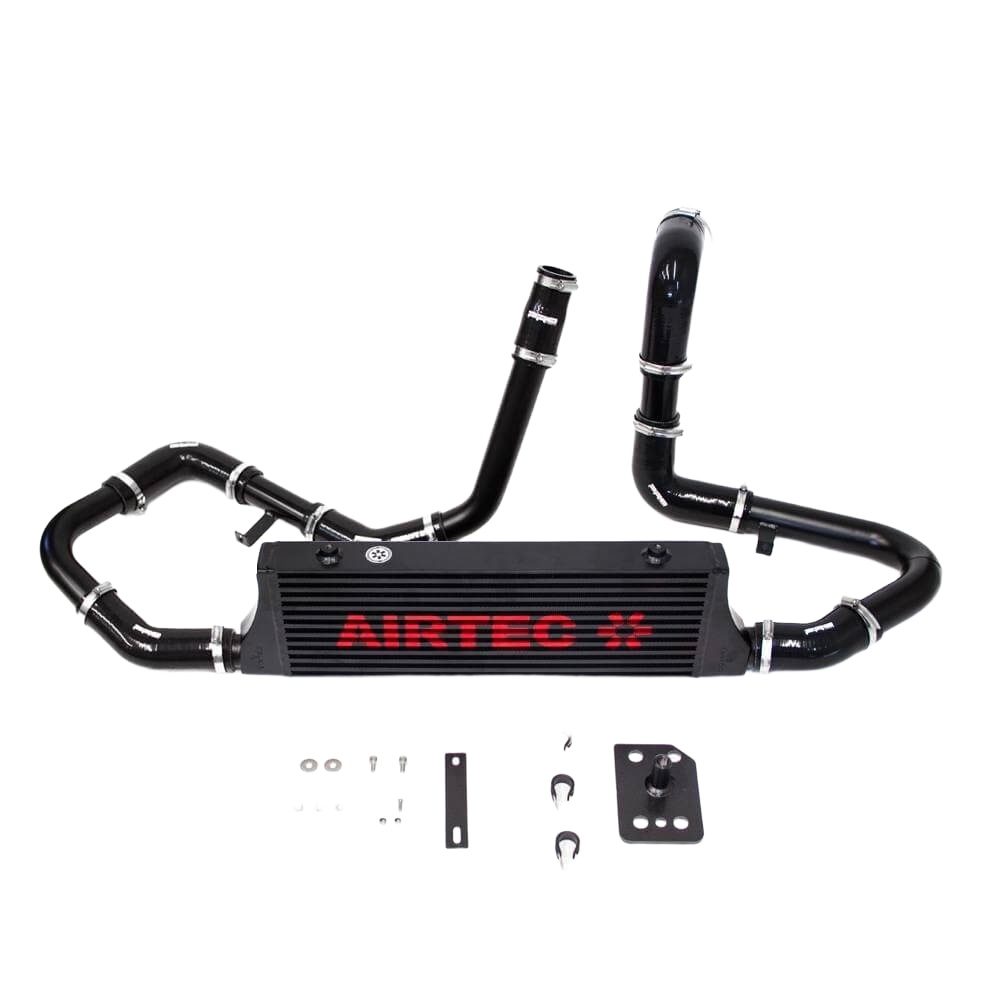

Replaces very restrictive twin intercooler setup and lengthily pipe-work, for AIRTEC’s high flow 60mm core intercooler and shortened alloy pipe kit, we keep fast turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output

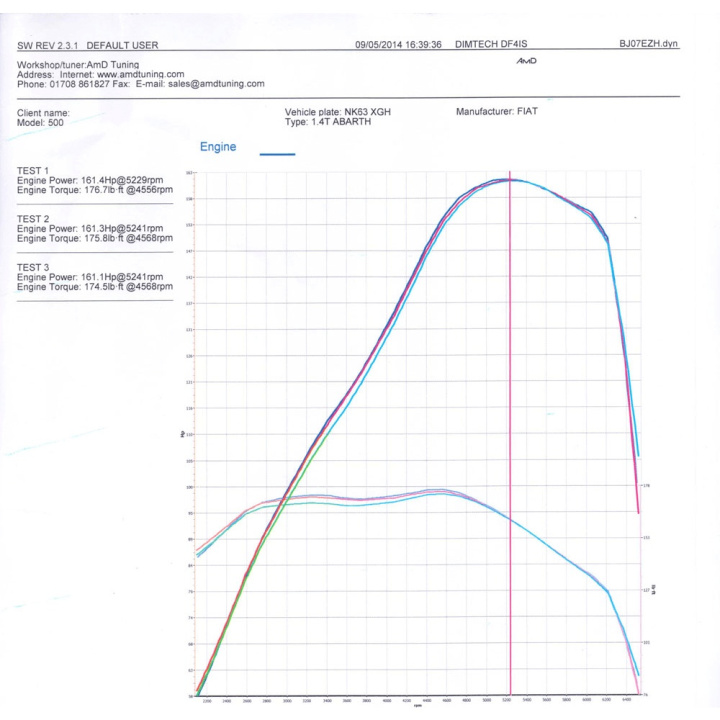

- Dyno test results – results taken from Fiat 500 Abarth, fitted with cat back exhaust and AIRTEC FMIC
- Run 1. 120 degree into the intercooler and 22 degree out of the intercooler
- Run 2. 122 degree into the intercooler and 22 degree out of the intercooler
- Run 3. 123 degree into the intercooler and 22 degree out of the intercooler
- Conclusion, the AIRTEC intercooler dropped the intake tempertures by 100 degree on each run and did not suffer from heat soak.
Features:
- 60mm thick proven bar and plate core, specced to AIRTEC design
- AIRTEC logo’d Cast end tanks for improved Airflow and un-beatable stength
- Dyno proven, gain BHP
- Lower intake temps means safer engines ‘FACT’
- Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up
- Fitting takes 2-3 hours
- 3 year un-limited mileage warranty
- Available in Pro-Series satin Black or Natural Silver
- AIRTEC logo available @ no extra charge
- Un-beatable value for money
Will fit Abarth 500 / 595 models fitted with the IHI turbo – 135, 140, 145 & 160 bhp models
- Height – 205mm
- Width – 820mm
- Thickness – 65mm
Registered Design Right number: 6023445
