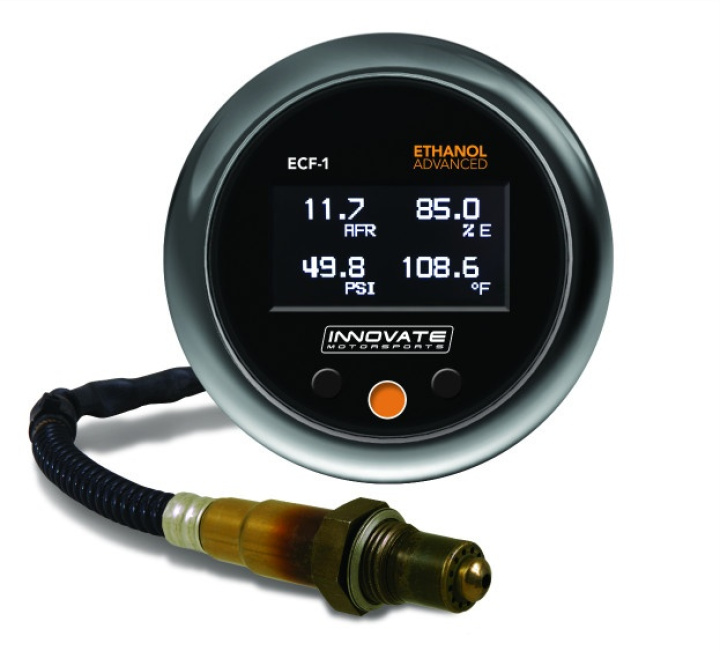

The Ethanol Advanced gauges combine Innovate Motorsports'' patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand! Includes Innovate MTS serial comms for use with MTS enabled devices to add additional logging channels for analysis with powerful LogWorks PC software.
KEY FEATURES
- 0-145 PSI[10BAR] Fuel Pressure Sensor
- 100 pct. Digital Wideband Air/Fuel Ratio Technology
- 4-Configurable Analog Outputs
- 52mm [2-1/16 in.] Dia. Gauge w/Interchangeable Faceplate/Bezel
- Bosch™ LSU 4.9 Wideband O2 sensor

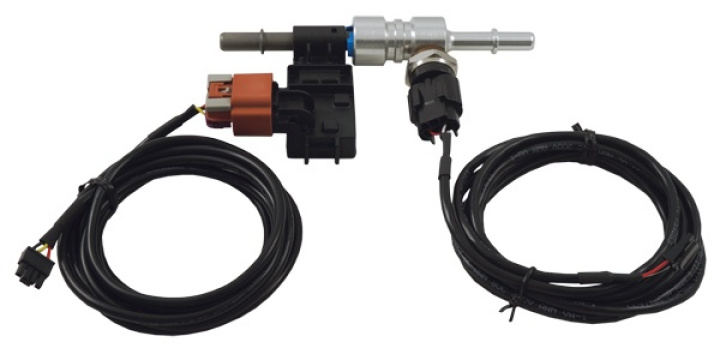

- Four-In-One Ethanol Content; Fuel Temp; Fuel Press.; Wideband AFR
- No PC Required For Configuration

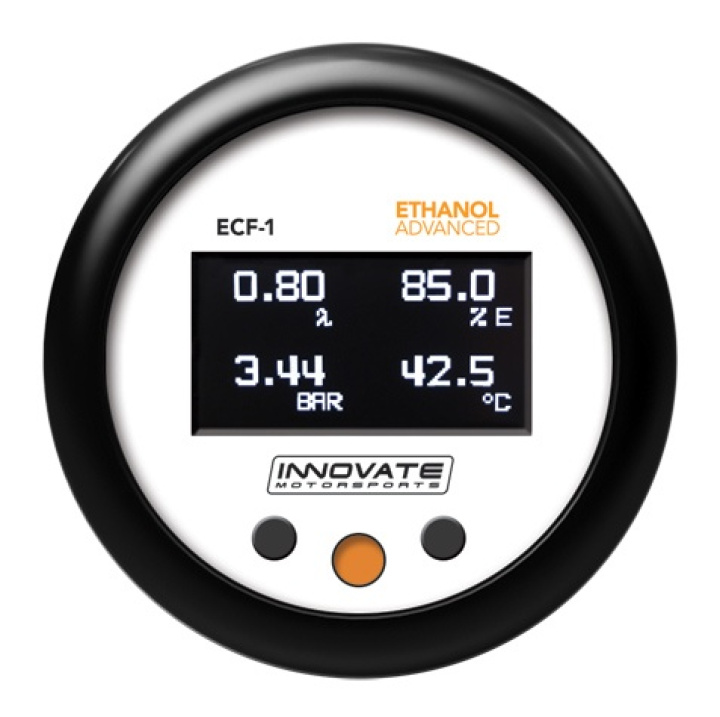

- OLED User Configurable Display; On Screen Error Reporting
- Patented DirectDigital™ Wideband Sensor Control
- Warning Indicator LED For Low Fuel Pressure[User Programmable]
RANGE
- 0 - 145 PSI (10 BAR) / 0 - 100% / -40 - 257 °F (-40 - 125°C) / 7.4:1 - 22.4:1 AFR (0.5 - 1.5 LAMBDA)
INSTALLATION AND SETUP
Installation of the ECF-1: (FUEL) Ethanol Advanced Gauge Complete Kit is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Contact us if you have any questions.
