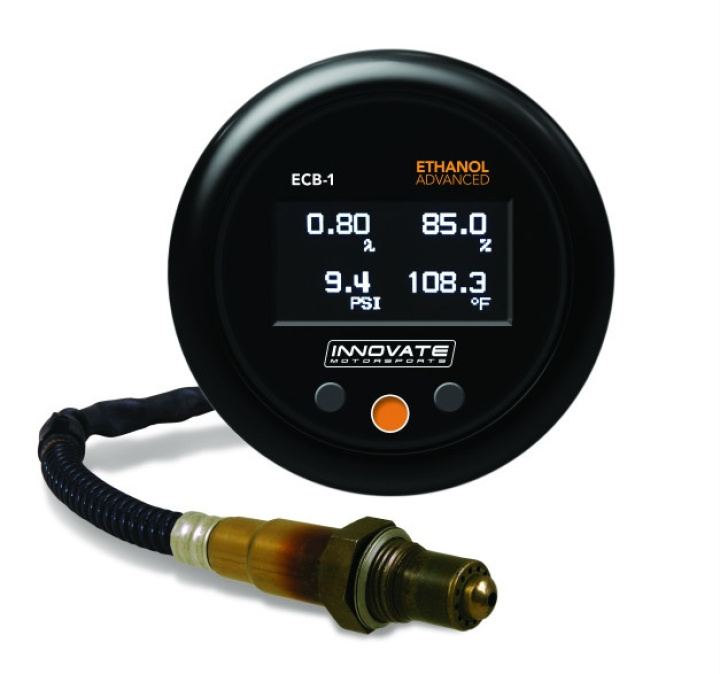

The Ethanol Advanced gauges combine Innovate Motorsports'' patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand! Includes Innovate MTS serial comms for use with MTS enabled devices to add additional logging channels for analysis with powerful LogWorks PC software.
KEY FEATURES
- 3-Configurable Analog Outputs
- 4 BAR MAP Sensor; Pressure Range: -29inHG to 43.5PSI; -1 to 3 BAR
- 52mm [2-1/16 in.] Dia. Gauge Body
- Boost Vision; Real-Time Calculated Approx. Of ECUs Boost Limit
- Bosch™ LSU 4.9 Wideband O2 sensor

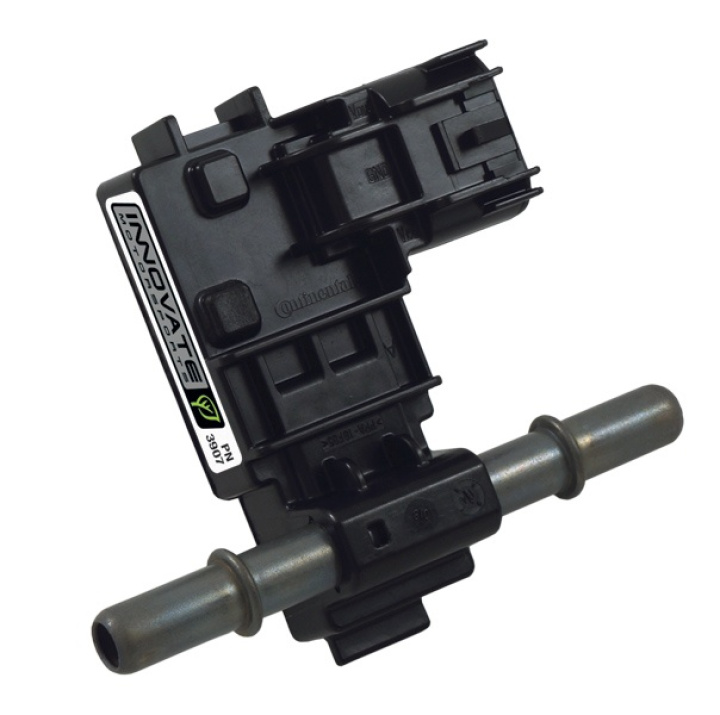

- Four-In-One Ethanol Content; Fuel Temp; Fuel Press.; Wideband AFR
- Interchangeable Bezels; Black and Silver Included
- Interchangeable Faceplates; Black and White Included
- OLED Configurable Display[One; Two; or Four Channel Viewing Mode]
- Patented DirectDigital™ Wideband Sensor Control
RANGE
- 29 inHG - 43.5 PSI (-1 to 3 BAR) / 0 - 100% / -40 - 257 °F (-40 - 125°C) / 7.4:1 - 22.4:1 AFR (0.5 - 1.5 LAMBDA)
INSTALLATION AND SETUP
Installation of the ECB-1: (BOOST) Ethanol Advanced Gauge Complete Kit is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Contact us if you have any questions.
