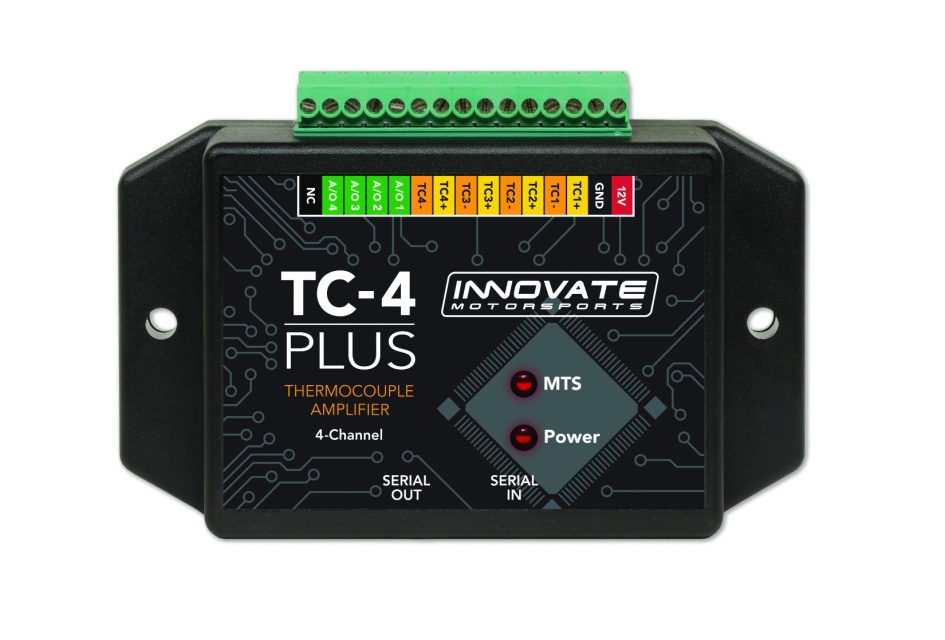

The TC-4 PLUS is 4 channel type-K thermocouple amplifier device that can be used a stand-alone system or as part of a MTS (Modular Tuning System). The TC-4 PLUS includes a digital input/output, 4 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, or standalone ECUs. The TC-4 is also a key component of Innovate Motorsports'' Modular Tuning System (MTS). Using the TC-4 PLUS''s serial ports you can daisy-chain other Innovate devices such as the MTX-L, LM-2, LC-2, and SSI-4 PLUS.
KEY FEATURES
- 4-Configurable Linear 0-5V Analog Outputs; One Per Input
- Adds 4 Temperature Inputs To An MTS Log Chain
- Can Be Used To Measure Other Temperature Metrics
- Incl. Serial Program Cable; Molex to Molex Patch Cable; Manual
- K-Type Thermocouple Amplifier
- Temperature Range: 32-1999 Deg. F.; 0-1093 Deg. C.
INSTALLATION AND SETUP
Installation of the TC-4 PLUS: 4 Channel Sensor Interface is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Contact us if you have any questions.
