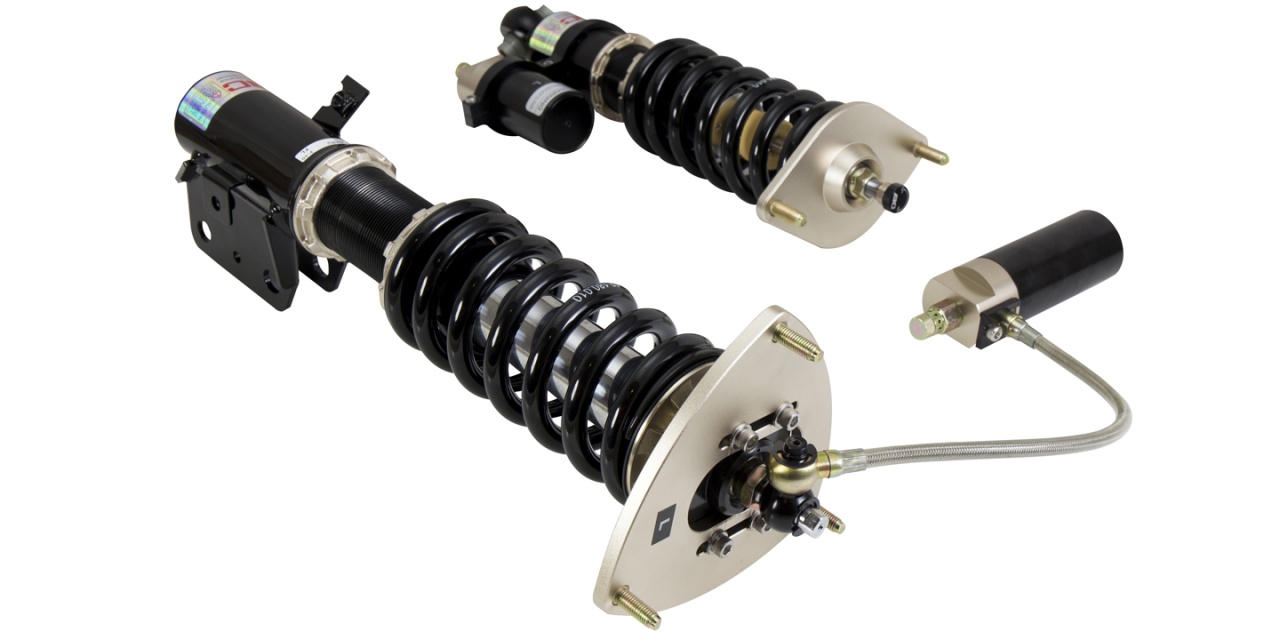

The BC HM Series Coilover Suspension Kit features 30 levels of separate rebound and compression damping force adjustment, full-length height adjustment allowing extremely low ride height, and external reservoirs. The BC HM Series Coilover has been especially designed and developed to meet the demands of the serious driver for professional competition use. Its external reservoirs allow more oil to be contained than a conventional coilover, to slow down oil temperature increase.
The HM is an higher end of product than ER coilovers. It is available for vehicles with McPherson struts only, and its inverted shock cartridge for McPherson strut utilizes braided hose to connect remote canister through top mounts. The long braided hose gives installer more freedom when locating caniters in the engine compartment (installers take full responsibility on where to locate the remote canister).
The separate compression adjustment provides a wider range of tuning settings than a traditional coilover, in which only slight changes occur to compression when adjusting the rebound.
The BC HM Series Coilover offers complete adjustment for the individual that demands serious performance and wants to fine tune their suspension setup to their needs
BC HM Series Coilover Standard Features:
Designed for 100% Track Use
- Front Top Mounted External Reservoir Braided hose design on inverted shocks
- Camber plates or pillowball top mounts all around (A few car models do not use top mounts)
- Rear External Reservoir
- Twin Piston Design
- Separate Compression & Rebound Adjustment
- 30 Level Damping Force Adjustment
- Full-Length Height Adjustment
- Anodized Alloy Casing
- CNC Machined
- T6061 Alloy Locking Ring
