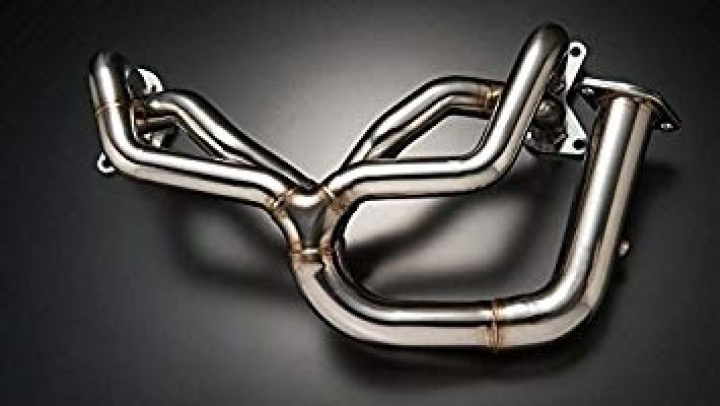

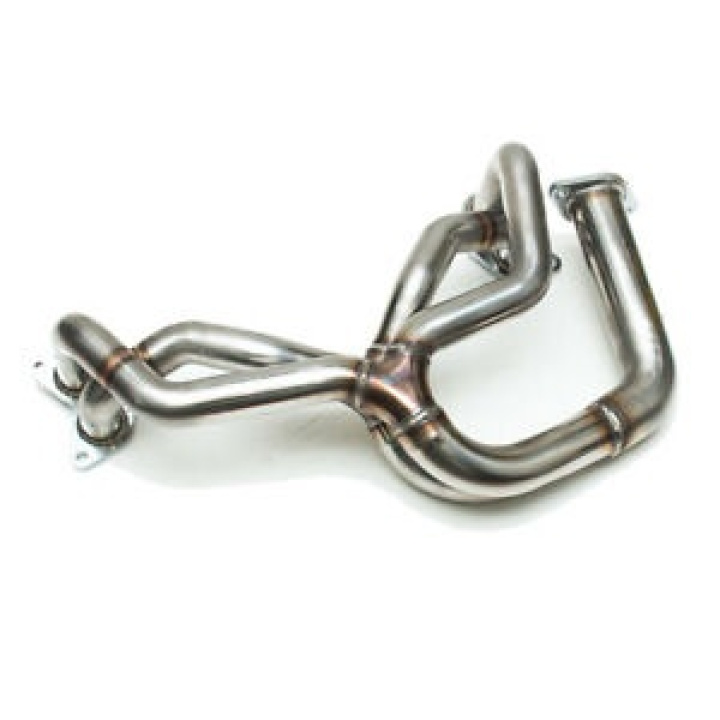

HKS 4-2-1 Stainless Steel Exhaust Manifold - Toyota GT86 / Subaru BRZ (2012+)

Name: BRZ / GT86 12- HKS 4-2-1 Stainless Exhaust Manifold
Brand: HKS
SKU: 33002-BT001
Price: 1391 EUR
Availability: InStock

The HKS 4-2-1 Stainless Steel Exhaust Manifold is designed for the Toyota GT86 and Subaru BRZ (2012+), engineered to maximise the performance of the FA20 boxer engine. By retaining the efficient 4-2-1 layout of the factory manifold while eliminating the primary catalytic converter, the system significantly improves exhaust flow, delivering increased mid-range torque and greater peak power.

The factory manifold is designed to provide good low-end drivability, but the primary catalytic converter creates back pressure and exhaust turbulence that restrict performance, particularly through the mid-range. HKS has optimised the manifold to minimise these restrictions, resulting in a more responsive engine, stronger acceleration, and improved power delivery throughout the RPM range.

At higher engine speeds, the manifold allows the engine to breathe more freely, enhancing the naturally aspirated high-RPM character of the FA20 engine. For maximum performance, HKS recommends pairing the manifold with the HKS Hi-Power SPEC-L Exhaust System and the HKS Front Pipe (without catalytic converter), providing additional power gains and a more distinctive naturally aspirated exhaust note.

Constructed from SUS304 stainless steel, the manifold offers outstanding corrosion resistance, excellent heat resistance, and long-lasting durability, even under demanding track conditions.

Please note: This exhaust manifold is decat and intended for off-road and motorsport use only. Removing the primary catalytic converter may trigger the Check Engine Light (CEL). HKS includes components to help prevent this when using the manifold alone; however, if it is installed together with a decat front pipe, the Check Engine Light will illuminate.

Features

Fits the Toyota GT86 and Subaru BRZ (2012+).
4-2-1 stainless steel exhaust manifold.
Decat design for maximum exhaust flow (off-road and motorsport use only).

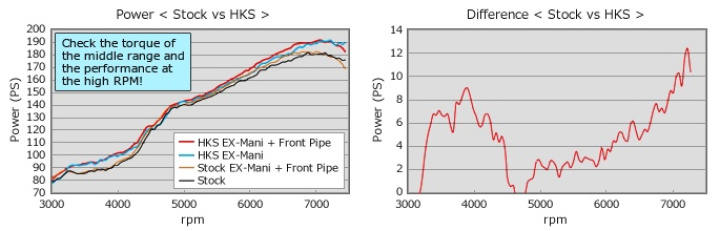

Increased mid-range torque and higher peak power.
Optimised 4-2-1 layout for strong performance from mid to high RPM.
Quicker throttle response and improved acceleration.
Manufactured from SUS304 stainless steel.
Recommended for use with the HKS Hi-Power SPEC-L Exhaust System and HKS Front Pipe for maximum performance.
Outstanding corrosion and heat resistance.

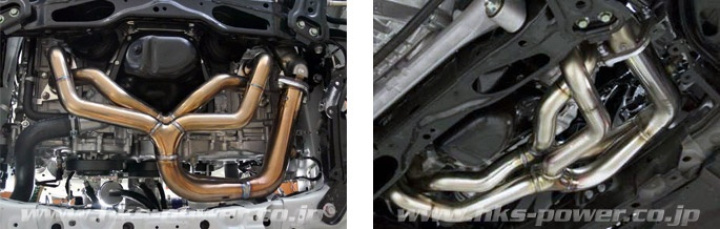

Direct-fit installation with premium HKS quality.

Product video

Technical specification

Article nr:

33002-BT001

Manufacture Partnumber:

33002-BT001
