The 8-Channel K-Type EGT CAN Module uses an integrated cold junction sensor to ensure lab-grade temperature readings across all eight channels. It has the ability to read better than 1% full scale, even at the extremes of the temperature range (-200 to 1372 degC/-328 to 2501 degF). The Module also includes open circuit/fault detection to notify you if a sensor loses its connection and/or needs to be replaced.
WORKS WITH NON-AEM DEVICES WITH CONFIGURABLE CAN BUS!
The Module utilizes flexible CAN configuration jumpers which allow it to be used with just about any 3rd party devices that have a configurable CAN bus. Selectable parameters include CAN bus speeds (250k, 500k, 1M), selectable header length (11- or 29-bit) and selectable base address, which allows two units to be daisy-chained together on the same bus.

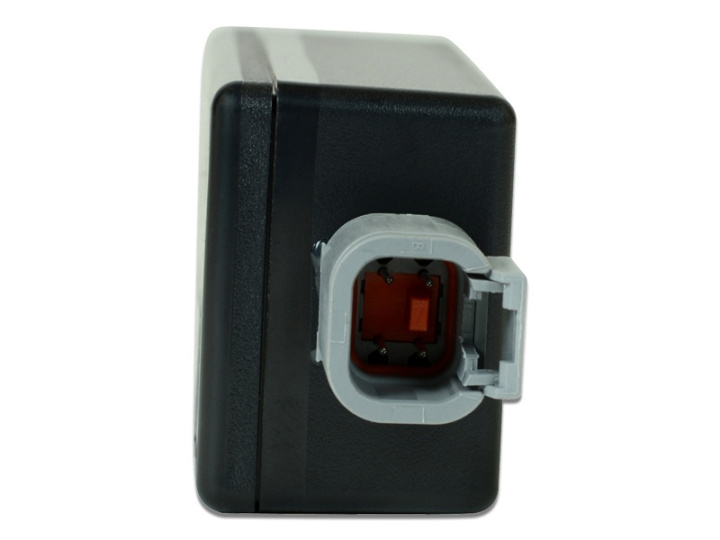

Power is supplied from the 4-pin DTM connector when paired with a CD-5 Carbon or CD-7 Digital Dash, but may require wiring to a power source on 3rd party devices that do not provide power from the connected CAN device. AEM provides 4-way DTM-style connector plug in the kit to simplify the connection to non-AEM devices). AEMnet CAN bus extension cables are available separately in 2, 5- and 10-foot lengths.
Features:

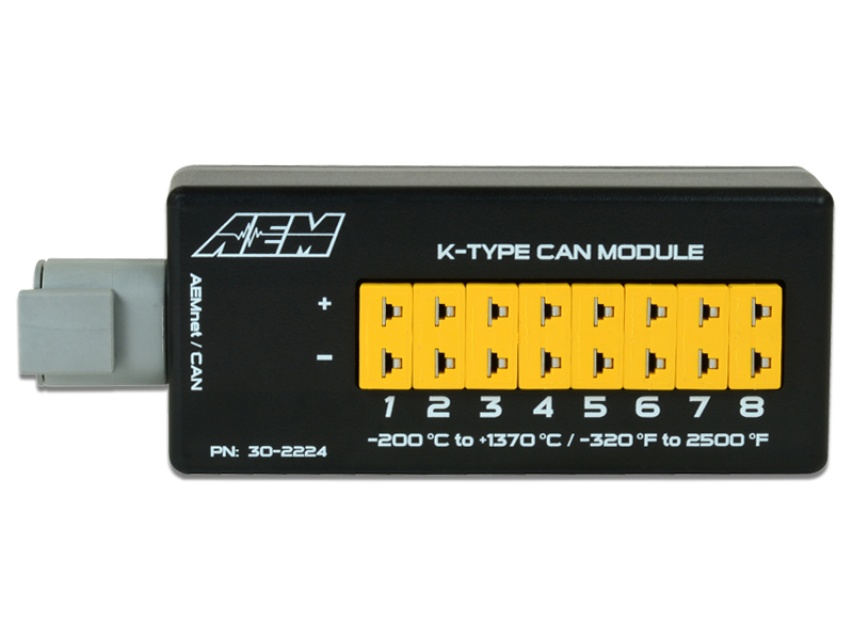

- Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
- Uses common miniature thermocouple sockets
- Daisy-chain two modules together for up to 16 temp inputs through a single plug!
- Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)
- Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 at this time)
- Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
- Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
- Temperature resolution 0.1 degC (0.18 degF)
- Integrated open circuit/fault detection

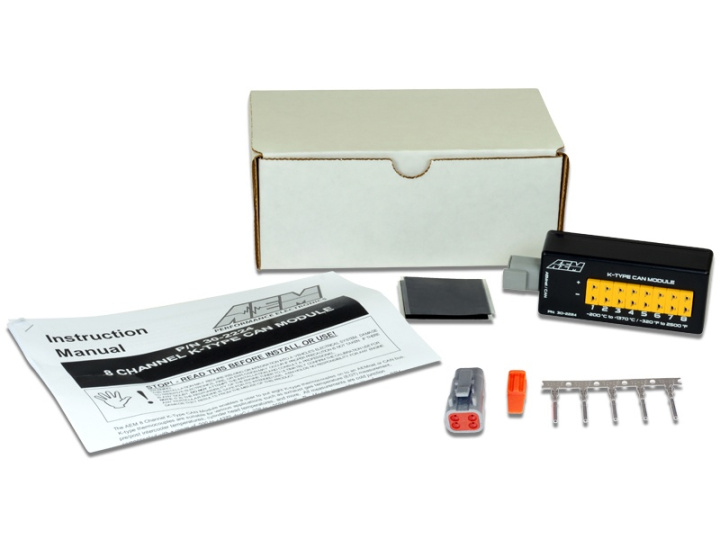

- Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting
