5.875 Air House 2 Air Bag Universal Air

Name: 5.875 Air House 2 Air Bag Universal Air
Brand: Universal Air
SKU: UAS-02-2600
Price: 182 EUR
Availability: InStock

Article nr:

UAS-02-2600

Universal Air Air House 2 – compact air spring with 6.5” travel, high stability, and ideal for advanced air suspension setups.

Delivery: 2-4 business days

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
Air House 2
By Universal Air

Great things come in compact packages!

The Air House 2 was designed to maximize the available space for your typical 6" Diameter bag with room to spare. With a Super Short 2" Collapsed, and massive 8.5" extended height, resulting in 6.5" of available bag travel and even more at the Wheels with leveraged suspension!

More travel then most bags in the same diameter class. Best suited for your Control Arm Front suspension, or Link rear system where the bags are mounted on the bar to take advantage of leverage.

No Center Ring

Single bellow construction greatly increases the stability of the air spring allowing for increased angle and load applications without the banana center kick out.

Maximum Outside Diameter when compressed is 5.875" and will shrink down to about 5.5" when inflated. Minimizing frame cutting in most applications.

With the added stability there is a very noticeable reduction in vehicle "sway" compared to a typical double convoluted.

Specifications
2" Collapsed Height
8.5" Extended Height
5.875" Max Diameter
Available in 1/4", 3/8" and 1/2" NPT
3.5" - 5.25" Optimum Ride Height
Up to 2600 Lbs. Force at 115 PSI
Heavy Duty Thick Rubber Construction
615 PSI Tested Burst Pressure
Front or Rear Installation
Straight or Angled Installation

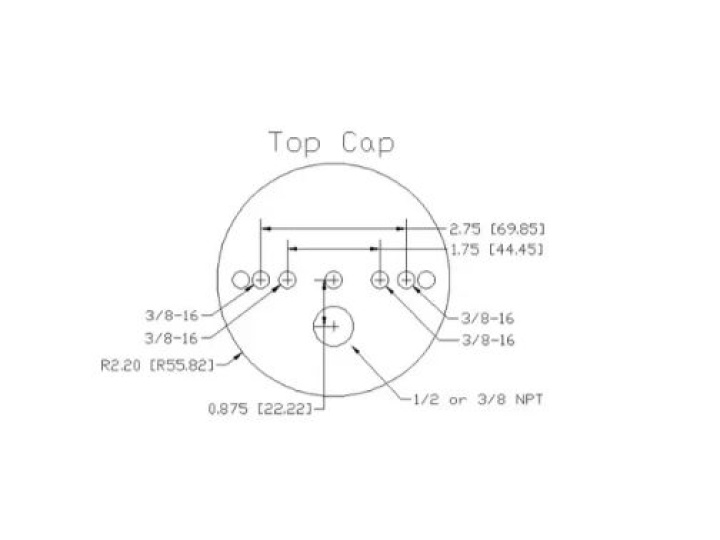

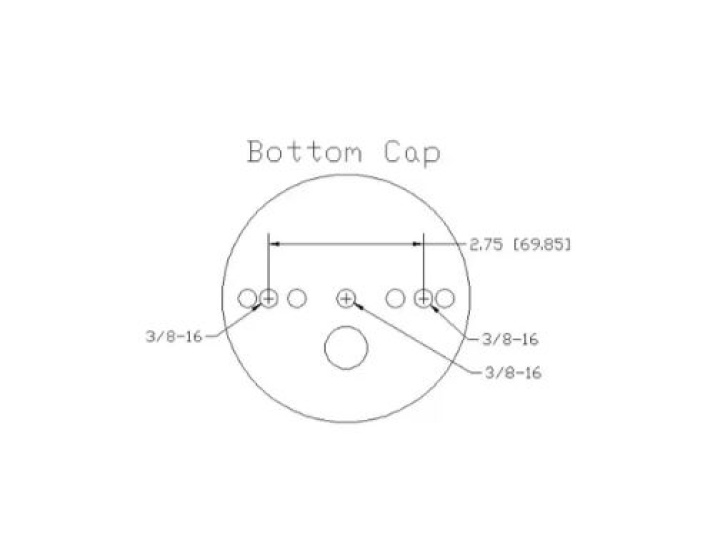

Industry Standard Bolt Pattern
Machined 6061 Aluminum Caps

Product video

Technical specification

Article nr:
UAS-02-2600

Manufacture Partnumber: 02-2600
Suitable for
Brand
Universal Air Suspension was founded in early 2000 with one goal in mind. Manufacture an air spring that will out perform all others. Universal Air is operated out of our 15,000 Sq. Ft. facility in San Bernardino, California where we manufacture our Air bags and distribute all Air suspension accessories.
Currently we manufacture the only Air bag that is designed for use with your existing strut. Our Aero Sport has been patented in the U.S.A, Australia, Japan and Canada.
We now produce an Air Spring that extends several inches higher then any other bag in its size class. Allowing for the extra clearance required without having to run a Triple Bellow
