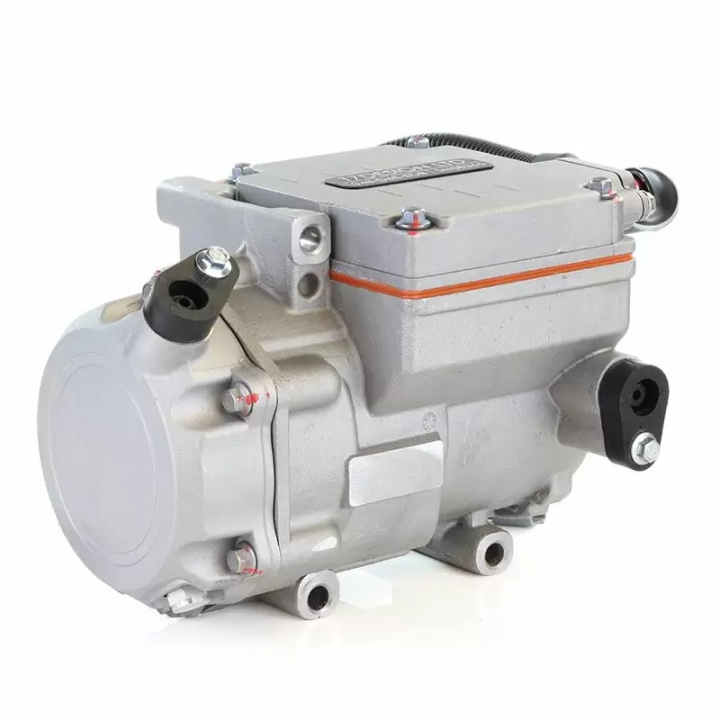

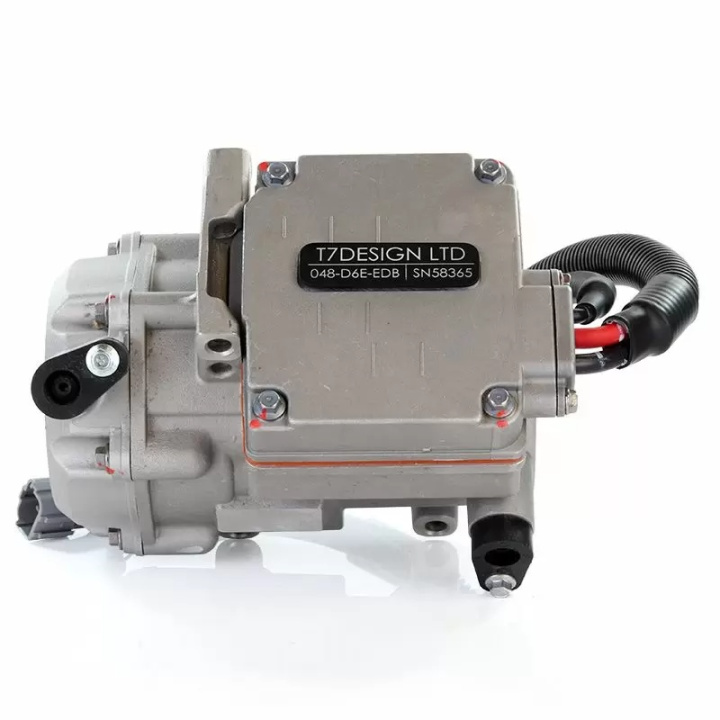

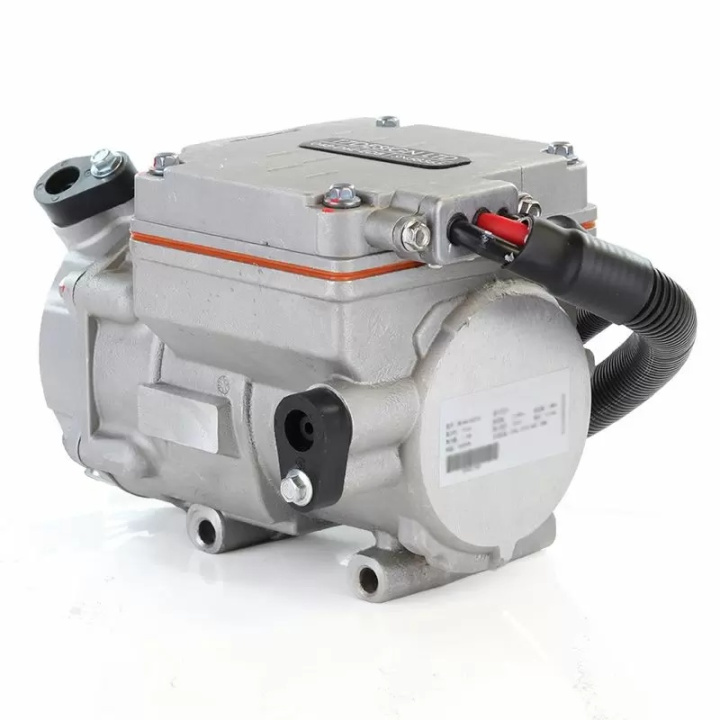

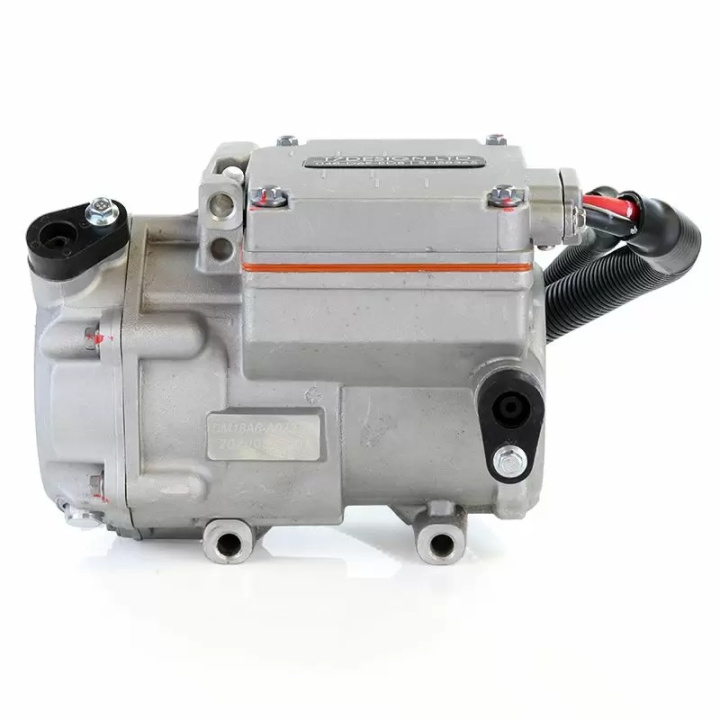

Electric Scroll Compressor 27cc 48v 4.6 kW 3 Speed
A fully electric 48v Air Conditioning Scroll Compressor with 3 speed control. These compact units are ideal for installation into applications where belt drives are not available or space is at a premium. This compressor is very simple to wire in, and can be operated with a pair of rocker switches or a 4 position rotary switch.
| Performance | Metric | Imperial & Other |
| Refrigerating Capacity (3000rpm) | 2.15 kw | 7.3 K Btu/hr |
| Electrical Consumption | 1.10 kw |
| Current @ 48 VDC | 22.9a |
| Refrigerating Capacity (4500rpm) | 3.26 kw | 11.1 K Btu/hr |
| Electrical Consumption | 1.45 kw |
| Current @ 48 VDC | 30.2a |
| Refrigerating Capacity (6000rpm) | 4.60 kw | 15.7 K Btu/hr |
| Electrical Consumption | 2.36 kw |
| Current @ 48 VDC | 49.2a |
| Operating Range | Metric | Imperial & Other |
| Evaporator Temperature | -17 °C ~ 21 °C | 2 °F ~ 70 °F |
| Condenser Temperature | 25 °C ~ 75 °C | 77 °F ~ 167 °F |
| Start Temperature | -32 °C ~ 70 °C | -26 °F ~ 158 °F |
| Working Temperature | -32 °C ~ 100 °C | -26 °F ~ 212 °F |
| Storage Temperature | -40 °C ~ 105 °C | -40 °F ~ 221 °F |
| Motor Overheat Protection | 100 °C | 212 °F |
| Refrigerant | R134a, R1234YF |
| Operating Voltage Range | 35 - 65 VDC |
| Maximum Mounting Rotation | 8° |
| Maximum Mounting Tilt | 5° |
| Compressor Parameters | Metric | Imperial & Other |
| Discharge Capacity | 27.0 cc/rev | 1.65 ci/rev |
| Weight | 5.9 kg | 13.0 lbs |
| Safety Valve Pressure | 4.0 Mpa | 580 psi |
| Compressor Oil Capacity | 120 cc Zerol Ester 68SL Oil |
| Refrigerant Capacity | <500g |
| Compressor Speed Range | 3000 - 6000 rpm |
| Protection Rating | IP67 |
| Part Number | 547-AA6-058 |

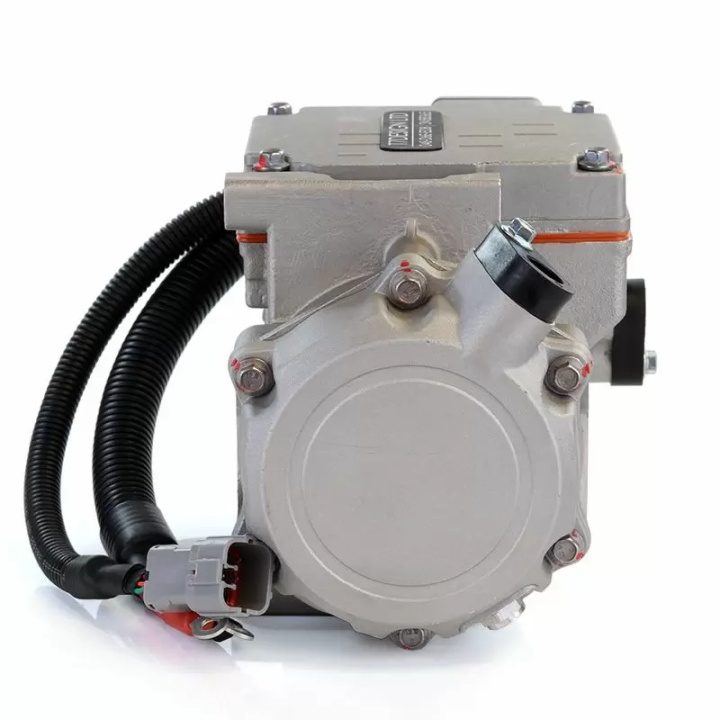

This electric AC Compressor is very simple to wire in, with 2 Looms in total; one for power and one for control, two rocker switches or a 4 position rotary switch is required to control the compressor speed.
| Use | Wire Colour | Recommended Wire Size |
| Power | Orange | 10mm2 |
| Earth | Orange | 10mm2 |
| Use | Wire Colour | Recommended Wire Size |
| Earth | Black (Pin 2) | 6mm2 |
| Low | Red (Pin 1) & Black (Pin 2) | 6mm2 |
| Medium | Grey (Pin 4) & Black (Pin 2) | 6mm2 |
| High | Brown (Pin 3) & Black (Pin 2) | 6mm2 |
We also carry a wide range of automotive wiring products such as relays, fuses, terminals, cable, switches & more.
