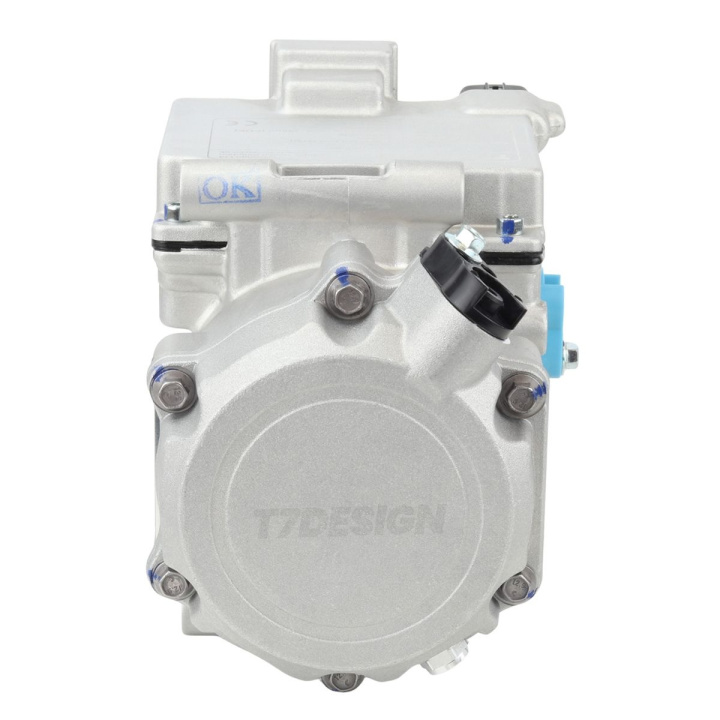

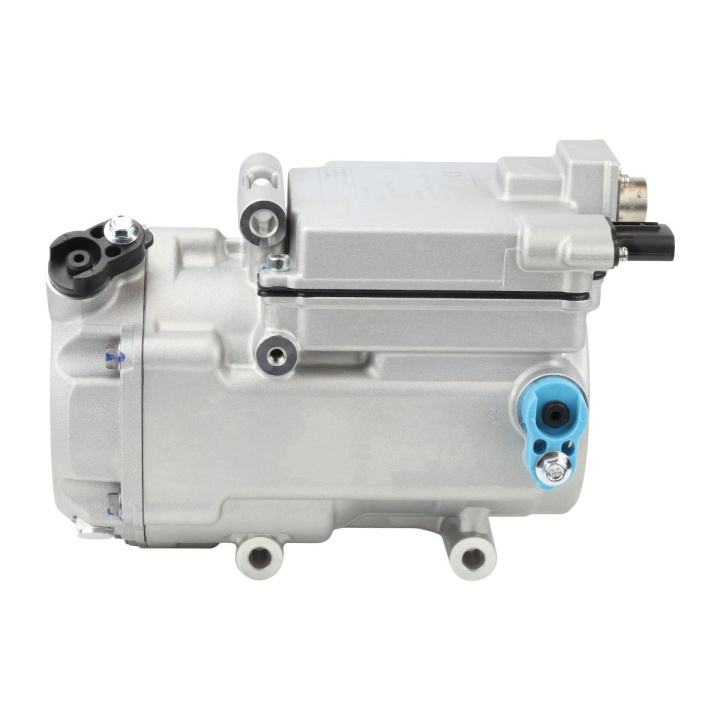

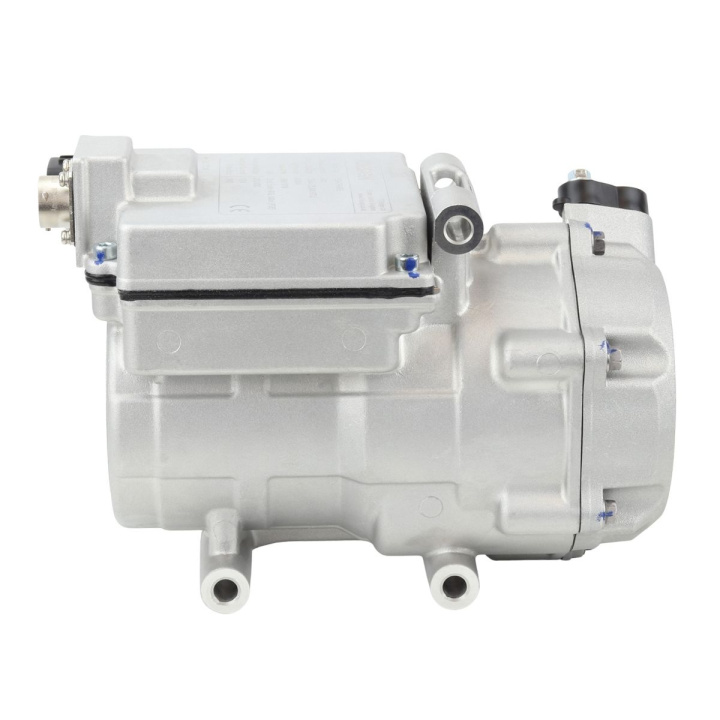

312VDC (220-425V) 34cc Electric Air Conditioning Compressor - PWM (2000 to 6000 RPM) - 7ED-CF0-65E
A fully electric 312v Air Conditioning Scroll Compressor with PWM speed control. These compact units are ideal for installation into applications where belt drives are not available or space is at a premium. This compressor is very simple to wire in, and can be operated with a PWM Controller.
- Wide operating DC voltage range (220-425 V DC, nominal ~312 V) – enables compatibility with many high-voltage vehicle battery systems or DC bus architectures.
- Variable speed control (PWM, 2000-6000 RPM) – allows dynamic capacity modulation to match cooling demand, reduce energy consumption and improve comfort.
- 34 cc displacement unit – provides ample cooling capacity for cabin HVAC or thermal management systems while remaining compact in size.
- Oil-lubricated scroll or rotary design (depending on variant) – ensures reliable long-life operation, smooth performance and low vibration.
- High efficiency & compact footprint – designed to optimize space in vehicle or mobile applications and reduce parasitic load on the powertrain.
- Refrigerant compatibility (typically R134a / R1234yf) – suitable for modern refrigerants; aligns with EV/HEV A/C system requirements.
- Built for automotive / mobile harsh-duty environments – robust electrical insulation, wide ambient temperature range, sealed construction.
- Plug-and-play control potential – accepts PWM speed control signal (and potentially CAN interface) enabling system integration with vehicle control modules.
- Reduced mechanical coupling – being an electric unit, avoids belt drives, clutch assemblies and parasitic drag – simpler installation in EV/hybrid conversions.

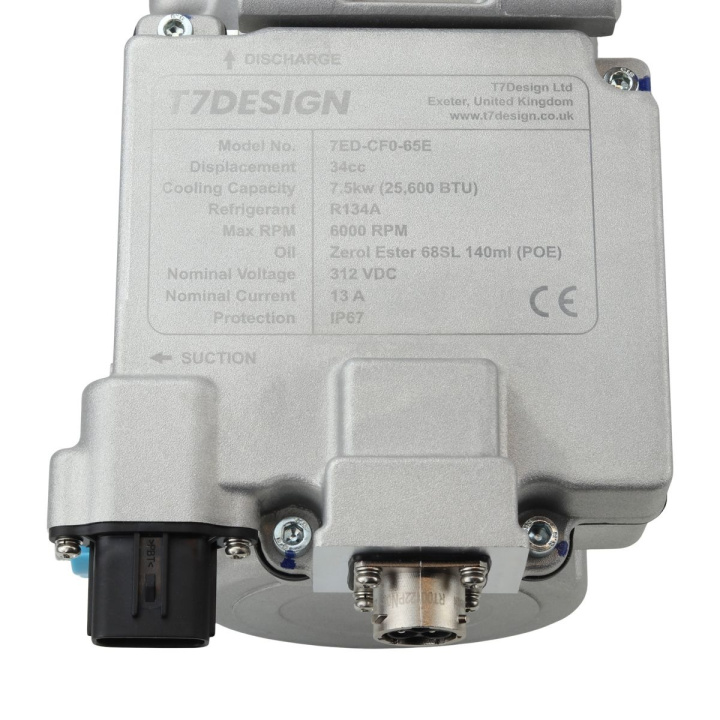

| Performance | Metric | Imperial & Other |
| Refrigerating Capacity (3000rpm) | 2.75 kw | 9.4 K Btu/hr |
| Electrical Consumption | 1.45 kw | |
| Current | 5a | |
| Refrigerating Capacity (4000rpm) | 3.78 kw | 12.9 K Btu/hr |
| Electrical Consumption | 1.93 kw | |
| Current | 6a | |
| Refrigerating Capacity (6000rpm) | 5.8 kw | 19.8 K Btu/hr |
| Input Power | 3.0 kw | |
| Current | 9.6a | |
| Test Condition | Pd/Ps=1.47/0.196 Mpa(G) SC=5 °C SH=10 °C | |
| Operating Range | Metric | Imperial & Other |
| Evaporator Temperature | -11 °C ~ 21 °C | 12 °F ~ 70 °F |
| Start Temperature | -32 °C ~ 70 °C | -26 °F ~ 158 °F |
| Working Temperature | -32 °C ~ 100 °C | -26 °F ~ 212 °F |
| Storage Temperature | -40 °C ~ 105 °C | -40 °F ~ 221 °F |
| Motor Overheat Protection | 100 °C | 212 °F |
| Refrigerant | R134a | |
| Operating Voltage Range | 220 - 425 VDC | |
| Maximum Mounting Rotation | 8° | |
| Maximum Mounting Tilt | 5° | |
| Compressor Parameters | Metric | Imperial & Other |
| Discharge Capacity | 34.0 cc/rev | 2.07 ci/rev |
| Weight | 6.4 kg | 14.1 lbs |
| Safety Valve Pressure | 4.0 Mpa | 580 psi |
| Compressor Oil Capacity | 120 cc PVE Oil | |
| Refrigerant Capacity | 1200cc | |
| Compressor Speed Range | 2000 - 6000 rpm | |
| Max Power | 4200 w | |
| Protection Rating | IP67 | |
| Part Number | 7ED-CF0-65E | |
The compressor is controlled via a PWM (Pulse Width Modulation) signal input. The speed can be adjusted from 2000 to 6000 RPM by changing the duty cycle of the PWM signal from 0% to 100%. The compressor also features a start-stop enable signal input (STB) which can be used to turn the compressor on or off.

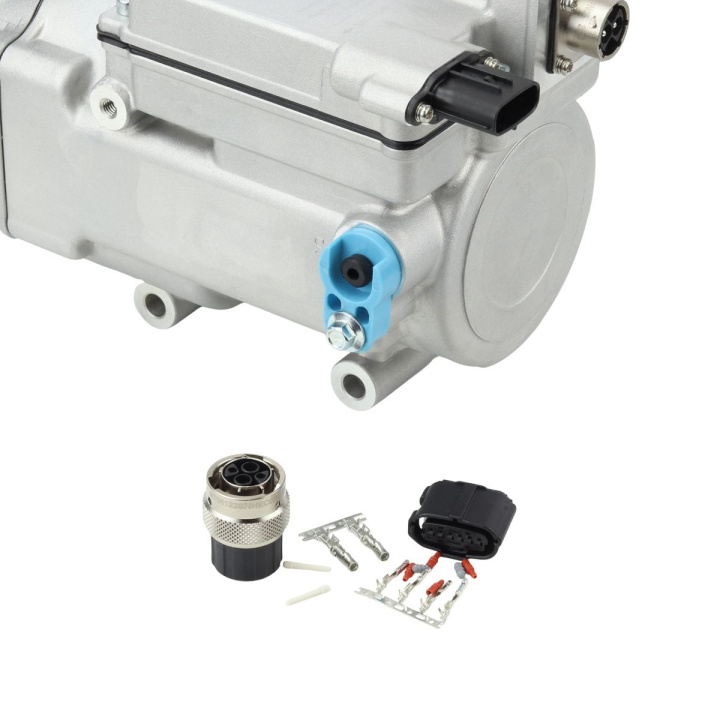

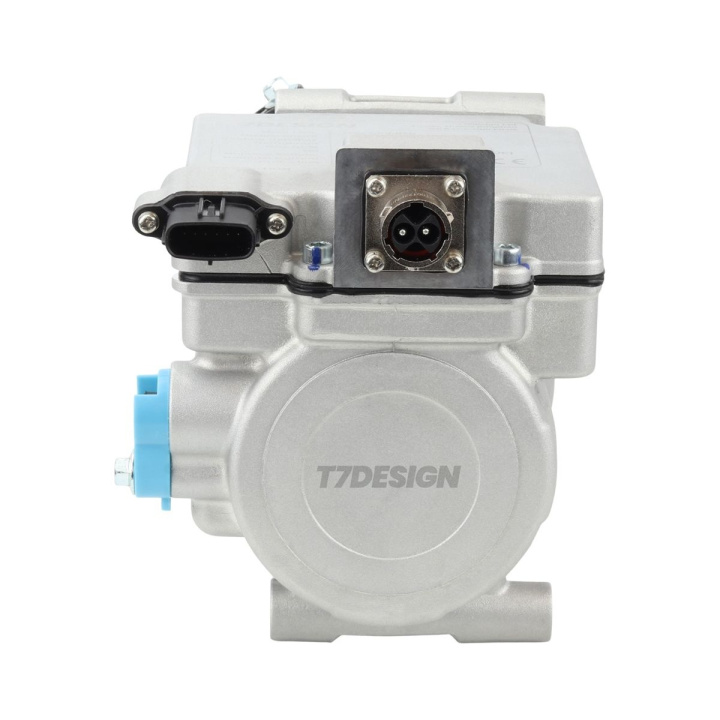

Power Port & Control Port Plugs & Pins Included.

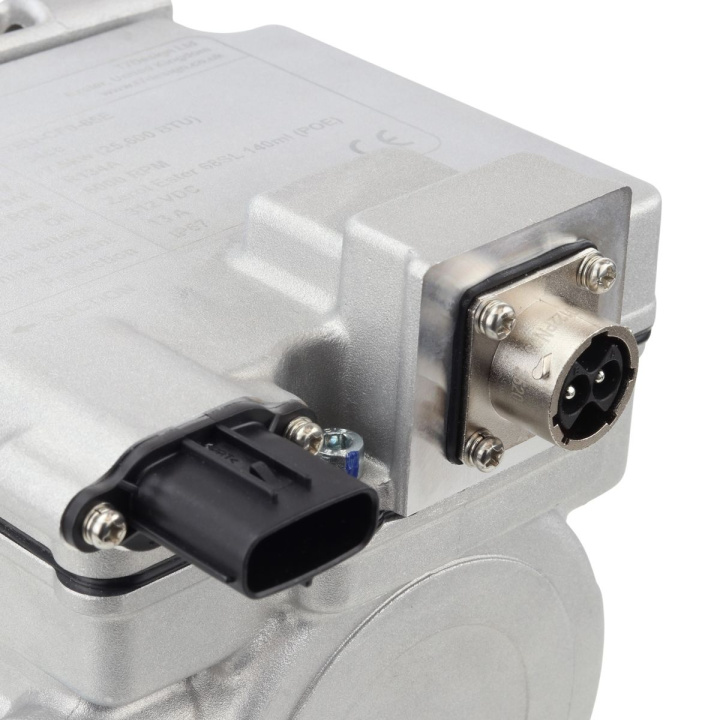

| Port | Pin | Definition |
| Power Port | A | 312V Positive input |
| Power Port | B | 312V Negative input |
| Control Port | 1 | 24V Positive |
| Control Port | 2 | STB-Compressor Start Stop Signal (low level - open - ON, High level - closed - OFF) |
| Control Port | 3 | PWM - Compressor Speed control Signal (Frequency 400Hz, duty cycle 0%-100%) |
| Control Port | 4 | 24V Negative |
| Control Port | 5 | CANH (used as a feedback signal only) |
| Control Port | 6 | CANL (used as a feedback signal only) |
T7Design high-voltage, variable-speed electric air-conditioning compressor is engineered for modern HVAC systems in electric vehicles (EVs), hybrid vehicles, mobile HVAC units or other applications requiring efficient, compact cooling with electronic control. With a 34 cc displacement, broad voltage compatibility (220-425 V DC, nominal ~312 V), and PWM (pulse-width modulation) control over speeds from 2000 to 6000 RPM, the compressor delivers precise cooling capacity, improved energy efficiency and integration flexibility. Ideal for retrofits, EV conversions or advanced cooling applications.
