Sporty handling combined with outstanding looks. With factory pre-configured damping
Note:
Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
When using original tires, wheel offset spacers may be required
Only for vehicles with ESP
When lowering more than 40 mm, the anti-sway bar must be retrofitted. Anti-sway bar conversion set without Xenon headlights: KW Part No. 685 50 000, Price: 229,67 â⬠incl. VAT Anti-sway bar conversion set for vehicles with Xenon headlights: KW Part No. 685 50 005, Price: 252,28 â⬠incl. VAT
For vehicles with a right drive shaft diameter of more than 42 mm, the maximum lowering tested (German technical inspection association) is reduced by 15 mm
Applications:
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.8 / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.8 T / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.8 T / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 131 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 150 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 163 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 180 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 182 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 190 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 150 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 163 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 180 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 182 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 190 HK) Karosstyp: Cabriolet / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.4 16V / 75 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.6 16 V / 105 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 20V / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 20V T / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 T Cupra R / 209 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 T Cupra R / 224 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 SDI / 68 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 131 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (2.8 / 204 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.4 16V / 75 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 16V / 105 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 FSI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 / 173 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 T / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 T GTI / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 SDI / 68 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 116 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 131 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.0 / 116 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.3 V5 / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.3 V5 / 170 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.8 VR6 / 177 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.8 VR6 / 200 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.4 / 75 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.8 T / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.8 T / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.9 TDI / 105 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (2.0 / 116 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (2.3 V5 / 170 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (2.5 / 150 HK) Karosstyp: Hatchback / Drivning: 2WD

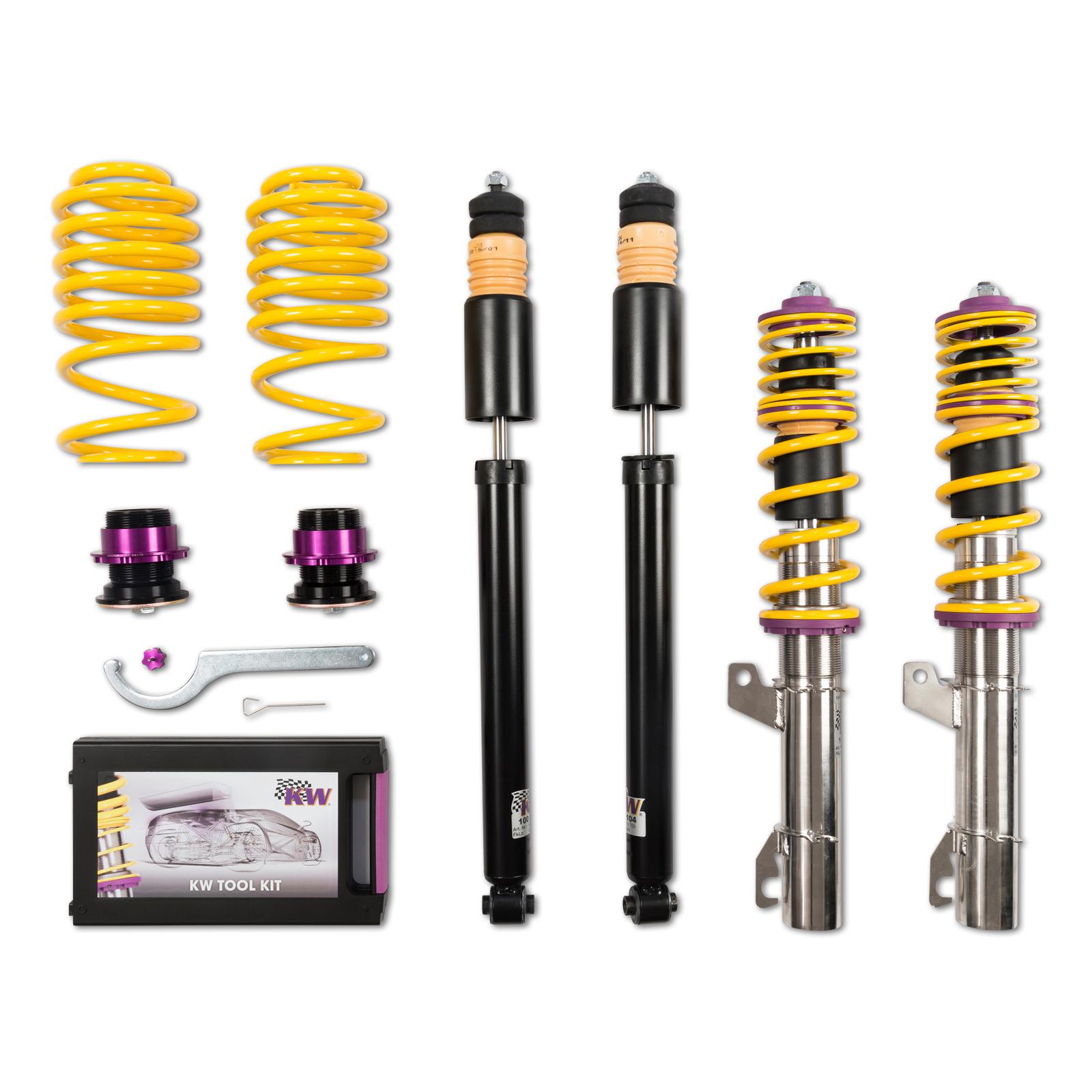

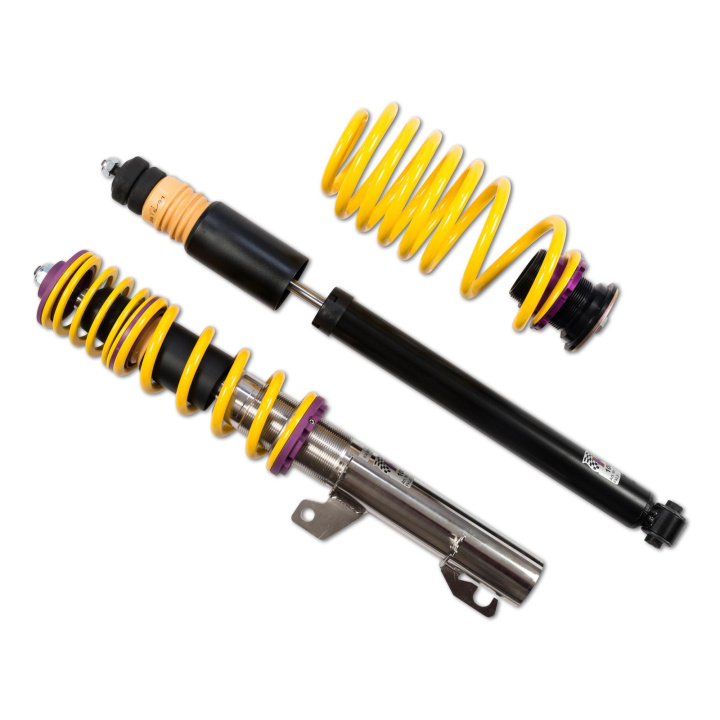

The KW coilover kit Variant 1 inox-line is our entry model for more driving pleasure with an attractive and individually adjustable lowering. Due to its high-quality finish, the use of struts made from stainless steel, corrosion resistant springs and bump stops as well as compatible components stands for long driving pleasure - not just the car''s life.
Continuous lowering

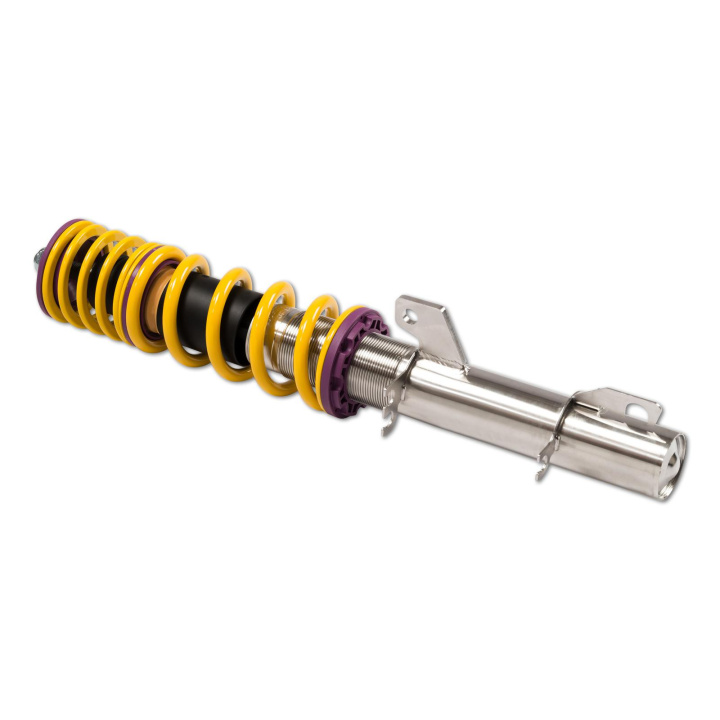

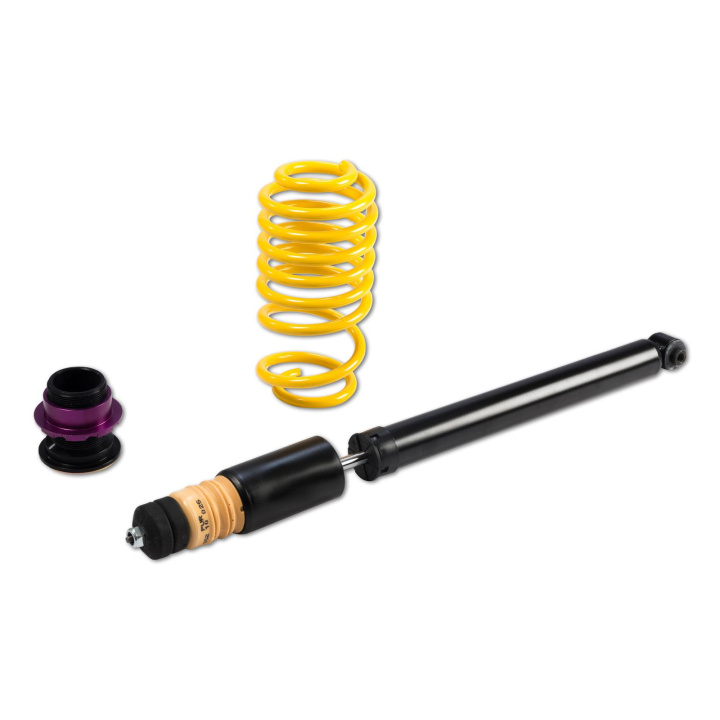

With the KW coilover Variant 1 you can achieve maximum lowering in the tested adjustment range. Depending on vehicle model this varies between 30 to 70mm or 50 to 90mm. Even after years you can adjust the height quickly and easily due to the dirt resistant trapezoid thread and composite collar. Lowering at the front axle is made using our one piece composite height adjuster, on the rear axle this is the same unless the car has a seperate spring and shock absorber. The supplied rear height adjuster sits either above or below the rear spring.
The benchmark for tuning fans
KW coilover Variant 1 inox-line satisfies the sporty driver with its harmonic basic setup. Our engineers develop for each vehicle a specific damper setup and spring rate to increase the driving pleasure with optimal balance of sportiness and practicality. In the end, you don''t buy any coilover, but a KW coilover which has been developed specifically for your type of vehicle. KW as a manufacturer uses only its own resources, high quality components and the same damper technology as high-volume manufacturers. With the KW coilovers Variant 1 inox-line, rolling motions of the body will be reduced during compression and you benefit from genuine directness and sportier handling while driving.
Trust In Our Experience
We are the market leader and innovator of individual suspension solutions for road and racetrack for more than 15 years. No matter where in the world, car driver, automotive manufacturers and tuners rely on our KW coilovers Made in Germany. Each KW coilover kit, developed and manufactured in the Swabian town Fichtenberg, is subject to extensive stress tests during production to meet the high standards of our KW quality management. Of course, we give as a German manufacturer a 2-year warranty on our more than 4600 applications suspension solutions, which exceed OEM quality. The warranty will increase up to 5 years when the kit has been installed at one of our KW specialist dealers.
- Optimally pre-adjusted
- Sporty and comfortable dampening technology
- Stainless steel technology inox-line
- Individually height adjustable
- tested adjustment range
- Ready to install complete solution
- High quality components for a long durability
- Complete documentation for easy handling
Setup - Factory pre-configured damping setup
The KW coilover Variant 1 inox-line has a vehicle-specific, fixed configured damper setup. The spring and damper match perfectly, so that you will experience an optimized balance of sportiness and comfort while driving.
Even with full load and maximum axle loads, the dampers always work with a sporty characteristic. Tuning fans whose focus are Show & Shine events are interested in the KW Variant 1 inox-line.
