ST Suspensions XTA 18210805
Note:
Not for station wagon models (Estate/ Avant/ Turnier/ Variant/ T-modell...).
Excluding four wheel drive models.
In combination with original wheels and tyres, wheelspacers might be necessary.
We recommend a special anti roll bar kit (part no. 68550008) for models with a drive shaft diameter of min. 50mm. This is for improving the clearance of the right hand side drive shaft. Because of car specific differences a clearance is not always given.
Please replace the anti-sway bar kit on max. tested lowering. This is for enough clearance of the right drive shaft. Anti-sway bar kit for cars without Xenon headlights: part no. 68550000. Anti-sway bar kit for cars with Xenon headlights: part no. 68550005.
Only for vehicles with ESP-system.
Fits:
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.8 / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.8 T / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.8 T / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 131 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI A3 (8L) 8L1 09/1996-09/2006 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 150 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 163 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 180 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 182 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT (8N) 8N3 10/1998-06/2006 (1.8 T / 190 HK) Karosstyp: Coupé / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 150 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 163 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 180 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 182 HK) Karosstyp: Cabriolet / Drivning: 2WD
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 (1.8 T / 190 HK) Karosstyp: Cabriolet / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.4 16V / 75 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.6 16 V / 105 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 20V / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 20V T / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 T Cupra R / 209 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.8 T Cupra R / 224 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 SDI / 68 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 131 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
SEAT LEON (1M1) 11/1999-06/2006 (2.8 / 204 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.4 16V / 75 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 16V / 105 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.6 FSI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 / 125 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 / 173 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 T / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.8 T GTI / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 SDI / 68 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 110 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 116 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 131 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.0 / 116 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.3 V5 / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.3 V5 / 170 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.8 VR6 / 177 HK) Karosstyp: Hatchback / Drivning: 2WD
VW GOLF IV (1J_) 08/1997-12/2007 (2.8 VR6 / 200 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.4 / 75 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.6 / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.6 / 102 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.8 T / 150 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.8 T / 180 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.9 TDI / 101 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.9 TDI / 105 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (1.9 TDI / 90 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (2.0 / 116 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (2.3 V5 / 170 HK) Karosstyp: Hatchback / Drivning: 2WD
VW NEW BEETLE (9C_. 1C1) 01/1998-11/2010 (2.5 / 150 HK) Karosstyp: Hatchback / Drivning: 2WD

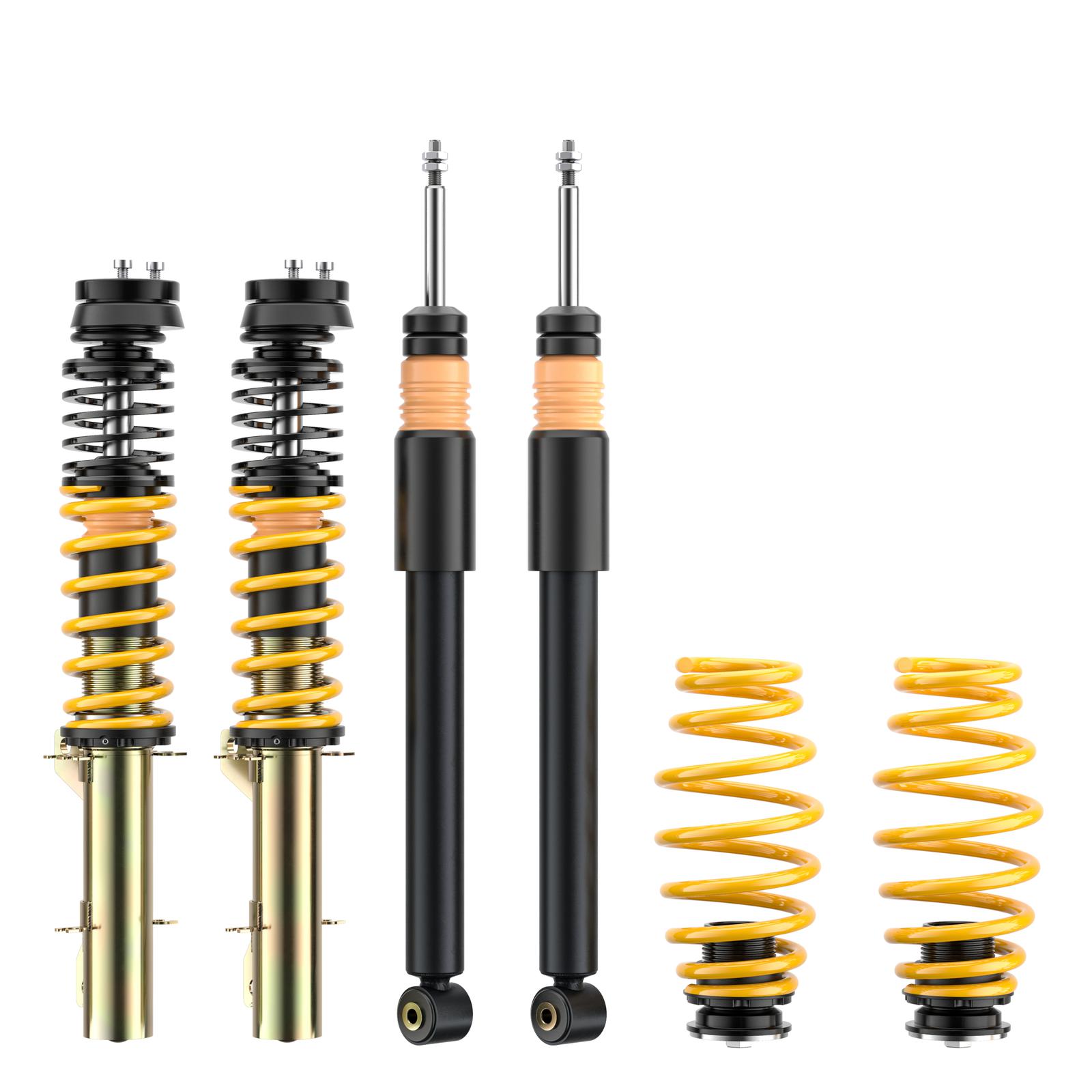

For those who demand the absolute best performance comes the ST XTA coilover. The full driving behaviour of your car can be adjusted using KW damper technology along with an adjustable aluminium uniball top mount for fine-tuning of the camber and caster!
ST XTA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. For increased performance, the ST XTA features an aluminium adjustable topmount allowing the camber and caster to be adjusted depending on your driving needs or vehicle setup.
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower!
NOTE: The lowering of each vehicle differs greatly with ST XTA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XTA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.
The high-quality ST XTA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, race spring system and bumpers with dust protection
- Aluminium adjustable uniball top mounts (when possible)
-vScaled camber adjustment (optionally also caster)
- Externally adjustable damping
ST Suspensions - Make it yours!
From now on you can customize your ST suspensions coilover kit and adapt it to your individual needs. For example you can select your favorite spring colour out of many options or add an additional marking on the springs. Create your individual spring with an additional spring marking of up to 25 letters which will be printed on a separate winding below the tüv marking. (A-Z and whitespaces is allowed).
