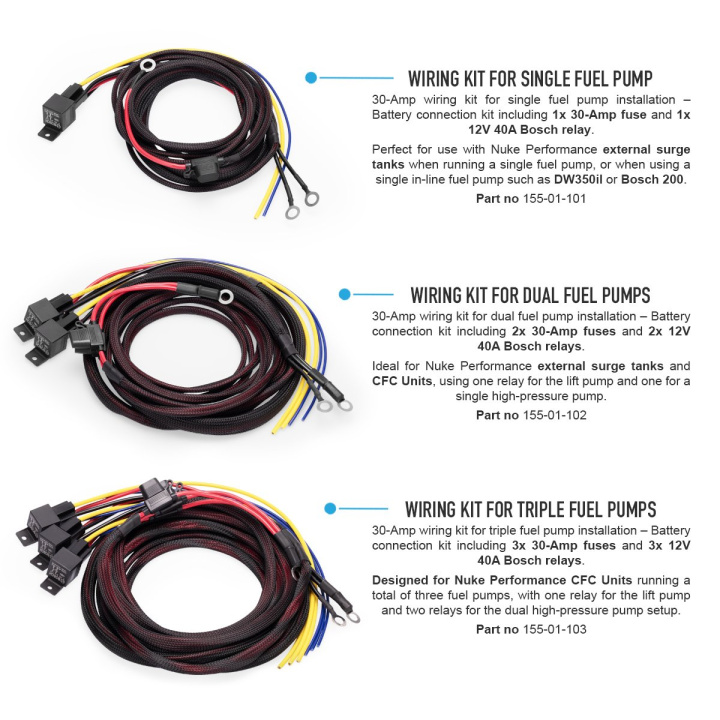

Nuke Performance fuel pump wiring kit for single fuel pump installations. 30-Amp kit for battery connection.
Complete high-quality wiring kit for a single fuel pump installation – perfect for both in-line and in-tank pump setups and delivered with genuine Bosch 12V40A relay.
• Single fuel pump installation, in-line or in-tank
• 30-Amp MIDI fuse included, for fuel pump protection
• Genuine Bosch 12V 40A relay for proven performance
• Perfect match for fuel surge tanks and fuel cell units
The Nuke Performance Wiring Kit for Single Fuel Pump, 30-Amp, Battery Connection is designed to deliver reliable, consistent power to your fuel pump, ensuring optimal performance and durability. Built to the same high standards as all Nuke Performance products, this kit includes only premium components for a safe, efficient, and long-lasting installation.
• Download technical documentation (.pdf)
• Ideal for in-line fuel pumps such as Bosch 200 and Deatschwerks DW250il / DW350il.
The single fuel pump kit is ideal for external in-line fuel pumps, such as the Bosch 200, Bosch 044, Deatschwerks DW250il, and DW350il. It can also be used to wire a single fuel pump in one of Nuke Performance's external fuel surge tanks. It can also be used as a wire kit for the lift pump of the Nuke Performance CFC Units.
• Premium components for maximum reliability and performance.

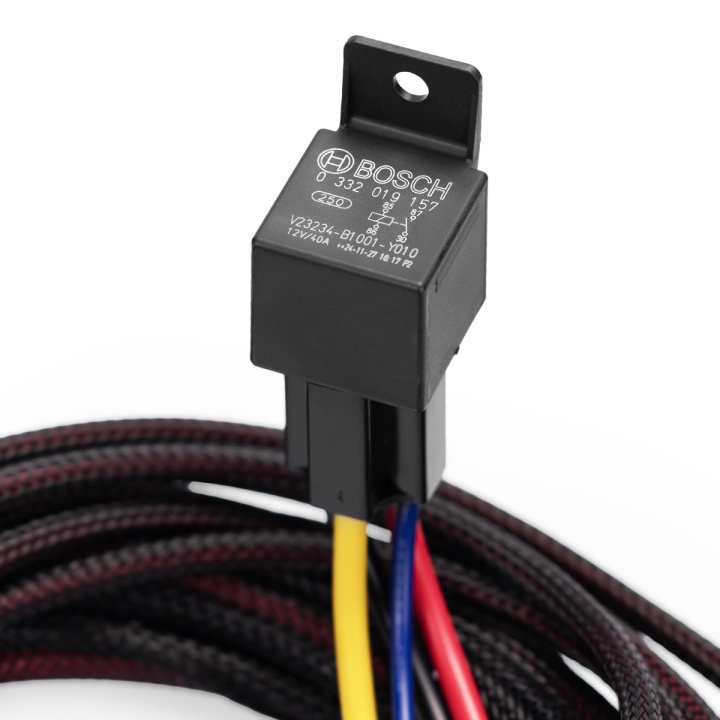

This kit features high-quality automotive-grade cables, a genuine Bosch 12V 40A relay (0 332 019 157) with integrated bracket, and a 30-Amp MIDI fuse for optimal current handling and protection. Additional nylon braiding and extra heat-shrink tubing are included, allowing you to achieve a professional, clean, and durable installation.
Whether you’re building a professional motorsport fuel system or upgrading your street car, the Nuke Performance Wiring Kit ensures your fuel pump gets the consistent, high-quality power delivery it needs to perform at its best.
• Wiring Kit For Single Fuel Pump, 30-Amp, Battery Connection Specifications:
For more information about specifications, view the product manual.
| Number of fuel pumps | Single fuel pump use |
| Fuse used | 30A MIDI fuse (included) |
| Relay used | Bosch 0 332 019 157 / 0332019157 (included) |
| Total length | 5250mm (17.25ft) |
| Connection | Battery connection |
| Braiding | YES, nylon braiding |
| CFC Unit compatibility | YES, for single fuel pump installation * |
| For motorsports use | YES |
| Part number | 155-01-101 |
| EAN | 7340209509847 |
• Bosch 12V40A Relay Specifications:
For more information about the relay specification, view the product manual.

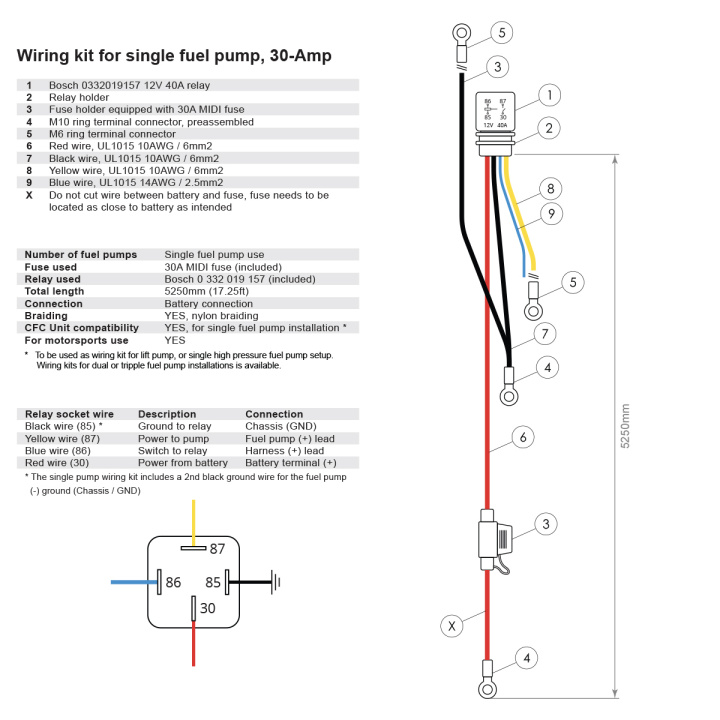

| Relay socket wire | Description | Connection |
| Black 10AWG wire (85) * | Ground to relay | Chassis (GND) |
| Yellow 10AWG wire (87) | Power to pump | Fuel pump (+) lead |
| Blue 14AWG wire (86) | Switch to relay | Harness (+) lead |
| Red 10AWG wire (30) | Power from battery | Battery terminal (+) |
* The single pump wiring kit includes a 2nd black ground wire for the fuel pump (-) ground (Chassis / GND)
• Download User Manual (.pdf)
• Fuel pumps (in-tank / in-line)

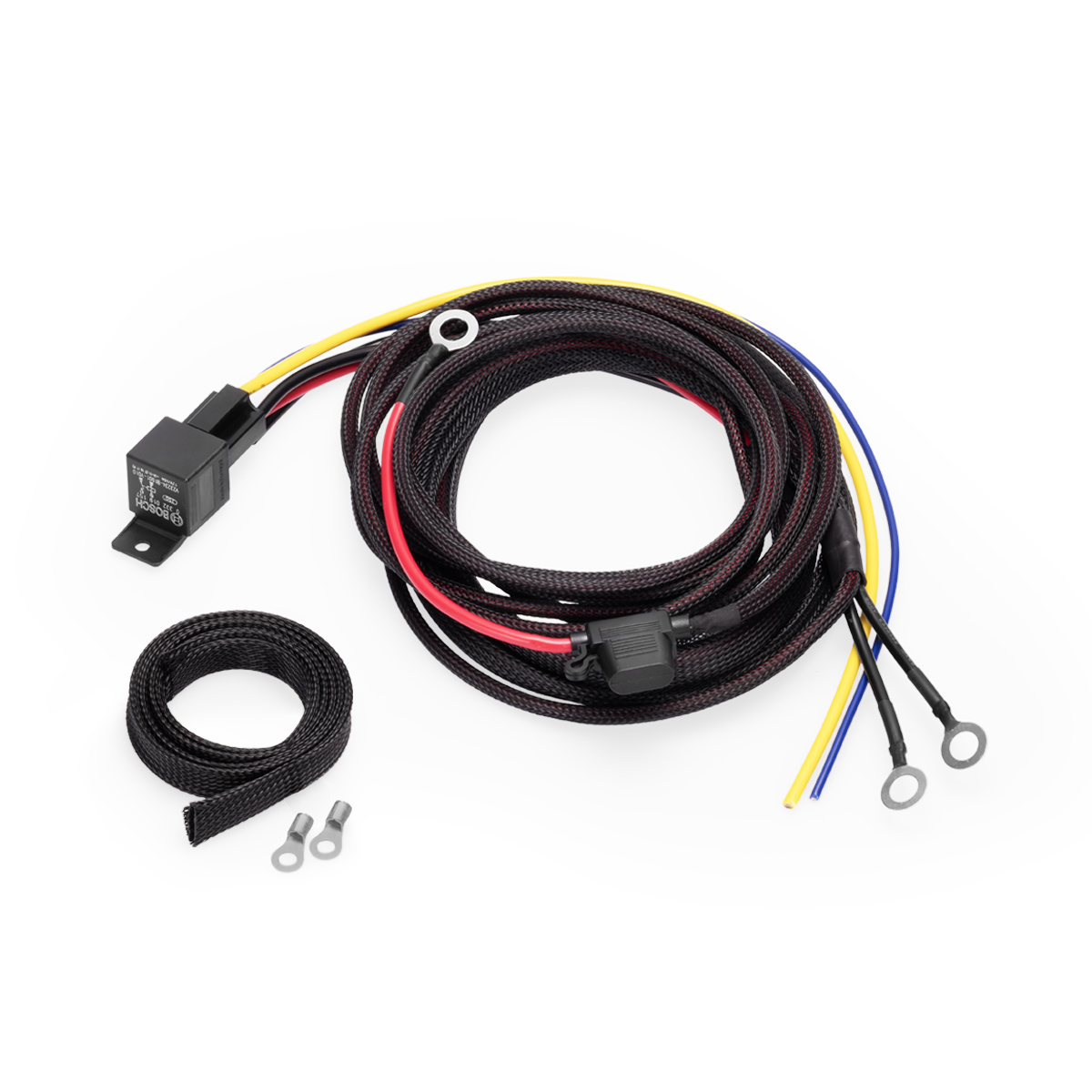

• Wiring Kit For Single Fuel Pump, 30-Amp, Battery Connection Includes:
1 x Bosch 0332019157 (0 332 019 157) 12V 40A Relay
1 x 30-Amp MIDI fuse
2 x M10 ring terminal connector (preassembled)
2 x M6 ring terminal connector
1 x 1m extra nylon braiding
2 x Heat shrink sleeve for nylon braiding
