30-2013 - Temperature Sensor Kit
- Accuracy: < 1.5°C / 2.7°F
- Operating Temp: -20C to 150C / -4F to 302F
- Resistive Range (Ω): See Instructions
- Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
- Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
- Sensor Body Material: Brass
- Thread: 1/8"" NPT
- Hex Size: 1/2""
- Installation Torque: 13.5Nm / 10 ft-lbs
- Weight: 10g
- Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

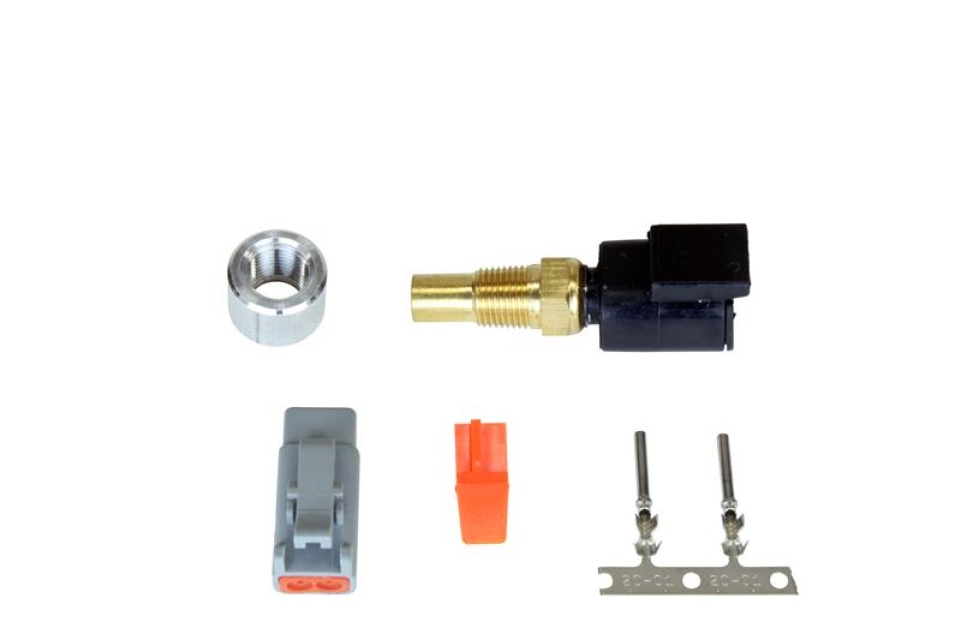

- Includes: Water Temp Sensor High Performance DTM-Style, 1/8"" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
