Horsepower
+
Newton meter
Eagle Rods

VW VR6 H-Beam connecting rod Eagle

Article nr:
CRS6457V13D-1
|
(0 reviews)
Each
212 EUR
Delivery:  Out of stock
Warehouse stock:  0
Stock: 0

Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description

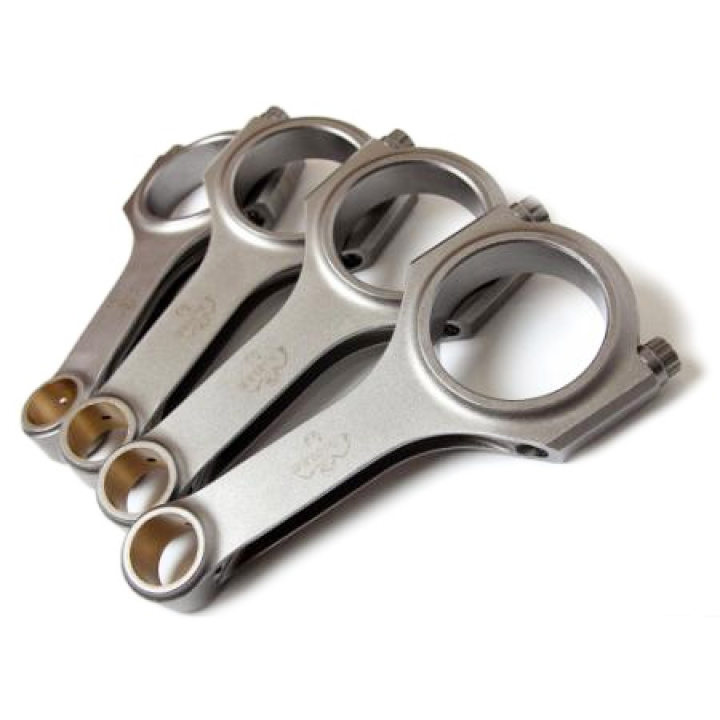

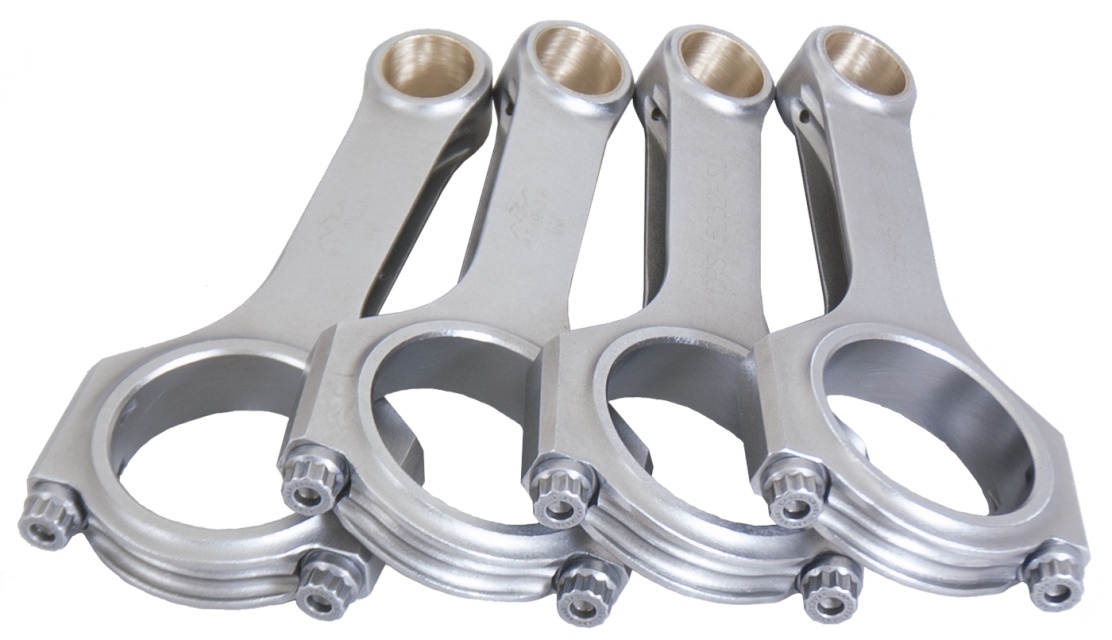

  • All Eagle H-beam rods are forged from certified 4340 chromoly steel. While a lot of companies make rods from this material, if you pay close attention, you will notice not all 4340 is the same. For instance, to be classified as "4340 steel" certain alloying elements must be present in certain percentages. AISI/SAE specifications call for 1.65% to 2.00% nickel content. While this seems like a small difference, understand that this is almost an 18% variation. 4340 steel with 1.65% nickel will act a little differently than 4340 steel with 2.00% nickel content. This is just one of many alloying elements involved in creating 4340 steel. Through extensive material testing, Eagle works closely with the foundry we use to achieve a much tighter tolerance of all alloying elements to our specific requirements. Along with this, the heat treatment and tempering process used is vital to producing a stong steel. While exactly what we do is a closely guarded secret, all of this attention to detail results in a stronger and much more consistent material. Our "4340" steel routinely tests 10-15% stronger than "typical" SAE/AISI spec 4340 steel.Another important design feature is all Eagle H-beam rods are manufactured from a 2 piece forging. This is significant because it enhances the strength of the rod cap by orienting the "grain" of the metal with the direction of stress. The stress exerted on the cap is perpendicular to the stress on the beam

    Product video

    Technical specification

    Article nr:
    CRS6457V13D-1
    Manufacture Partnumber: CRS6457V13D-1
    Material: Forged 4340 Steel
    Big End Bore: 2.237"
    Big End Width: 0.784"
    Bushed for full-floating piston pin: Yes
    Center-To-Center Length: 6.457"
    Pin End Width: 0.784"
    Rod Bolts: 5/16" ARP 2000
    Rod Journal Diameter: 2.125"
    Wrist Pin Diameter: 0.787"
  • Suitable for
  • VW VR6
  • Brand
  • Eagle Rods Eagle Specialty Products, Inc was founded in 1992 and since the beginning has had the goal of delivering connecting rods and crankshafts to you as a customer, quickly and in the highest quality. With good inventory, Eagle can process orders directly and deliver worldwide in a short time.

    Eagle's forged H-profile rods hardly need any explanation in the market anymore. They have been around for a long time now and are in many high performance engines. But even if they can handle high power, the price tag is not as high as that of many other manufacturers. They are made of 4340 steel, which can withstand high stresses, while at the same time weighing much less than what the original rods do. This makes them perfect for your started project.
  • Accessories & Spare Parts
  • Guarantee
  • Reviews:
  • To leave a review, you should have previously purchased this product and to your customer profile.
