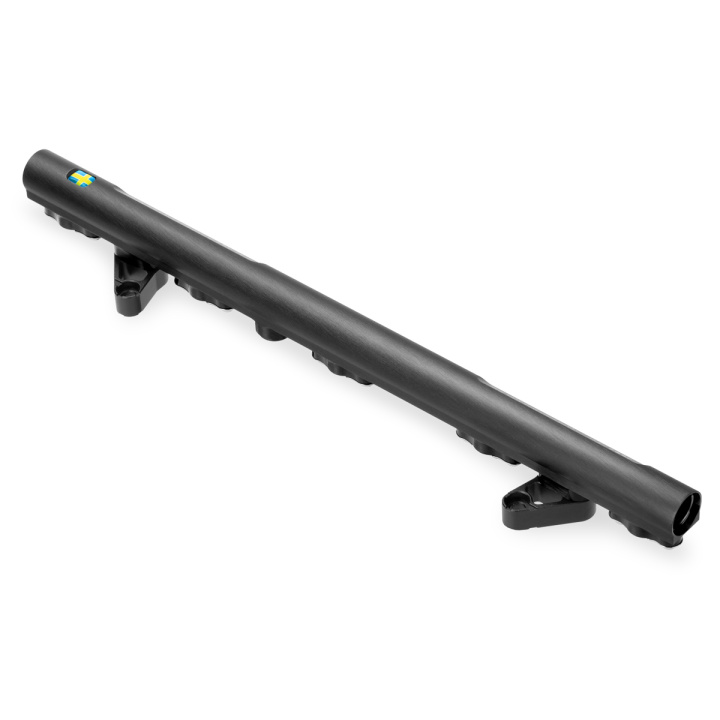

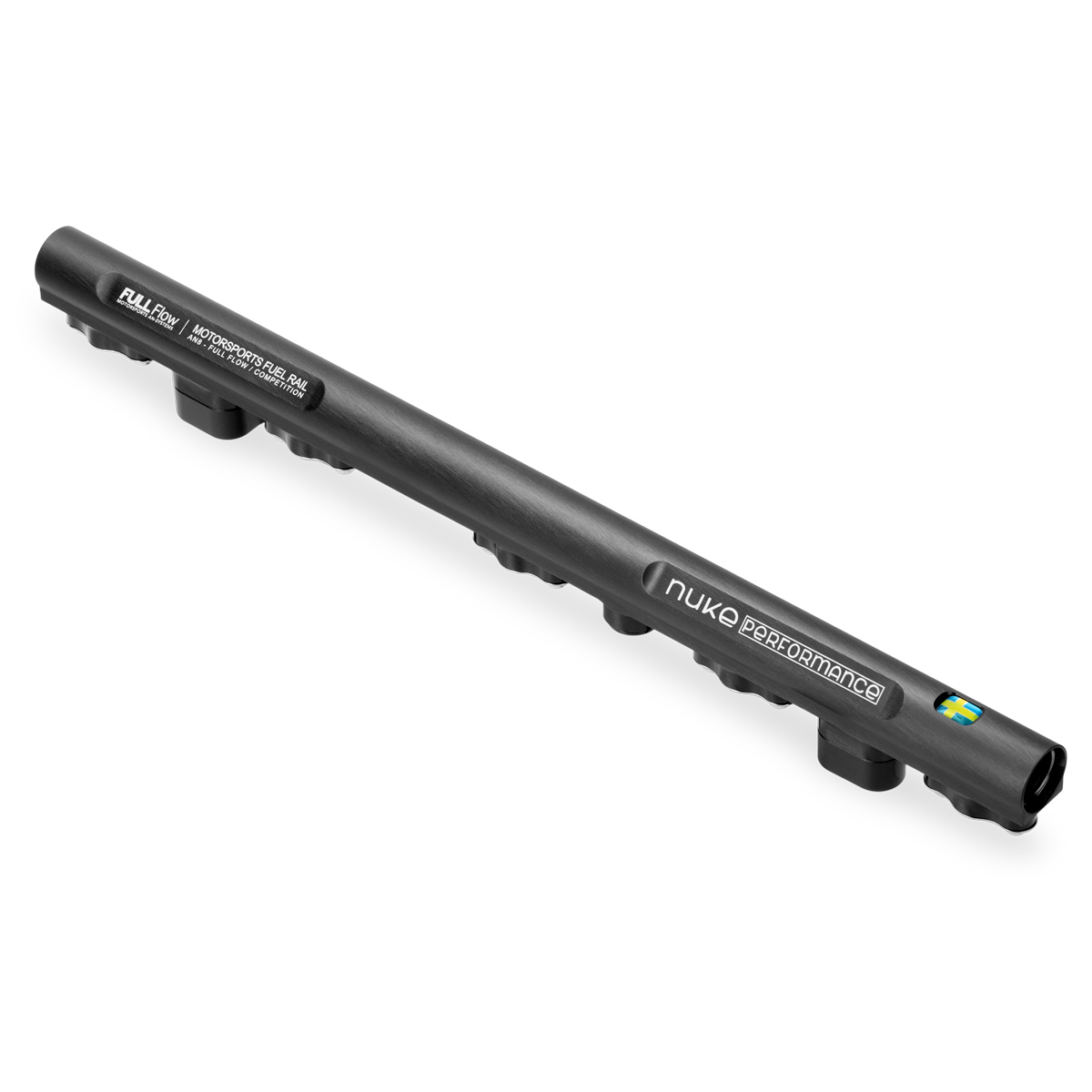

Nuke Performance fuel rail for the Volkswagen 5cyl 2.5L 07K engine, oversized internals, lightweight design, and equipped with our unique injector safety clips.
The Volkswagen 5cyl 2.5L 07K fuel rail is delivered with brackets for the 2.5L 5-cylinder 07K engines found in different Volkswagen models between 1998 and 2015. It allows you to use AN fuel lines and aftermarket injectors for your 2.5L Volkswagen engine.
• Lightweight fuel rail that fits VW 5cyl 2.5L 07K engines
• To be used with Bosch EV14Sxt type injectors
• AN-8 ORB threads in both ends enable a high fuel flow
• Delivered with brackets for easy mounting to the OEM intakes
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuels, including alcoholic fuels such as E85
The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grant a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

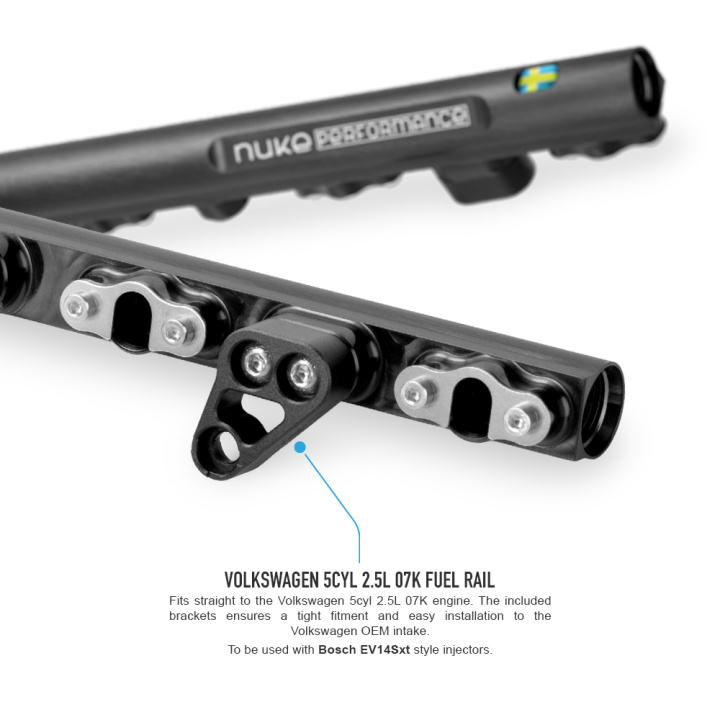

• Perfect fitment for the Volkswagen 5cyl 2.5L 07K intake manifolds. Delivered with the needed hardware to mount to the intake.
The Nuke Performance Volkswagen 5cyl 2.5L 07K fuel rail is delivered with brackets for the 2.5L 07K engine intakes.
• Volkswagen Golf MK6 2.5L 2010-2014
• Volkswagen Rabbit MK5 2.5L 2006-2009
• Volkswagen Jetta MK5 2.5L 2006-2010
• Volkswagen Jetta MK6 2.5L 2010-2014
• Volkswagen Beetle (1C - 9C - 1Y) 2.5L 1998-2011
• Volkswagen Beetle MK2 2.5L 2011-2015
The Nuke Performance Volkswagen 5cyl 2.5L 07K fuel rail fits all OEM intakes above and should also fit aftermarket ones built to OEM specifications.
• AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer various fittings and our low-profile full-flow banjo fittings for a space-efficient installation.
• AN-8 ORB main ports and AN-6 ORB side port
The fuel rail is delivered with an AN-6 ORB Plug for the side ports, but the main port fittings are sold as accessories.
AN-8 ORB to AN-6 Male Part # : 700-04-104
AN-8 ORB to AN-8 Male Part # : 700-04-105
AN-8 ORB to AN-10 Male Part # : 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
AN-8 ORB Plug Part # : 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129

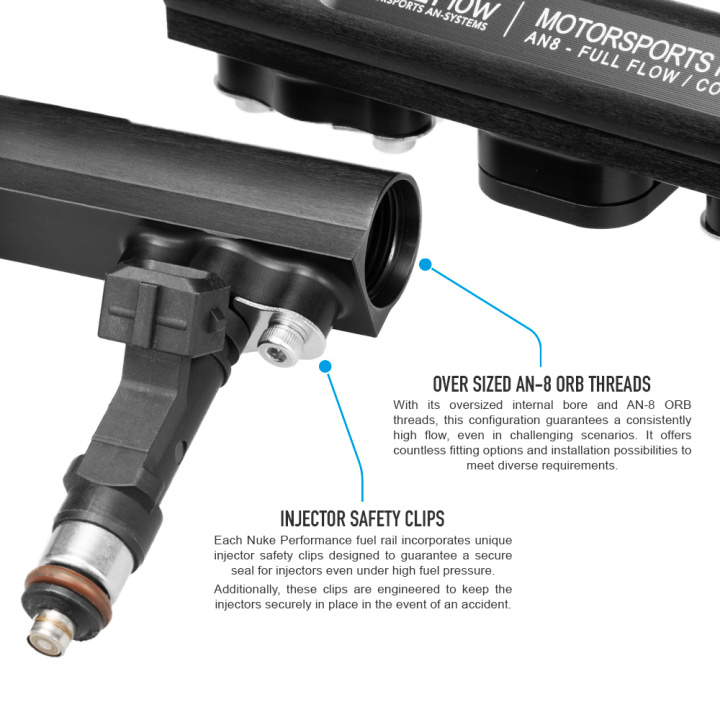

• All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.
• Ensures a safe and secure seal even during extreme fuel demands
Whether during assembly, engine installation, or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.
• Designed and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Volkswagen 5cyl 2.5L 07K fuel rail is of the highest possible quality and has the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams, making sure that functionality, as well as the design, meets the absolute highest standards, or even sets its own standard.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
There is no substitute for the quality of Nuke Performance.
• Nuke Performance Volkswagen 5cyl 2.5L 07K fuel rail Specifications:
For more information about specifications, view the product sheet.
| Delivered with brackets for | Golf MK6 2.5L 2010-2014Rabbit MK5 2.5L 2006-2009Jetta MK5 2.5L 2006-2010Jetta MK6 2.5L 2010-2014Beetle (1C - 9C - 1Y) 2.5L 1998-2011Beetle MK2 2.5L 2011-2015 |
| Injector type specification | Bosch EV14 S xt style |
| End inlet/outlet threads | AN-8 ORB (view assortment) * |
| Additional port thread | AN-6 ORB (view assortment) * |
| Length | 397.00mm (15.63") |
| Height | 32.00mm (1.25") |
| Weight | 344.00g (12.13oz) |
| Fuel compatibility | Petrol, Gasoline, Ethanol, E85, E100, Methanol |
| For motorsports use | YES |
| Part # | 120-09-103 |
| EAN | 7340209509502 |
* not included, make sure to select the needed fittings when placing an order

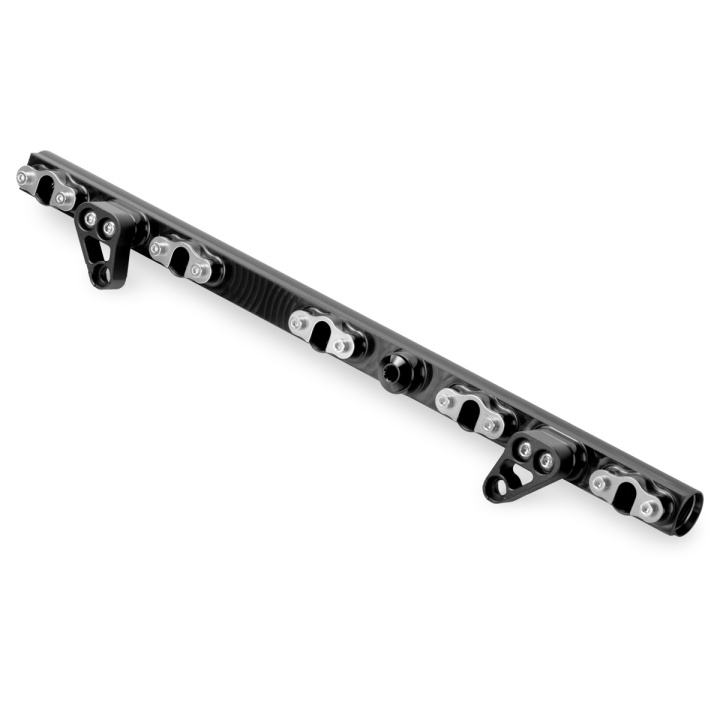

• Nuke Performance Volkswagen 5cyl 2.5L 07K fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for VW 2.5L 5cyl 07K engine
2 x Aluminum brackets for VW 2.5L 5cyl 07K intake
1 x AN-6 ORB Plug
5 x Nuke Performance Injector safety clips
10 x MC6S M4x6mm stainless steel bolts
2 x K6S M6x16mm stainless steel bolts
• Download Product Sheet (.pdf)
• Accessories / Spare Parts
• The fuel rail is delivered without fittings and injectors; these need to be purchased as accessories.
