TY4-XTSS ACT XT/Perf Street Sprung Kit

Name: TY4-XTSS ACT XT/Perf Street Sprung Kit
Brand: ACT Advanced Clutch Technology
SKU: actTY4-XTSS
Price: 910 EUR
Availability: InStock

Article nr:

actTY4-XTSS

Recommended for street and race use. Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle.

910 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TY4-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
Specifications:

Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 9.3 IN
Clutch Disc Diameter: 236 MM
Disc Material: Organic
Input Spline Quantity: 21
Input Shaft Diameter: 1.125 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 14.5
Title: ACT XT/Perf Street Sprung Kit
Torque Capacity (ft/lbs.): 505
Torque Capacity Over OE: 70%

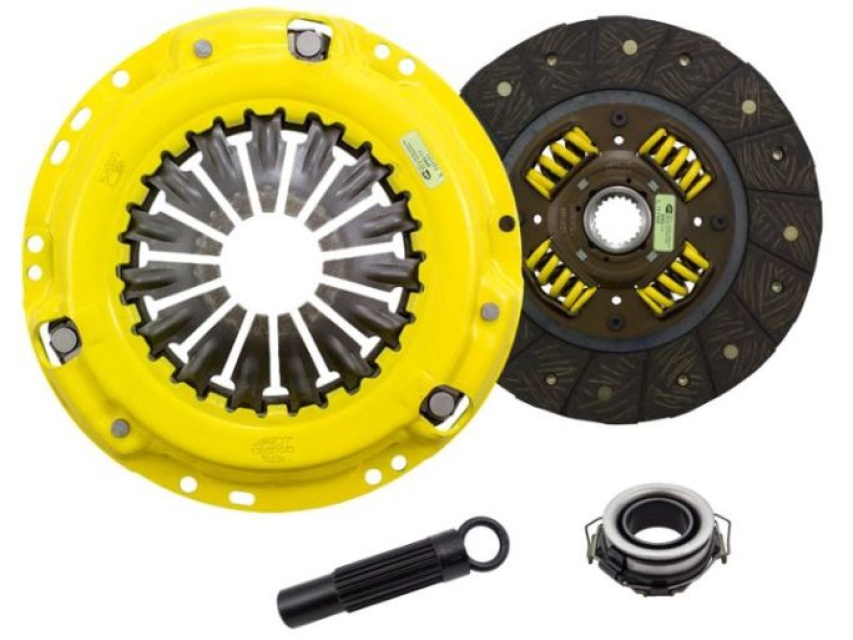

Kit includes:

3000604 ACT Perf Street Sprung Disc
AT71 ACT Alignment Tool
RB446 ACT Release Bearing
T023X ACT Xtreme Pressure Plate

Kitet passar:

Lexus ES300 Base 1992 3.0L V6 2959cc
Lexus ES300 Base 1993 3.0L V6 2959cc
Product video

Technical specification

Article nr:
actTY4-XTSS

Manufacture Partnumber: TY4-XTSS
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
