TS4-XTG6 ACT XT/Race Sprung 6 Pad Kit

Name: TS4-XTG6 ACT XT/Race Sprung 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actTS4-XTG6
Price: 1524 EUR
Availability: InStock

Article nr:

actTS4-XTG6

Recommended for high horsepower street or race use. Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

1524 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TS4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 250 MM
Clutch Disc Diameter: 9.8 IN
Disc Material: Ceramic
Input Spline Quantity: 14
Input Shaft Diameter: 1.25 IN
Part Fitment Requirement: Must be used with ACT flywheel for proper clearance (flywheel not included).
Product Weight (lbs.): 20.2
Title: ACT XT/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 821
Torque Capacity Over OE: 107%

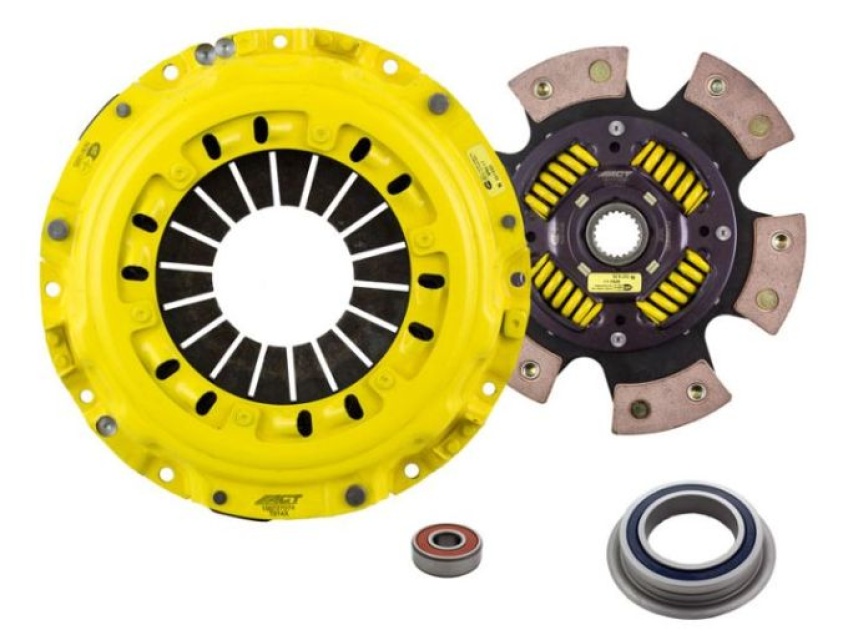

Kit includes:
6250623 ACT 6 Pad Sprung Race Disc
PB1004 ACT Pilot Bearing
RB000 ACT Release Bearing
T014X ACT Xtreme Pressure Plate
Kitet passar:
Toyota Supra MK4 (A80) 1994-1998 3.0L L6 2997cc Turbo 2JZ-GTE
