ACT Advanced Clutch Technology

TS3-XTG6 ACT XT/Race Sprung 6 Pad Kit

Article nr:
actTS3-XTG6
|
(0 reviews)
Recommended for high horsepower street or race use. Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.
953 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock:

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • TS3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

    Specifications:

  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter: 9.3 IN
  • Clutch Disc Diameter: 236 MM
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter: 1.125 IN
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 17.3
  • Title: ACT XT/Race Sprung 6 Pad Kit
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 107%

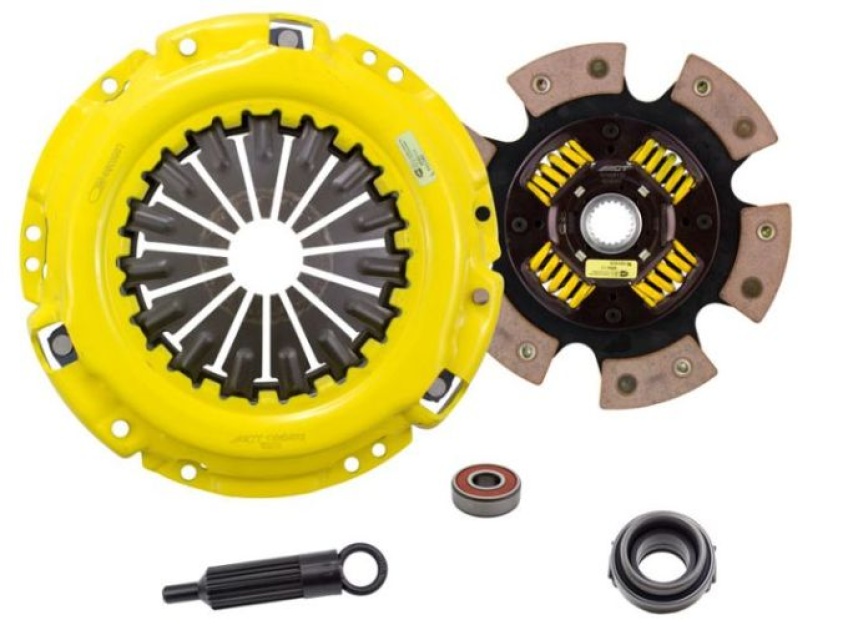

    Kit includes:

    • 6236207 ACT 6 Pad Sprung Race Disc
    • AT11 ACT Alignment Tool
    • PB1004 ACT Pilot Bearing
    • RB443 ACT Release Bearing
    • T021X ACT Xtreme Pressure Plate

    Kitet passar:

    Toyota Supra MK4 (A80) 1994-1998 3.0L L6 2954cc NA 2JZ-GE
    Toyota Supra MK3 (A70) 1988-1993 3.0L L6 2954cc
    Lexus SC300 Base 1992 3.0L L6 2997cc
    Lexus SC300 Base 1993 3.0L L6 2997cc
    Lexus SC300 Base 1994 3.0L L6 2997cc
    Lexus SC300 Base 1995 3.0L L6 2997cc
    Lexus SC300 Base 1996 3.0L L6 2997cc
    Lexus SC300 Base 1997 3.0L L6 2997cc

    • Product video

    Technical specification

    Article nr:
    actTS3-XTG6
    Manufacture Partnumber: TS3-XTG6
  • Suitable for
  • Brand
  • ACT Advanced Clutch Technology Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
