The triple fuel pump mounting kit for the CFC Unit and FST enables secure installation of three high-pressure fuel pumps inside the integrated surge tank bucket.
Engineered for motorsport applications where maximum fuel delivery, reliability, and serviceability are critical. When combined with the appropriate fuel pumps, a triple fuel pump setup can support well beyond 1500+ hp on E85 and 2000+ hp on gasoline.
• Designed specifically for CFC Units and single-outlet FSTs
• Enables 2000hp+ installations in a Nuke Performance CFC Unit
• Must be combined with one of our fuel pump mounting hose kits
• Compatible with both 39mm and larger diameter fuel pumps

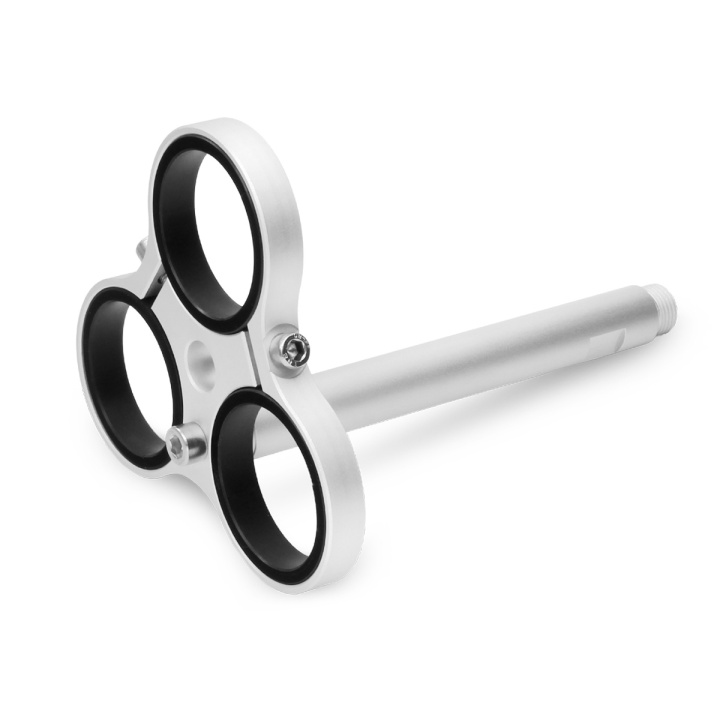

This precision-machined aluminum bracket allows for a triple fuel pump configuration in Nuke Performance CFC Units and single-outlet Fuel Surge Tanks. It is compatible with most common 39 mm outer diameter fuel pumps, including DW200, DW300, GST450, and GST520, and also supports larger diameter pumps such as DW400, DW550, and BR540.
• A triple fuel pump mounting kit is required for CFC Unit and FST installations and is available to suit most of the most common fuel pumps on the market.
To properly route three fuel pumps to the CFC Unit, one of our triple fuel pump mounting kits must be used. Since the CFC Unit and single-outlet FSTs are equipped with only two 1/4" BSPP ports, two of the fuel pumps need to be merged into a single fuel line before reaching the outlet port. This is seamlessly handled by our triple fuel pump mounting kits, available for fuel pumps with either 8 mm or 10 mm barb connections (see compatibility list here).
Triple fuel pump mounting kit, ID8mm Part # : 150-20-105
Triple fuel pump mounting kit, ID10mm Part # : 150-20-106
• Please note: When installing Bosch BR540, DeatschWerks DW400, or DW550 fuel pumps in a triple fuel pump setup, a custom fuel filter solution is required.
The standard filters supplied with Bosch BR540 (* see note below), DeatschWerks DW400, and DW550 fuel pumps are too large for triple pump installations. To ensure proper fitment in Nuke Performance CFC Units and single-outlet FSTs, a compact adapter and matching fuel filter are required. When using any of these fuel pumps, make sure to add the correct adapter and filter to your order.
Pre-filter for Bosch BR540 - CFC / FST installation Part # : 9-900-107 *
Pre-filter for Deatschwerks DW400 - CFC / FST installation Part # : 9-900-108
* Bosch BR540 fuel pumps purchased directly from Nuke Performance are delivered with the correct compact filter pre-installed. The green OEM Bosch filter is not compatible with triple pump setups.

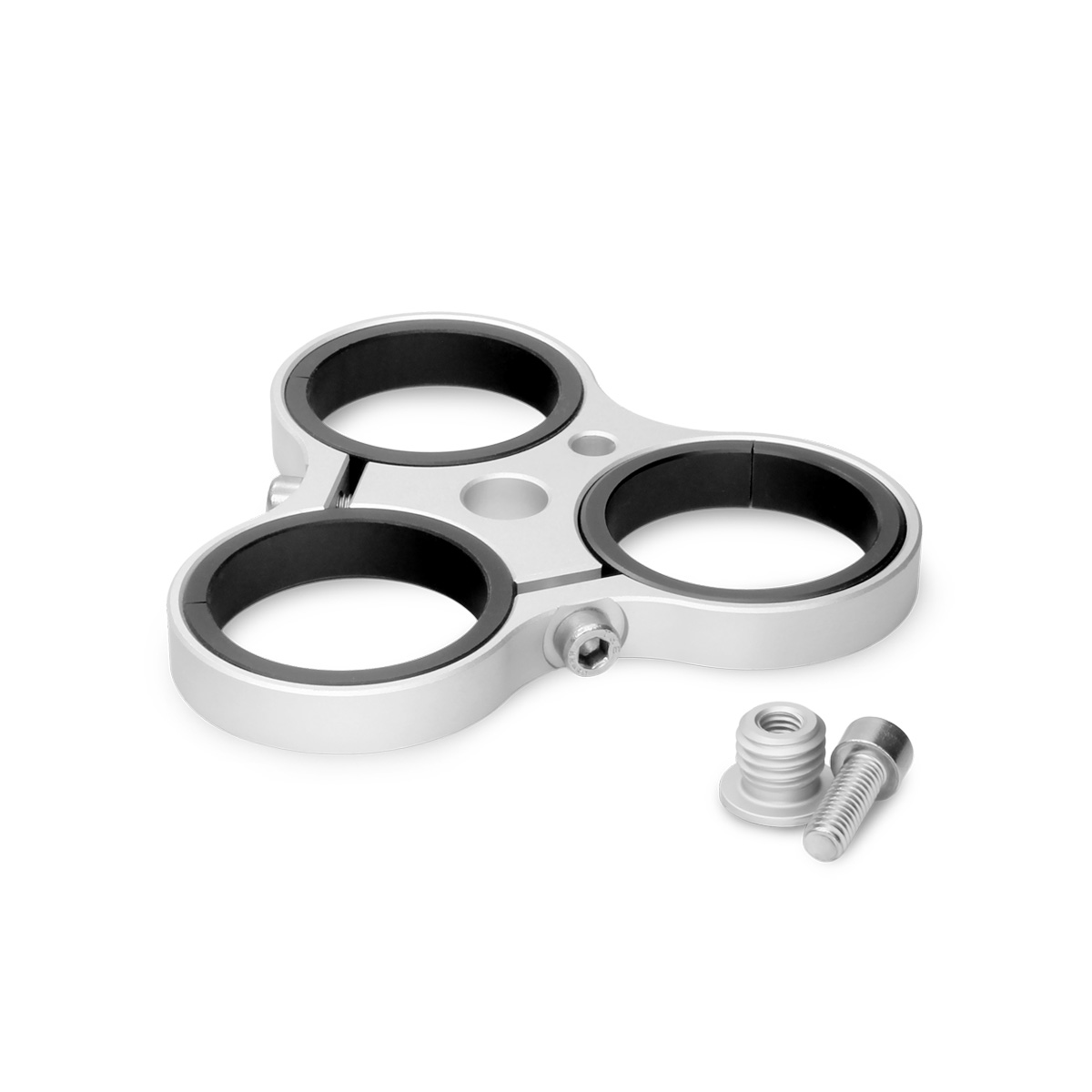

• Triple fuel pump mounting kit for CFC Unit and FST includes:
1 x Aluminum triple fuel pump mounting bracket
3 x Nylon 39 mm fuel pump inserts
1 x Flanged M12 to M6 adapter for mounting pipe
2 x MC6S M5x20 stainless steel bolts
1 x MC6S M6x20 stainless steel bolt
