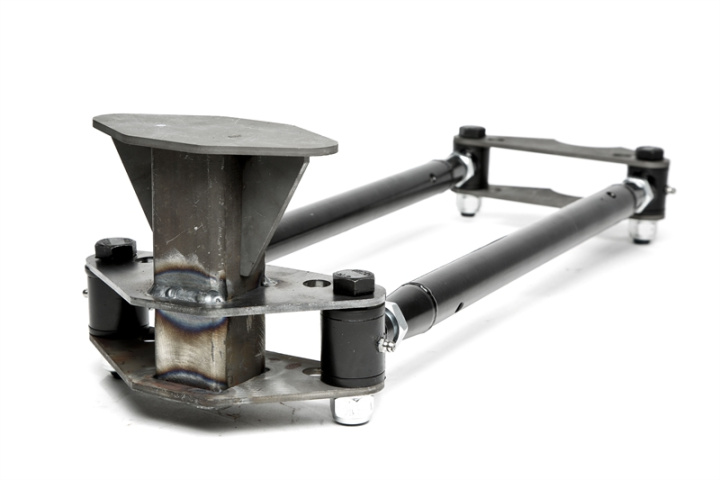

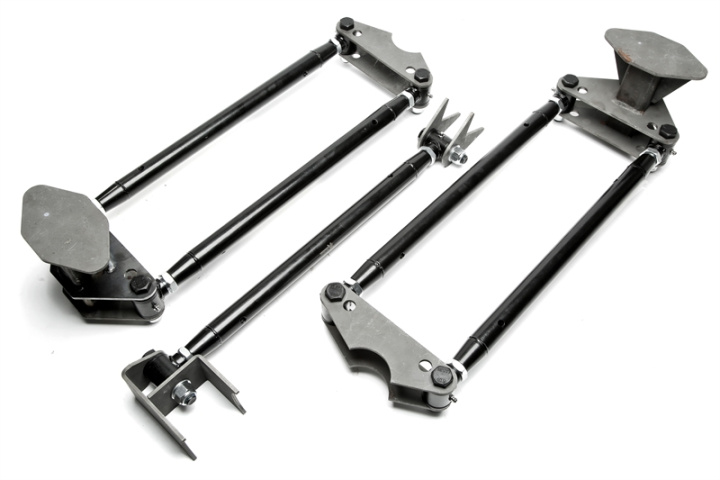

TA Technix universal parallel 4-link kit + Panhard rod kit
Conversion kit for welding

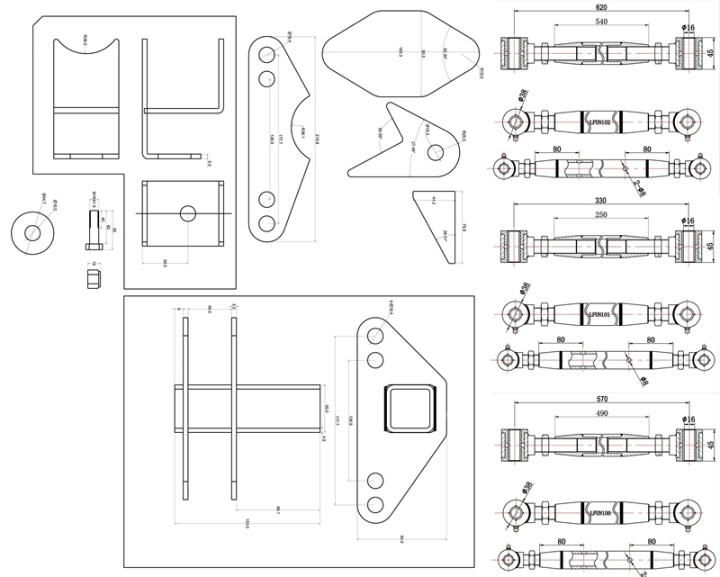

Contents (dimensions, see data sheet):
4 x tie rod LFUN100, 3-piece adjustable
Adjustment lever range: 570-650mm / 38mm eye / PU bushings: M16x45mm
2 x base plate to weld on rhombic - both sides
4 x angle plate for welding on base plate (78,9 x 44,2mm) - both sides
1 x double cross member for welding on (153 x 94mm) - driver's side
1 x double cross member for welding (153 x 94mm) - passenger side
4 x adjustable spacers with 3" recess (215,8mm) - both sides
Maximum length overall with brackets fitted: 760mm

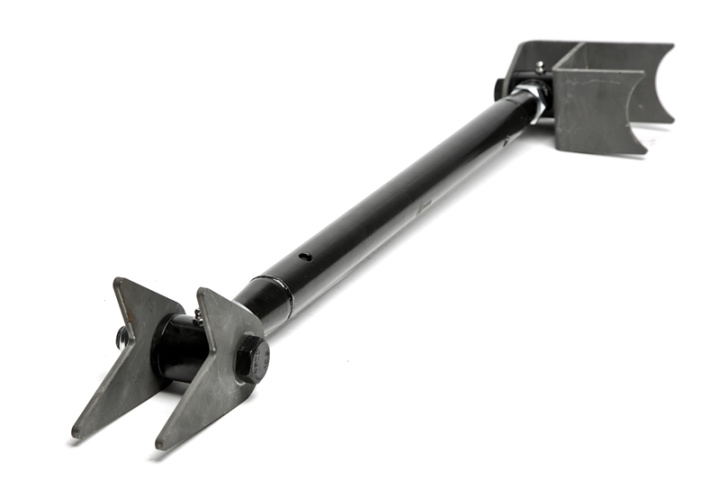

1 x tie bar LFUN102, 3-part adjustable
Adjustable lever range: 620-700mm / 38mm eye / PU bushings: M16x45mm
2 x Angle plate for Panhard bar
1 x U-profile for Panhard bar
maximum length over all with mounted brackets: 835mm
Fastening set
10 x screws M16x1,5x82mm
10 x washer M16
10 x nuts M16x1,5 self-locking
