High flow SAE 7.89 Quick Connect fitting with Viton O-ring. SAE J2044 standard fittings for high flow and maximal functionality and durability. Safe for all fuels, including alcoholic fuels such as ethanol.

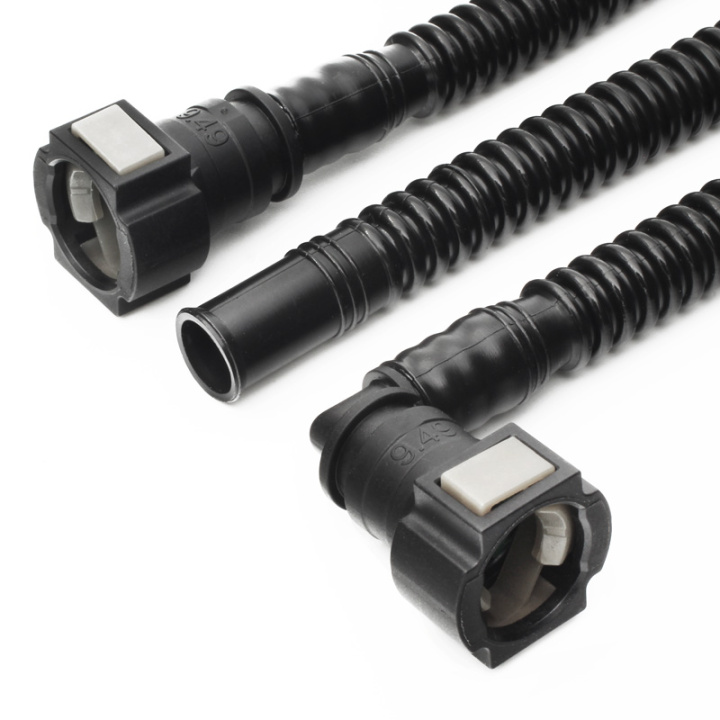

Use together with the in-tank ethanol proof, and pre-assembled fuel hoses. The SAE line-up is a standardized fuel line system, used within motorsports and sports car manufacturers. Enable easy mounting and quick service possibilities thanks to its quick connect fittings.

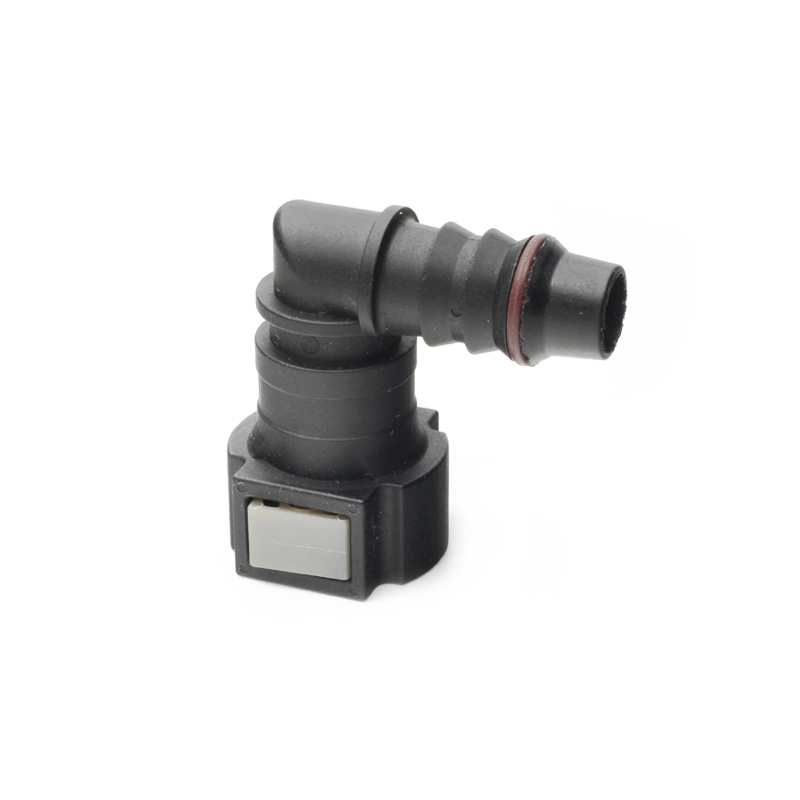

Measurements :
- SAE 7.89 Quik Connect, Female
- Version : 90°
- ID10 fuel hose connection, Sealed Male
Used on Nuke Performance products:
- Fuel Surge Tanks for internal fuel pumps
- CFC Unit, Competition Fuel Cell Unit

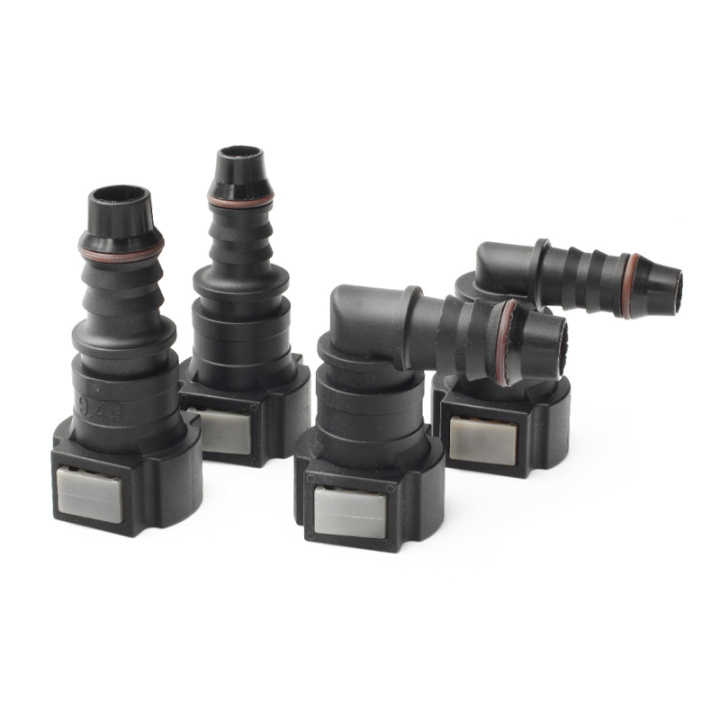

Available in a wide variety of sizes and with different SAE sizes, choose between different sizes when placing order. Available in 90° and 180°(straight) versions and in SAE Ø7.89 and SAE Ø9.49 female fitting.
• Operating temperature range -40°C up to +115°C.
If you wish to change or complement the use of fittings of the highest quality, we recommend that you use our fittings which are designed to withstand high power and excessive wear and in the right combination with the products they were intended for.
Quantity : 1pc
