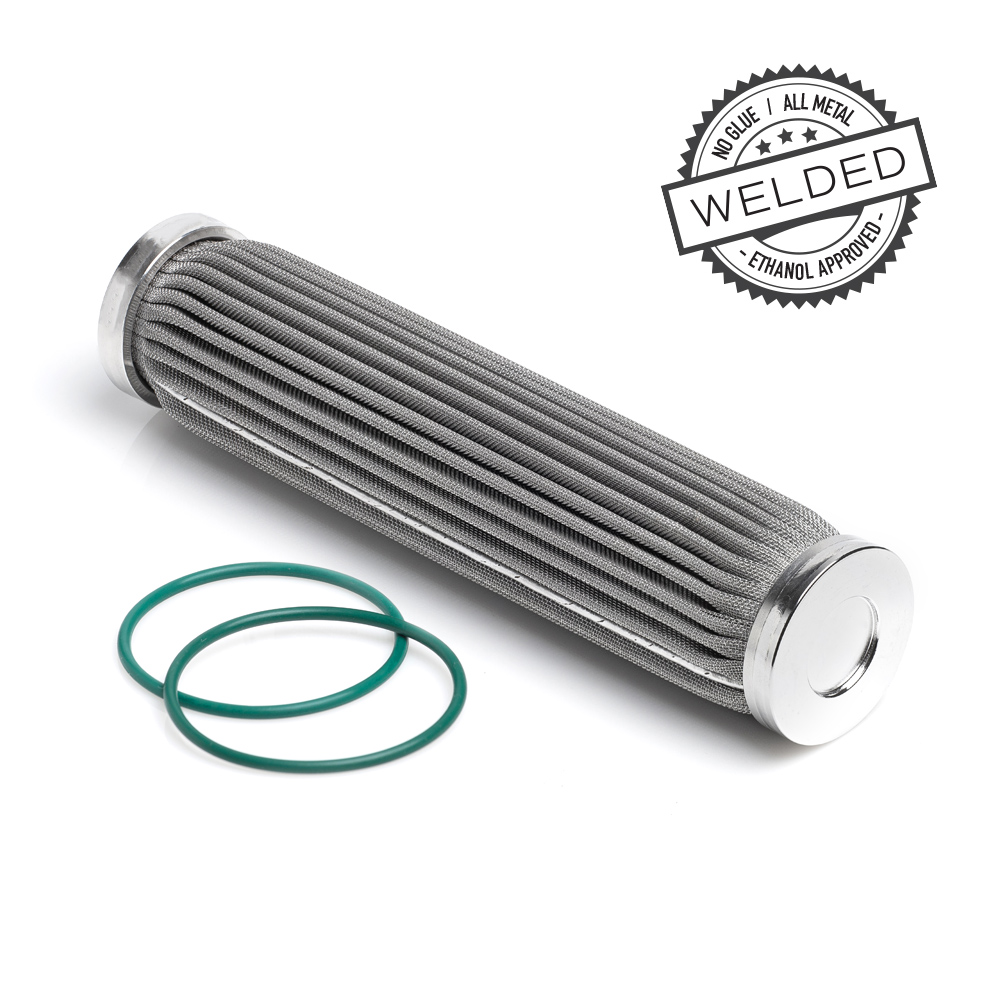

Nuke Performance 200mm replacement filter insert. 10-micron all stainless steel fuel filter for the Nuke Performance PF200 fuel filter.
This new developed high flow fuel filter insert is 100% proof for alcoholic fuels such as ethanol.
• Safe for petrol, methanol and ethanol
• Welded stainless steel filter insert
• 200mm oversized filter element
• High flow, close to no flow loss
• 10-micron Stainless steel filter inserts with welded end caps

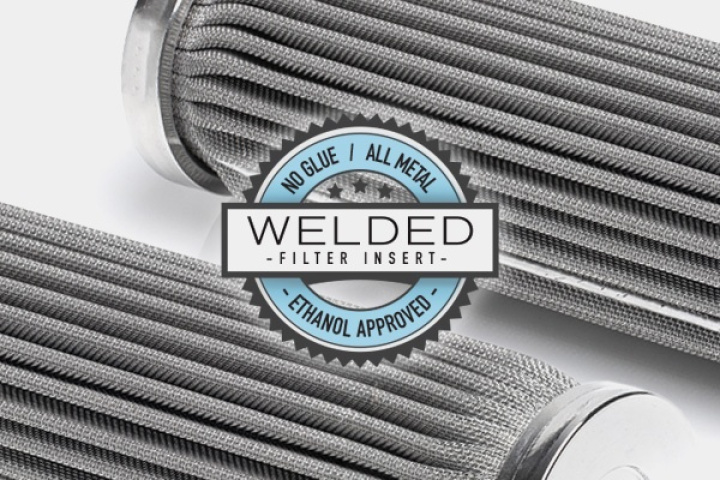

The high-flow 200mm 10 microns stainless steel filter element is now made of 100% stainless steel with unique welded end caps that excludes the common glue that can dissolve when changing from petrol to ethanol or when running aggressive fuels such as race fuel. When running the new upgraded fuel filters from Nuke Performance you do not have to worry about failing filter elements ever again.
Two pc O-ring is included with the filter insert.
We strongly recommend cleaning the internal filter unit once a season, especially when using ethanol due to its dissolving contaminations within the fuel system. If needed, due to heavy contamination you can buy a spare 200mm insert.
O-ring for fuel filter endcaps Part #: 200-10-103
Pin wrench for opening fuel filters Part #: 200-20-101
• 10 Micron PF200 Filter Element - Stainless steel Specifications :
For more information about specifications, contact us directly.
| Filter / Micron | Stainless steel / 10 micron |
| Fuel compatibility | Gasoline, Petrol, Ethanol, Methanol, Diesel |
| Length | 202mm (7.95") |
| Diameter | 42mm (1.65”) |
| Weight | 313g (0.69lb) |
| Filter area | 150 sq. in |
| Work pressure / Max pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Flow capacity | 1800 LPH |
| Pressure drop | ≈0.15 BAR (≈2.17 PSI) |
| Part # | 200-10-104 |
| EAN | 7340209500592 |
• 10 Micron PF200 Filter Element - Stainless steel includes :
1 x 10-micron PF200 Stainless steel filter element
2 x Viton O-ring
